Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | AVENTICS |
| Model | |
| Condition |

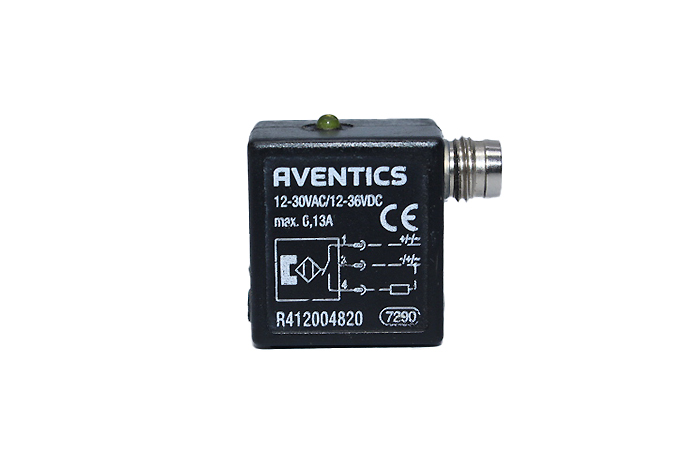

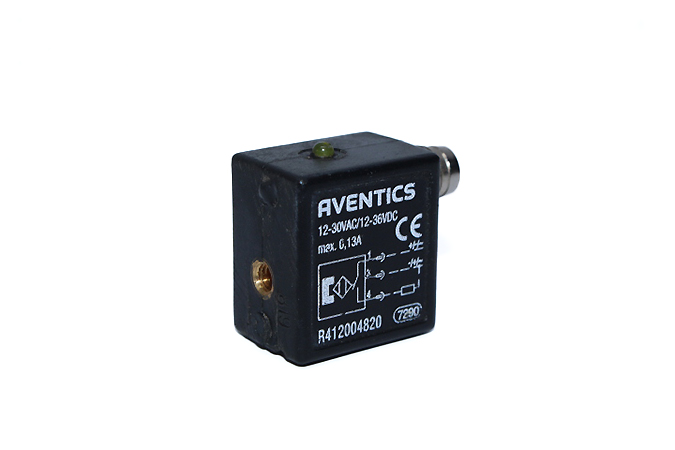

Aventics R412004820 Sensor With Reed Contacts
We are NOT an authorized distributor for AVENTICS
- ManufacturerAVENTICS
- ModelAVENTICS R412004820 SENSOR WITH REED CONTACTS
- SKU051354
58 $
2 in stock
Description
Manufacturer: AVENTICS
Type: SENSOR WITH REED CONTACTS
Model: R412004820
Switching capacity: 10 W / 10 VA
Protection class: IP67
Min. ambient temperature: -20 °C
Max. ambient temperature: 80 °C
Voltage drop UB: at ImaxI*Rs
Protective resistor for reed: 27 Ω
DC switching current, max.: 0.13 A
AC switching current, max. 0.13 A
Switching point precision: ±0,1 mT
LED status display: Yellow

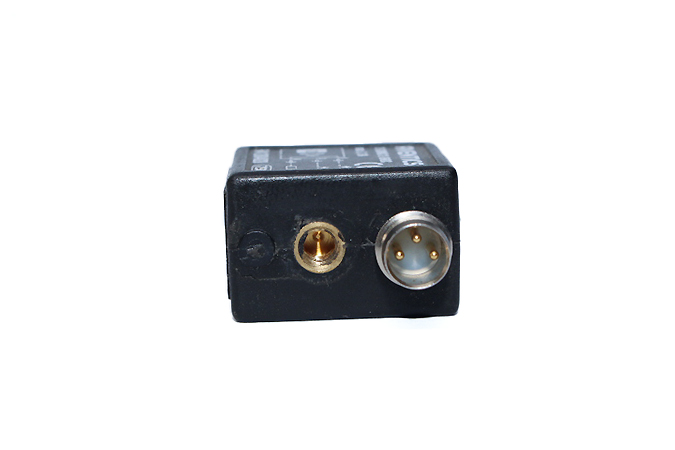

Electrical connection 2, type: M8, Plug
Electrical connection 2, number of poles: 3-pin
Operating voltage DC, min.: 12 V DC
Operating voltage DC, max.: 36 V DC
Operating voltage AC, min.: 12 V AC
Operational voltage AC, max.: 30 V AC
