Specifications
| Weight | 2.550 kg |
|---|---|
| Manufacturer | AVENTICS |
| Model | |
| Condition |

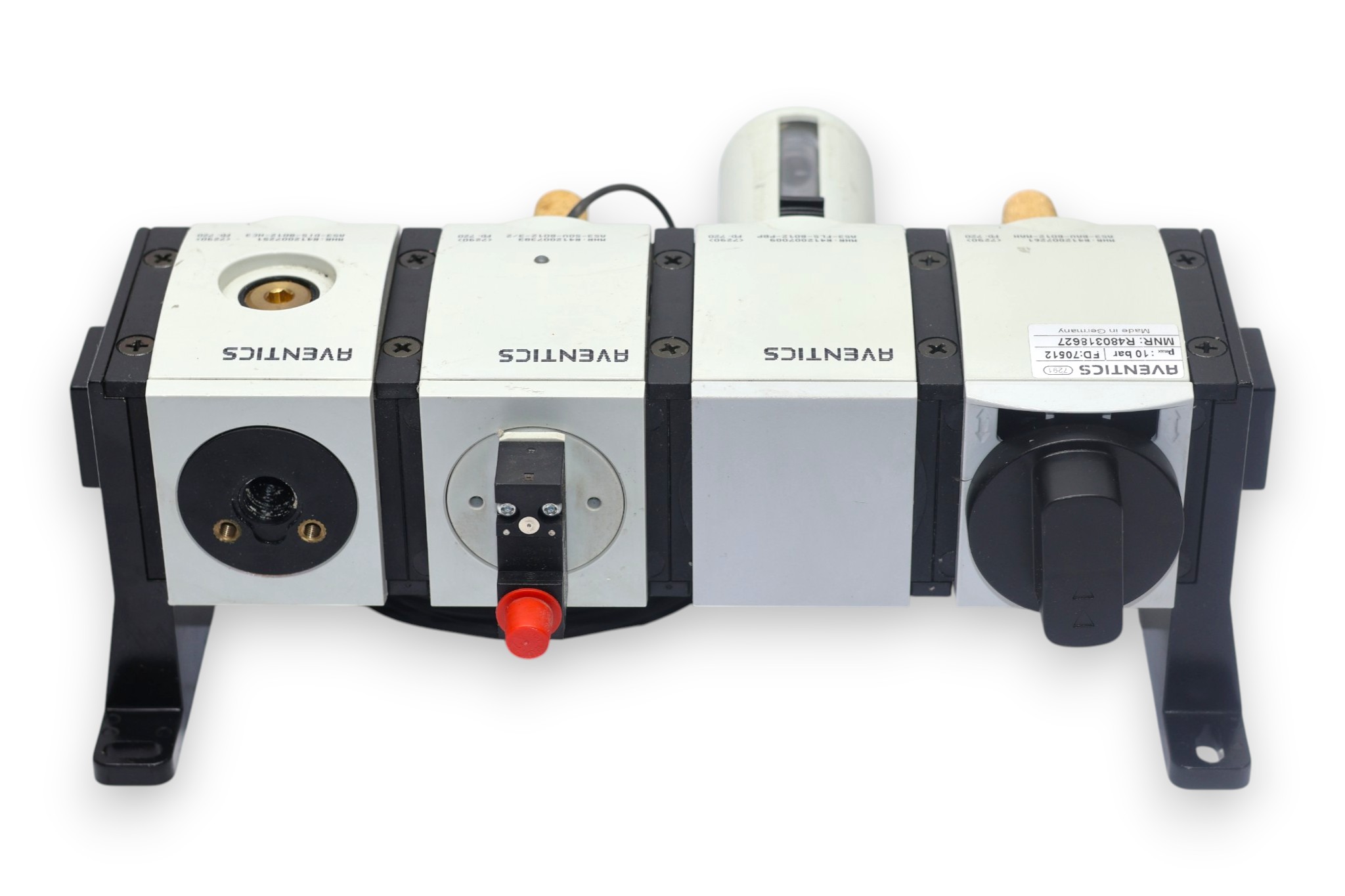

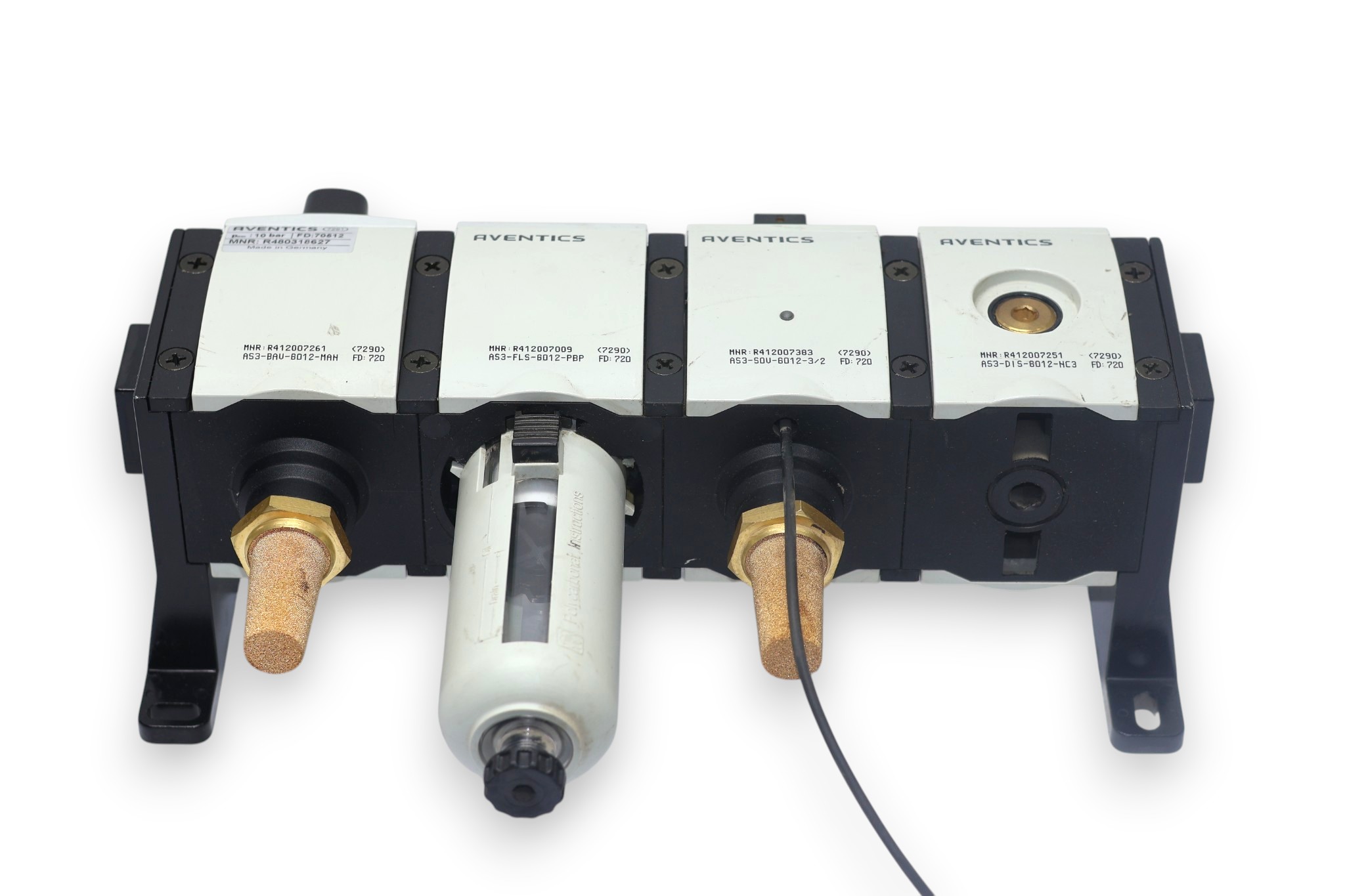

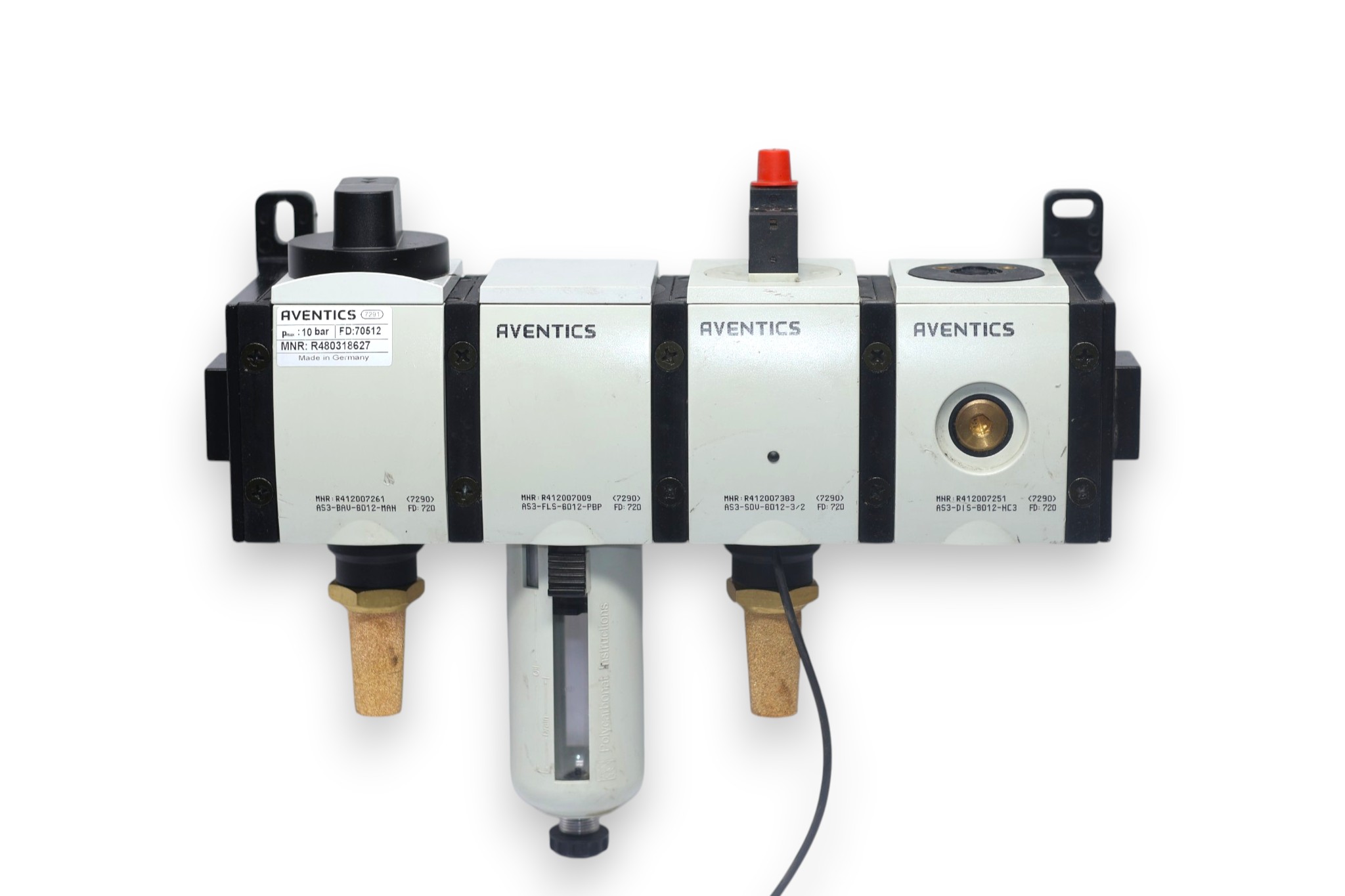

Aventics R480318627 Service Unit Combination
We are NOT an authorized distributor for AVENTICS
- ManufacturerAVENTICS
- ModelR480318627
- SKU068942
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: AVENTICS
Type: SERVICE UNIT COMBINATION

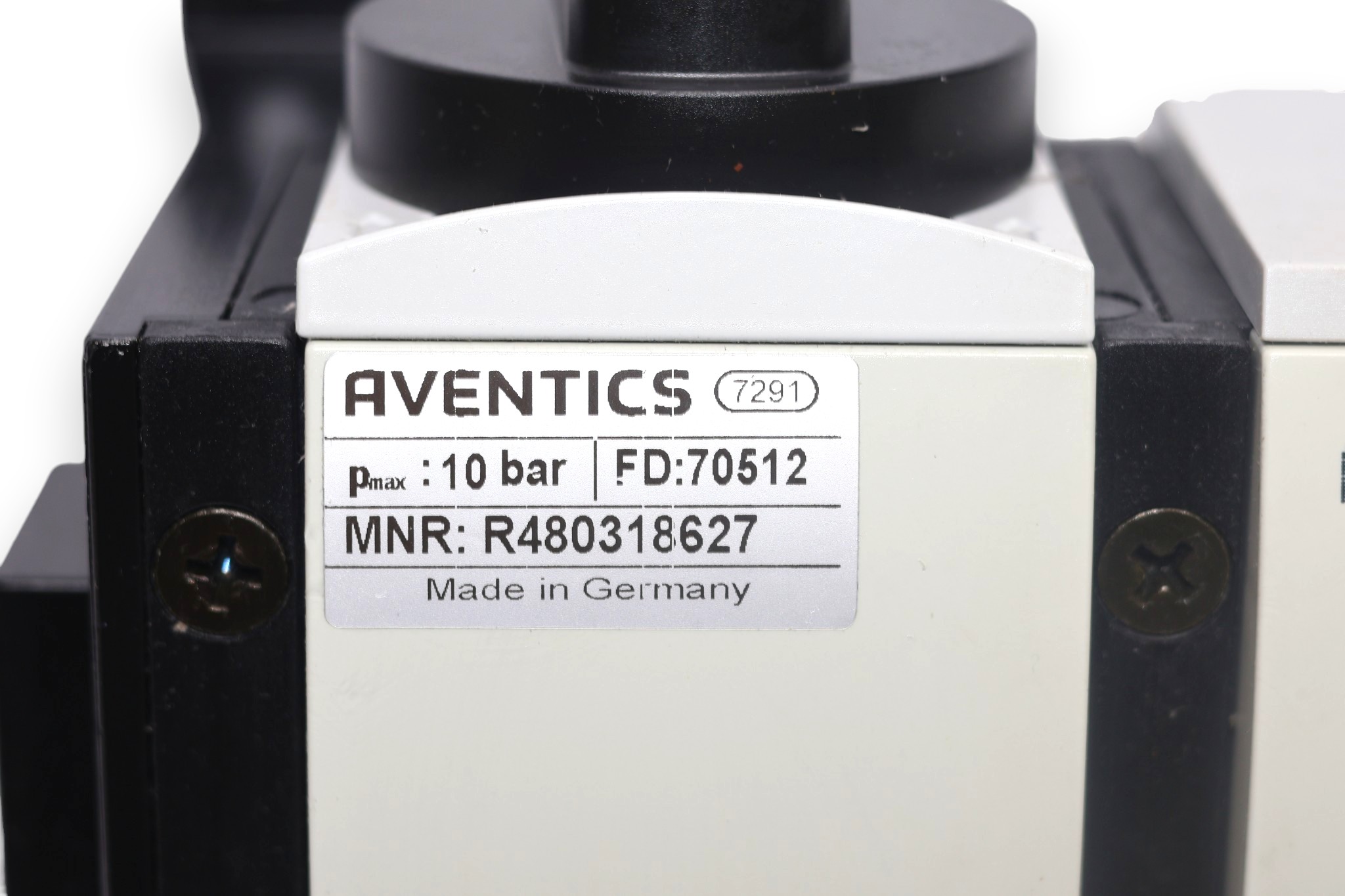

Model: R480318627
Included Components:
1. Shut-off Valve

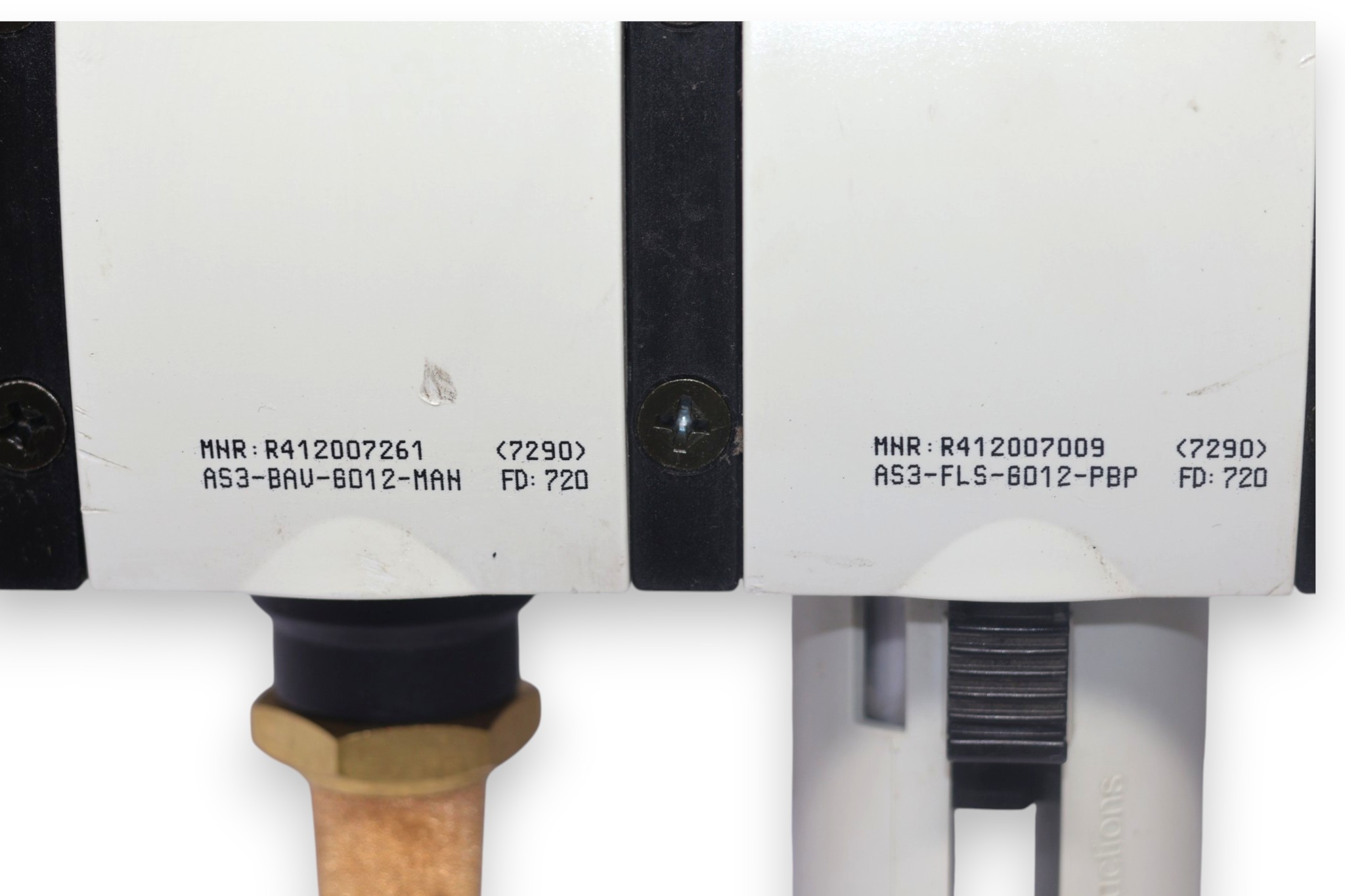

- Part No: R412007261
- Type: 3/2 Shut-off valve AS3-BAV-6012-MAN
- Nominal Flow (Qn): 11000 l/min
- Connection: G 1/2″
- Min. Working Pressure: 0 bar
- Max. Working Pressure: 16 bar
2. Filter Unit
- Part No: R412007009
- Type: AS3-FLS-6012-PBO
- Nominal Flow (Qn): 3500 l/min
- Working Pressure Range: 1.5 … 16 bar
- Filter Reservoir Volume: 49 cm³
3. Directional Valve

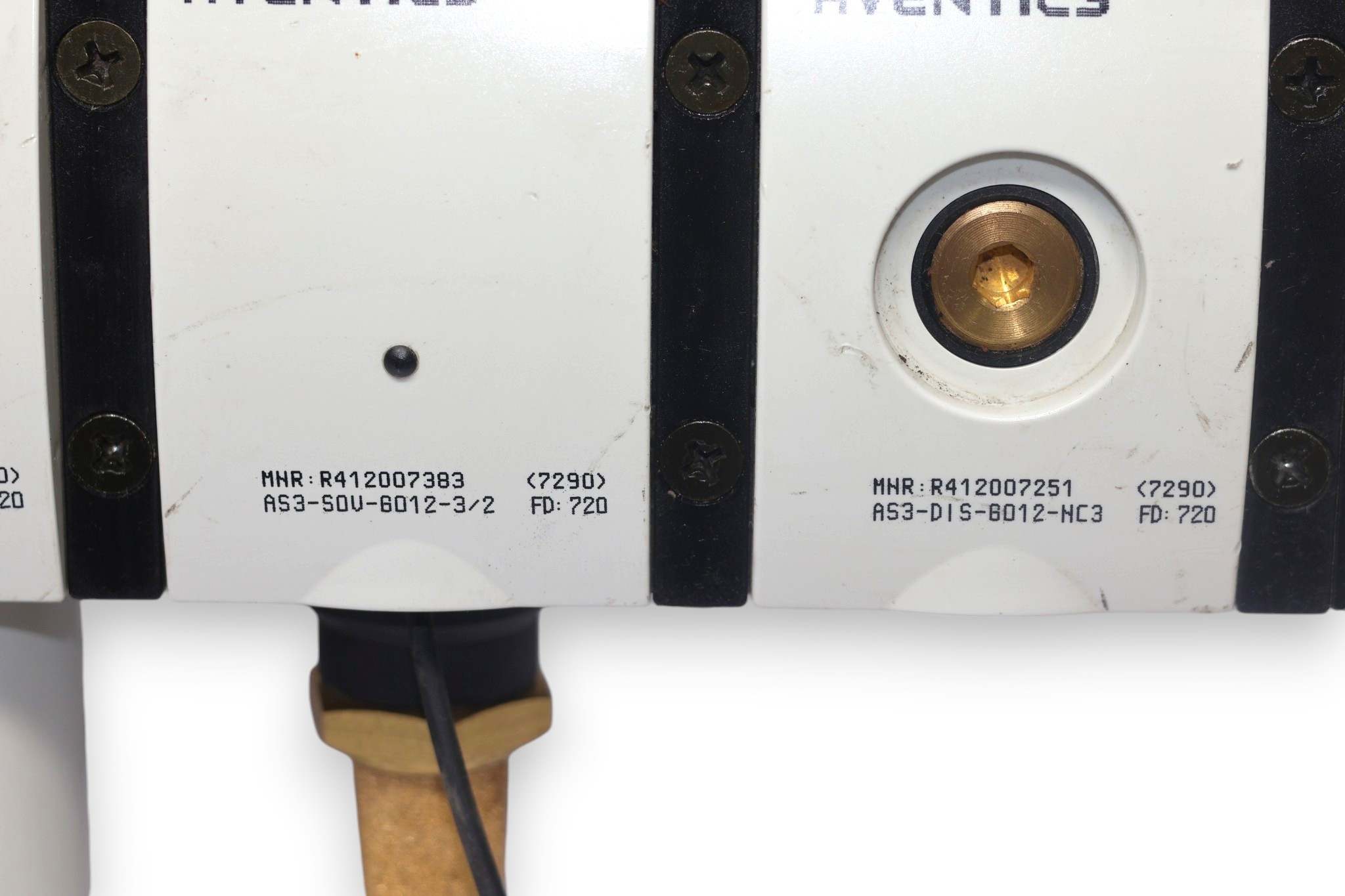

- Part No: R412007383
- Type: SOV-6012-3/2
- Nominal Flow (Qn): 4500 l/min
- Connection: G 1/2″
- Working Pressure Range: 2.5 … 16 bar
- Operating Voltage: 24 VDC
4. Distributor
- Part No: R412007251
- Type: AS3-DIS-6012-NC3
- Port: G 1/2″
- Working Pressure Range: 0 … 16 bar
