Specifications
| Weight | 0.150 kg |
|---|---|
| Manufacturer | Wenglor |
| Model | |
| Condition |

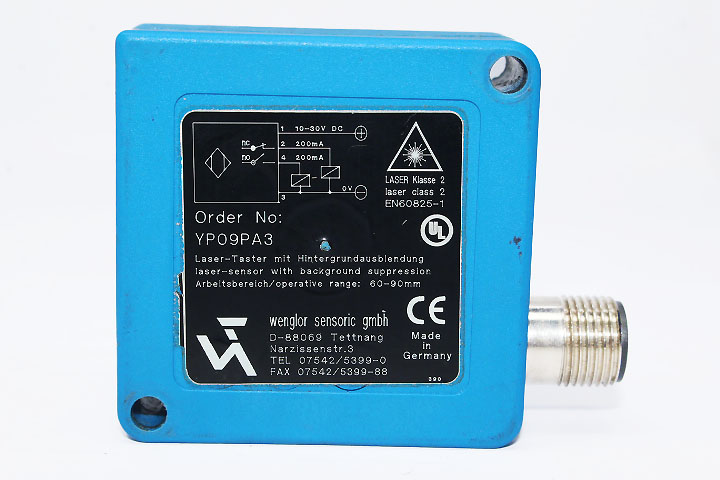

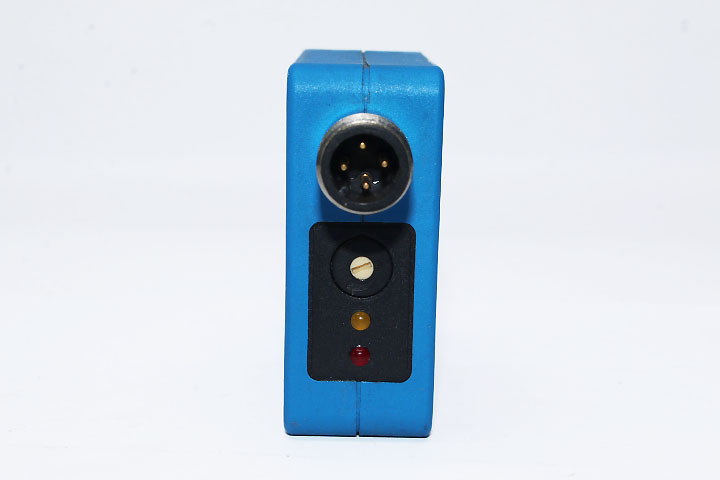

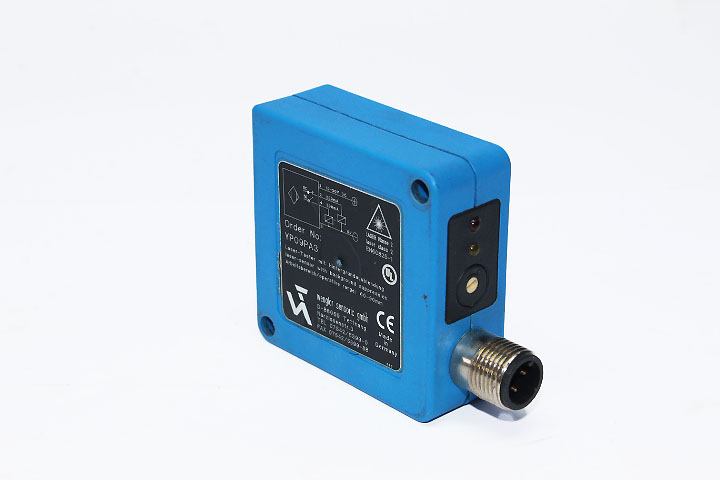

Wenglor YP09PA3 Laser Distance Sensor Triangulation
We are NOT an authorized distributor for Wenglor
- ManufacturerWenglor
- ModelYP09PA3
- SKU050991
126 $
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: Wenglor
Model: YP09PA3
Type: Laser Distance Sensor Triangulation
Range: 100 mm
Setting Range: 60 … 100 mm
Switching Hysteresis: < 200 µm
Light Source: Laser (red)
Supply Voltage: 10 … 30 V DC
Current Consumption (Ub = 24 V): < 30 mA
Switching Frequency: 1,500 Hz
Response Time: 333 µs
Temperature Drift: < 15 µm/K
Temperature Range: -25 … 60 °C
Switching Output Voltage Drop: < 2.5 V
PNP Switching Output/Switching Current: 200 mA
PNP NC, PNP NO: yes
