Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | Wenglor |
| Model | |
| Condition |

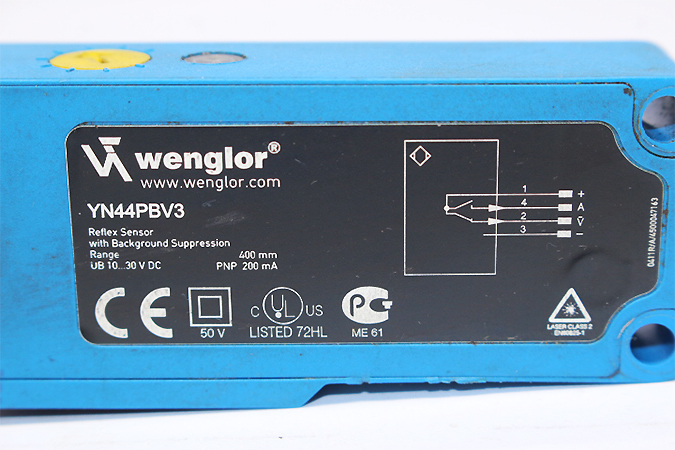

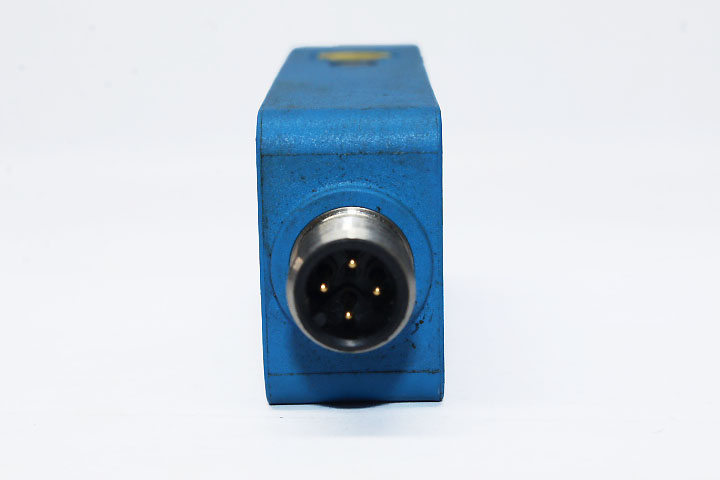

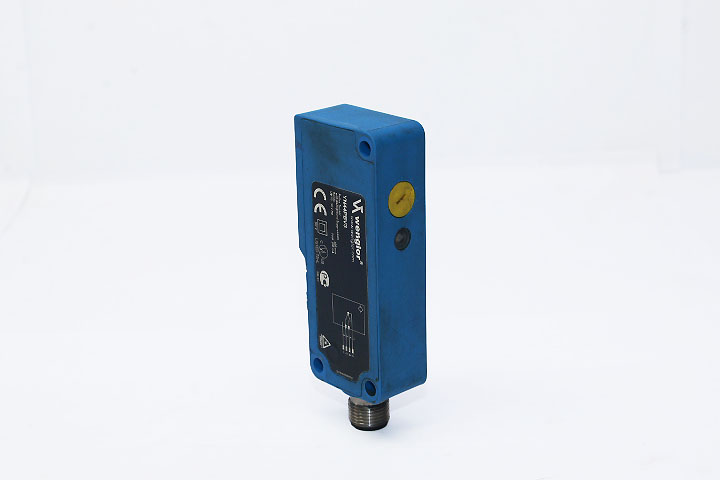

WENGLOR YN44PBV3 Reflex Sensor with Background Suppression
We are NOT an authorized distributor for Wenglor
- ManufacturerWenglor
- ModelYN44PBV3
- SKU051018
Quote on request
1 in stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: WENGLOR
Model: YN44PBV3
Type: Reflex Sensor with Background Suppression
Range: 400 mm
Setting Range: 65 … 400 mm
Switching Hysteresis: < 1 %
Light Source: Laser (red)
PNP NO: yes
Supply Voltage: 10 … 30 V DC
Current Consumption (Ub = 24 V): < 20 mA
Switching Frequency: 600 Hz
Response Time: 833 µs
Temperature Drift: < 2 %
Temperature Range: -25 … 60 °C
Switching Output Voltage Drop: < 2.5 V
PNP Switching Output/Switching Current: 200 mA
Contamination Output Voltage Drop: < 2.5 V
PNP Contamination Output/Switching Current: 50 mA
Protection Class: III
Degree of Protection: IP67
