Specifications
| Weight | 0.200 kg |
|---|---|
| Manufacturer | Wenglor |
| Model | |
| Condition |

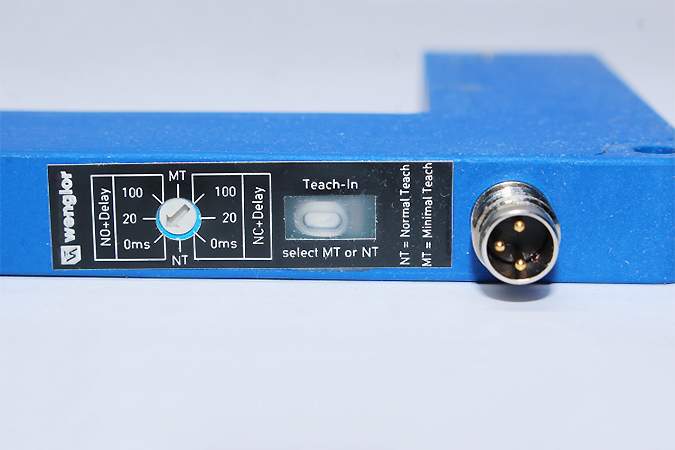

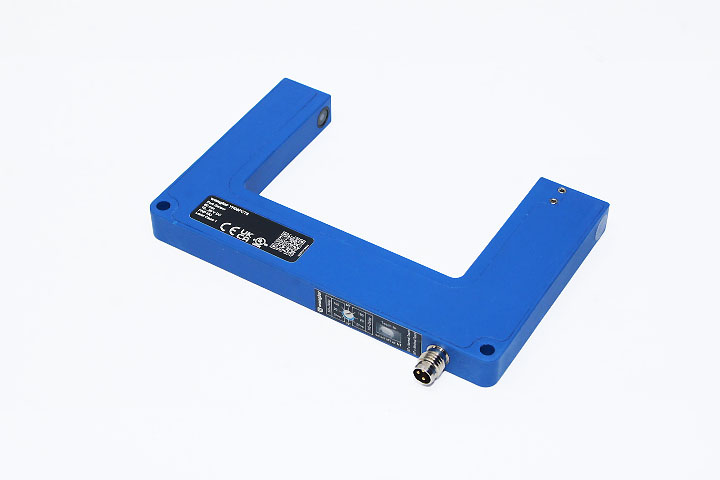

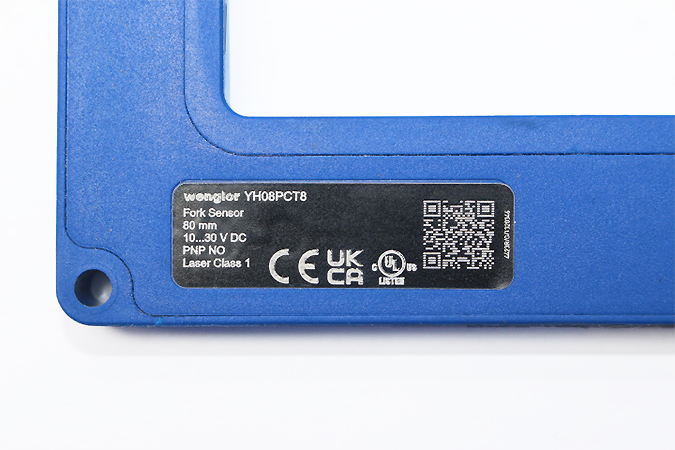

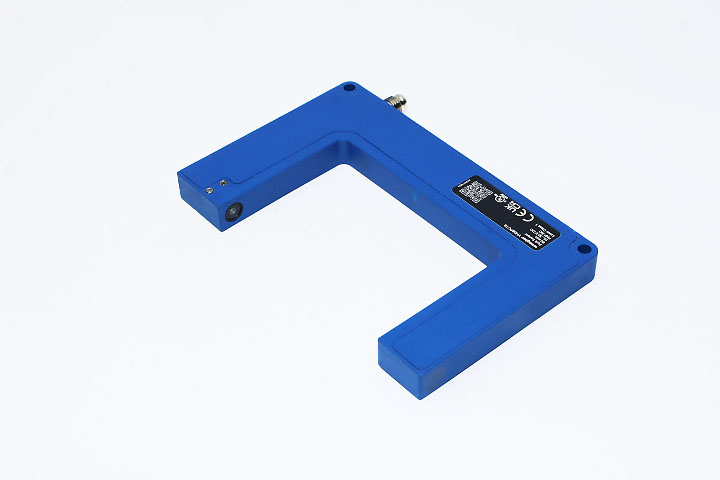

WENGLOR YH08PCT8 Fork Sensor
We are NOT an authorized distributor for Wenglor
- ManufacturerWenglor
- ModelYH08PCT8
- SKU051023
168 $
5 in stock
Description
Manufacturer: WENGLOR
Model: YH08PCT8
Type: Fork Sensor
Fork Width: 80 mm
Smallest Recognizable Part: 40 µm
Smallest Detectable Gap: 50 µm
Switching Hysteresis: < 20 µm
Light Source: Laser (red)
Supply Voltage: 10 … 30 V DC
Current Consumption (Ub = 24 V): < 50 mA
Switching Frequency: 10 kHz
Response Time: 50 µs
Off-Delay: 0 … 100 ms
Temperature Range: -25 … 60 °C
Switching Output Voltage Drop: < 1.5 V
PNP Switching Output/Switching Current: 200 mA
Protection Class: III
Degree of Protection: IP67
PNP NO: yes
