Specifications
| Weight | 0.200 kg |
|---|---|
| Manufacturer | Wenglor |
| Model | |
| Condition |

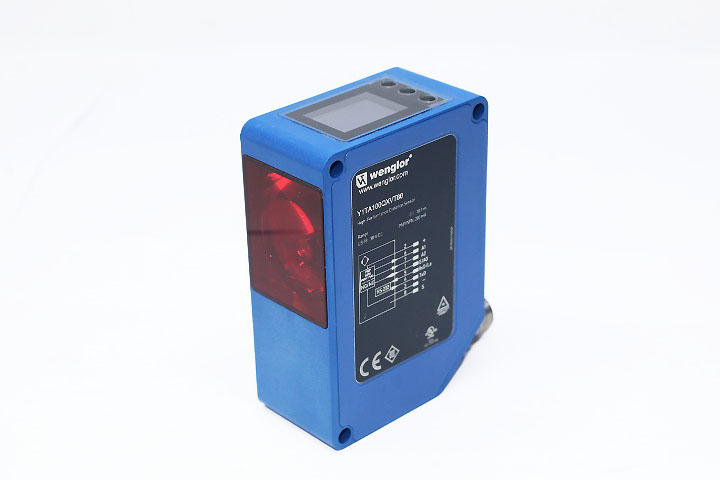

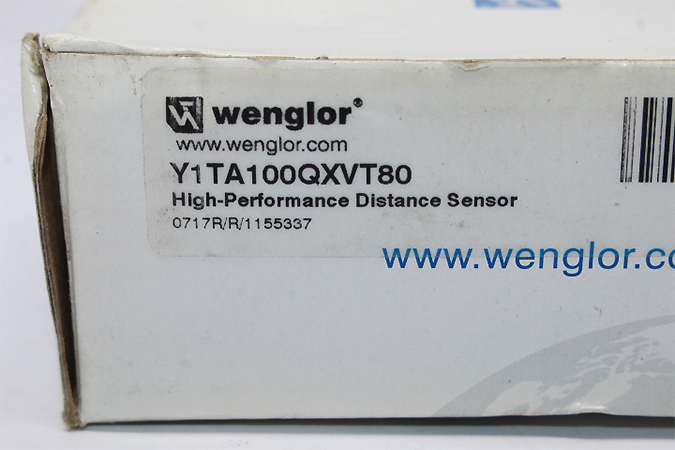

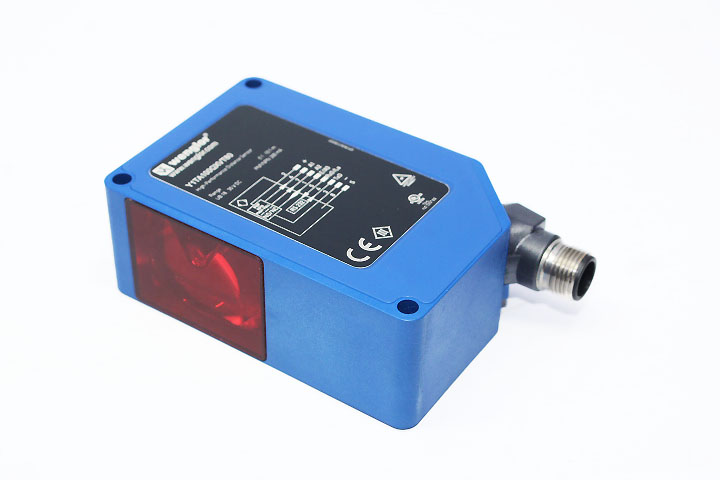

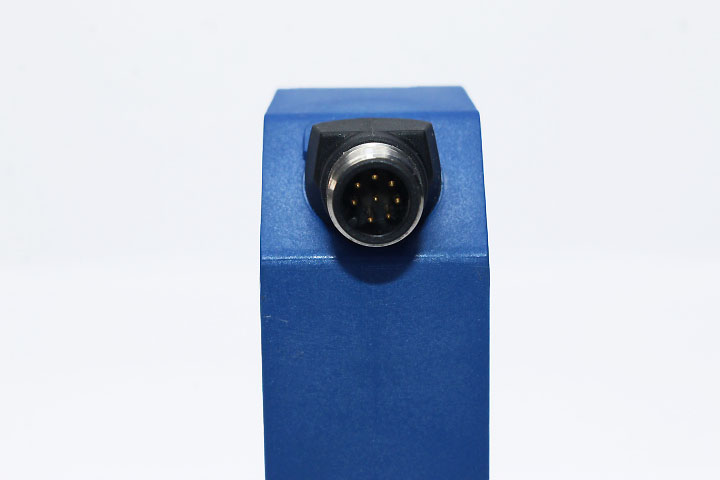

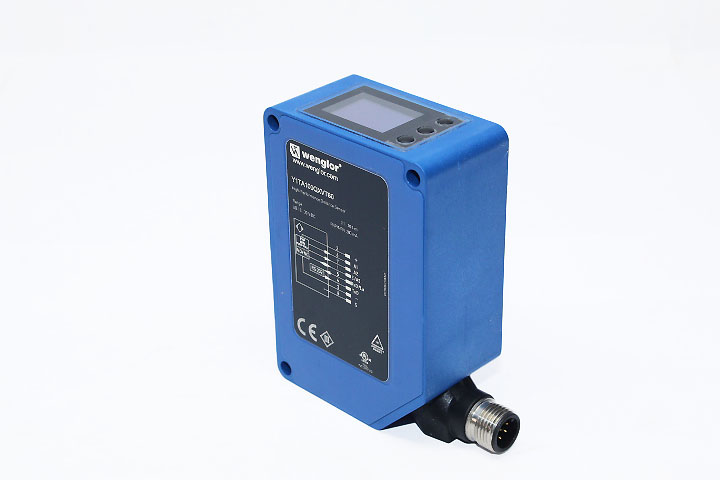

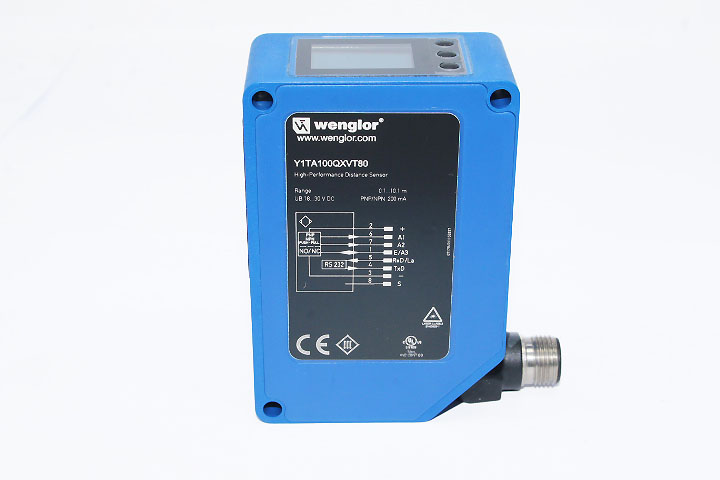

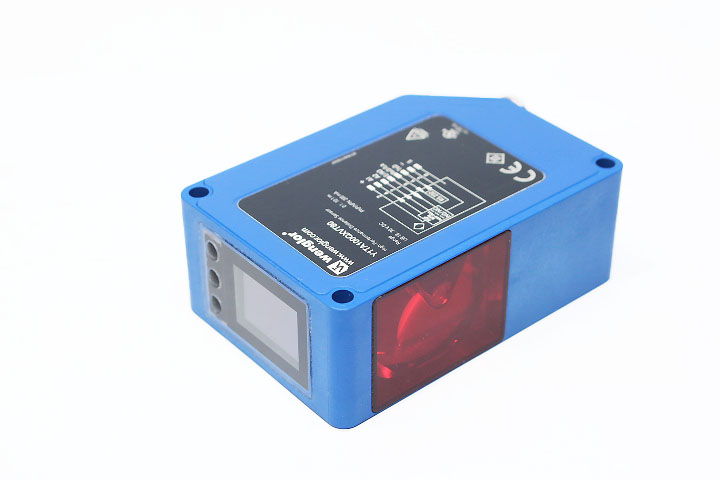

Wenglor Y1TA100QXVT80 Laser Distance Sensor Time of Flight
We are NOT an authorized distributor for Wenglor
- ManufacturerWenglor
- ModelY1TA100QXVT80
- SKU051008
174 $
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: Wenglor
Model: Y1TA100QXVT80
Type: Laser Distance Sensor Time of Flight
Working Range: 0.1 … 10.1 m
Measuring Range: 10 m
Resolution: 1 … 12 mm
Linearity: 0.2 %
Linearity Deviation: 20 mm
Switching Hysteresis: 3 … 20 mm
Light Source: Laser (red)
Wavelength: 660 nm
Supply Voltage: 18 … 30 V DC
Current Consumption (Ub = 24 V): < 100 mA
Switching Frequency: 50 Hz
Measuring Rate: 1 … 100 /s
On-/Off-Delay: 0 … 10,000 ms
Temperature Drift (-10 °C < Tu < 50 °C): < 0.2 mm/K
Temperature Drift (Tu < -10 °C, Tu > 50 °C): < 0.4 mm/K
Temperature Range: -25 … 60 °C
Number of Switching Outputs: 3
Switching Output Voltage Drop: < 2.5 V
Switching Output/Switching Current: 200 mA
PNP NO: yes
