Specifications
| Weight | 0.150 kg |
|---|---|
| Manufacturer | Wenglor |
| Model | |
| Condition |

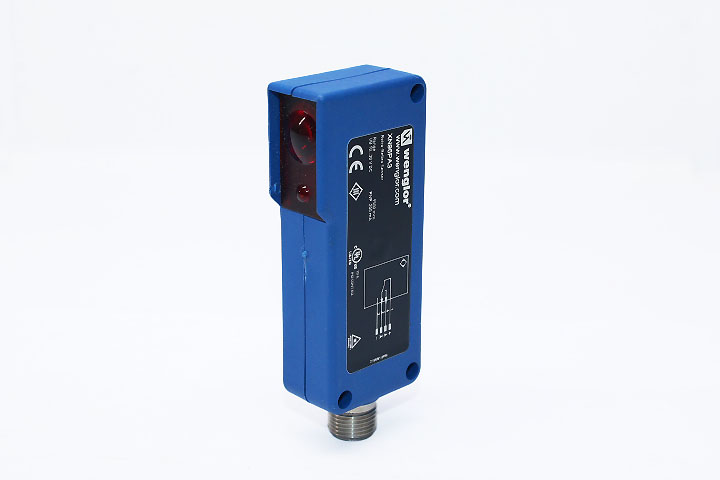

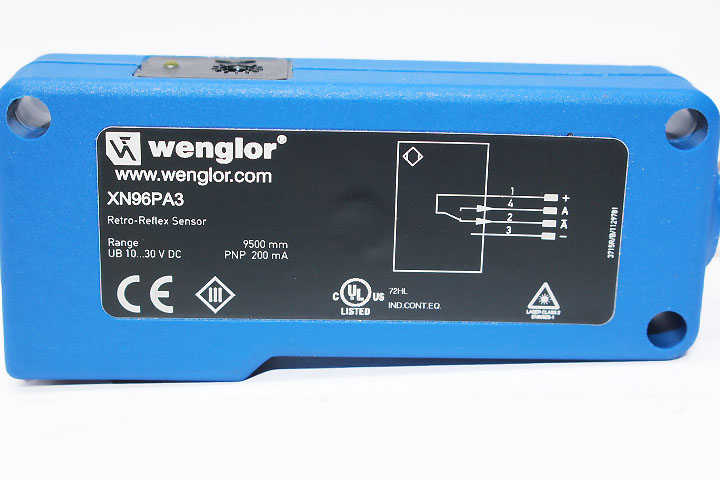

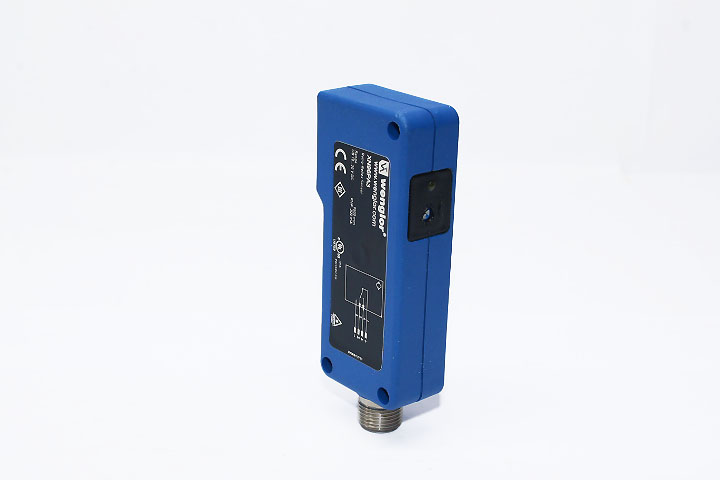

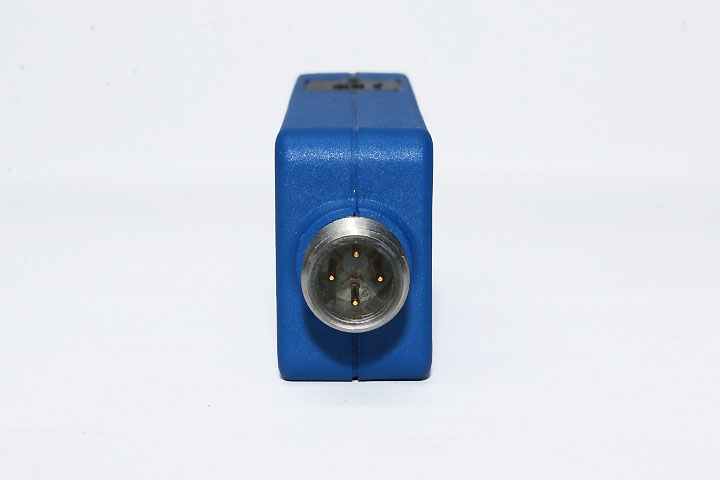

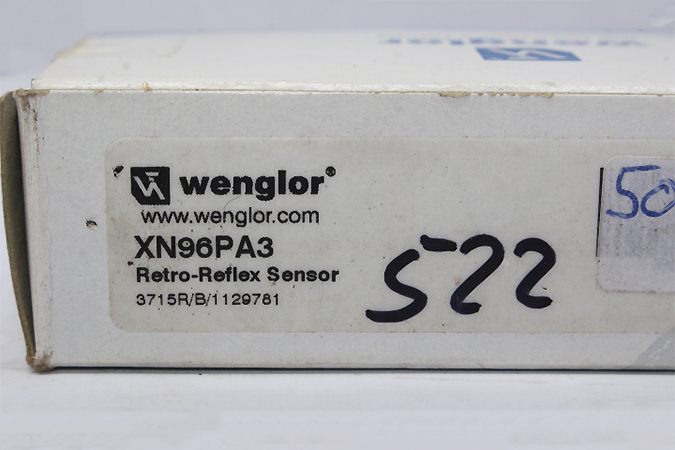

Wenglor XN96PA3 Retro-Reflex Sensor Universal
We are NOT an authorized distributor for Wenglor
- ManufacturerWenglor
- ModelXN96PA3
- SKU051006
132 $
2 in stock
Description
Manufacturer: Wenglor
Model: XN96PA3
Type: Retro-Reflex Sensor Universal
Range: 9,500 mm
Reference Reflector/Reflector Foil: RQ100BA
Min. Distance to Reflector: 0 mm
Smallest Recognizable Part: > 250 µm
Switching Hysteresis: < 15 %
Light Source: Laser (red)
Supply Voltage: 10 … 30 V DC
Current Consumption (Ub = 24 V): < 30 mA
Switching Frequency: 2,500 Hz
Response Time: 200 µs
Temperature Drift: < 10 %
Temperature Range: -25 … 60 °C
Switching Output Voltage Drop: < 2.5 V
PNP Switching Output/Switching Current: 200 mA
PNP NC, PNP NO: yes
