Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | Wenglor |
| Model | |
| Condition |

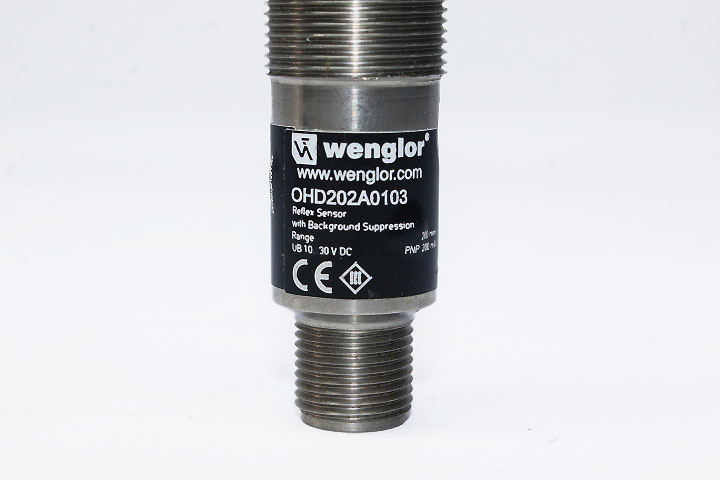

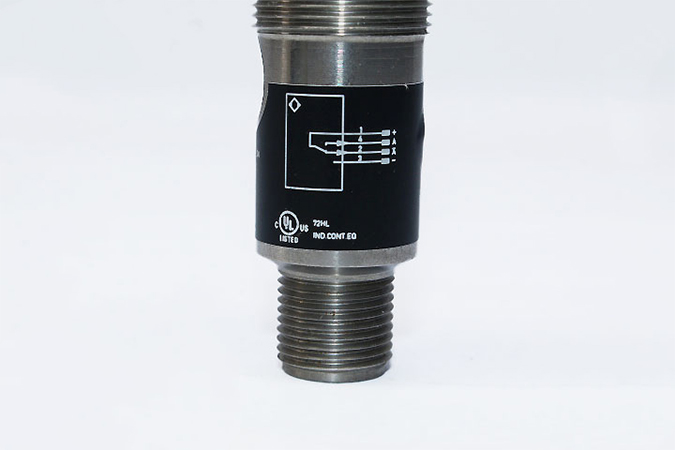

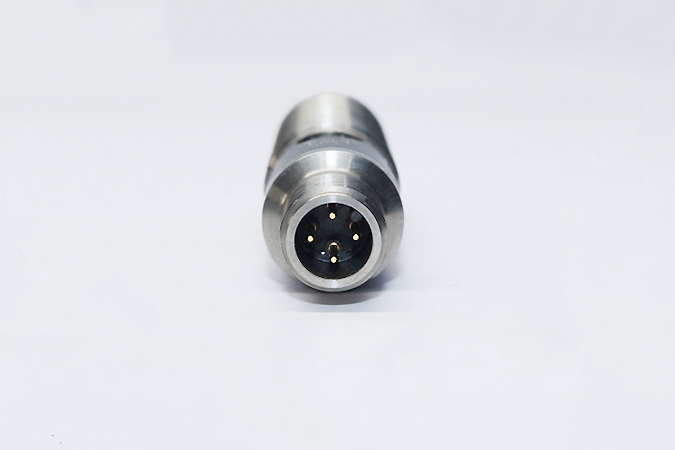

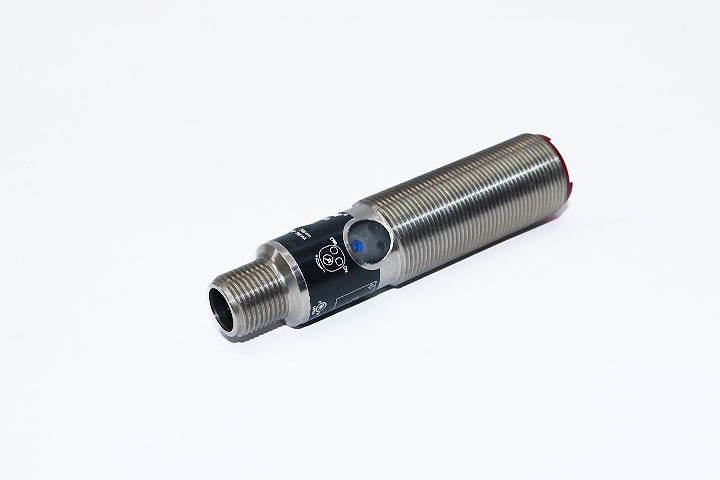

Wenglor OHD202A0103 Reflex Sensor with Background Suppression
We are NOT an authorized distributor for Wenglor
- ManufacturerWenglor
- ModelOHD202A0103
- SKU050994
147 $
1 in stock
Description
Manufacturer: Wenglor
Model: OHD202A0103
Type: Reflex Sensor with Background Suppression
Range: 200 mm
Setting Range: 35 … 200 mm
Switching Hysteresis: < 5 %
Light Source: Red Light
Supply Voltage: 10 … 30 V DC
Current Consumption (Ub = 24 V): < 30 mA
Switching Frequency: 1,000 Hz
Response Time: 500 µs
Temperature Drift: < 5 %
Temperature Range: -25 … 60 °C
Number of Switching Outputs: 2
Switching Output Voltage Drop: < 2.5 V
PNP Switching Output/Switching Current: 200 mA
PNP NC, PNP NO: yes
