Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | Wenglor |
| Model | |
| Condition |

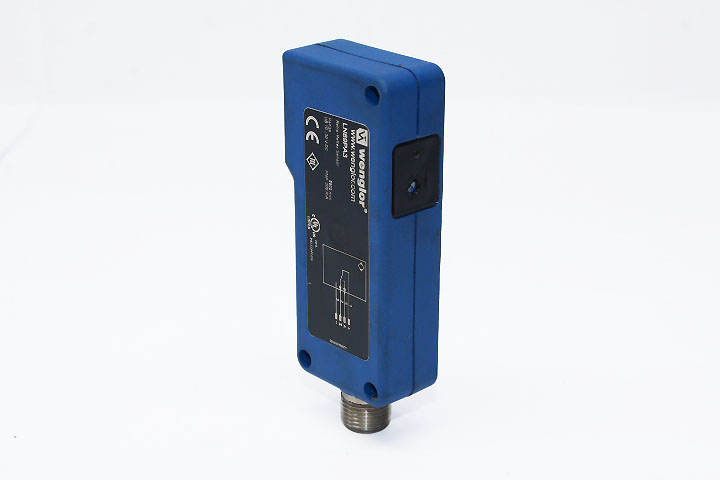

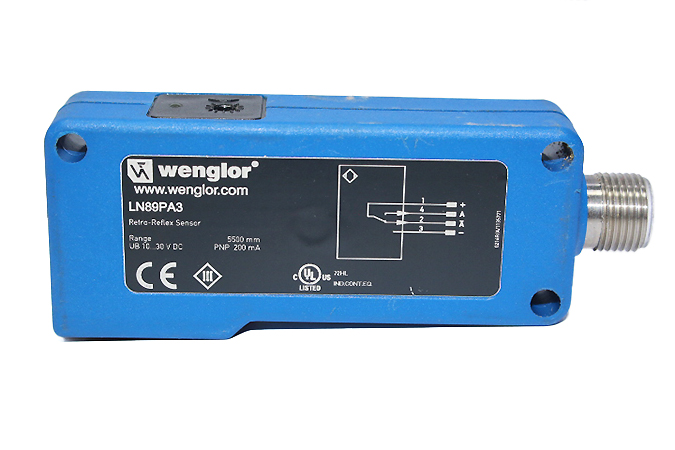

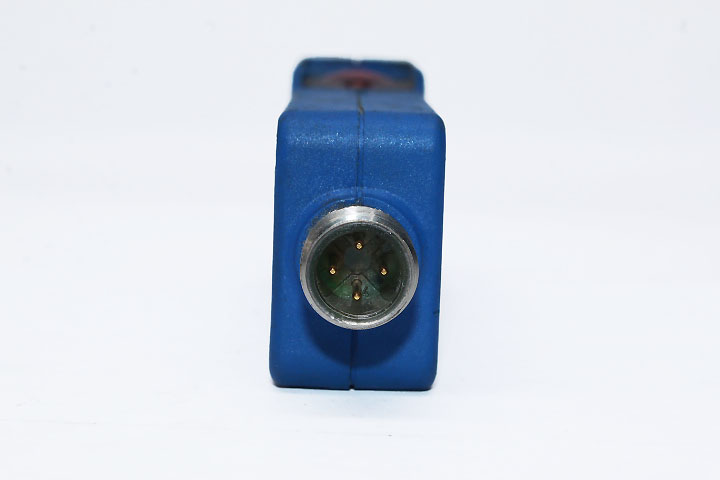

Wenglor LN89PA3 Retro-Reflex Sensor Universal
We are NOT an authorized distributor for Wenglor
- ManufacturerWenglor
- ModelLN89PA3
- SKU050993
42 $
1 in stock
Description
Manufacturer: Wenglor
Type: Retro-Reflex Sensor Universal
Model: LN89PA3
Range: 5,500 mm
Light Source: Red Light
Polarization Filter: yes
Single-Lens Optic: yes
Supply Voltage: 10 … 30 V DC
Current Consumption (Ub = 24 V): < 40 mA
Switching Frequency: 1 kHz
Response Time: 500 µs
Temperature Drift: < 10 %
Temperature Range: –10 … 60 °C
Switching Output Voltage Drop: < 2.5 V
PNP Switching Output/Switching Current: 200 mA
Residual Current Switching Output: < 50 µA
Short Circuit Protection: yes
Reverse Polarity Protection: yes
Overload Protection: yes
Protection Class: III
Degree of Protection: IP67
PNP NC, PNP NO: yes
