Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | Wenglor |
| Model | |
| Condition |

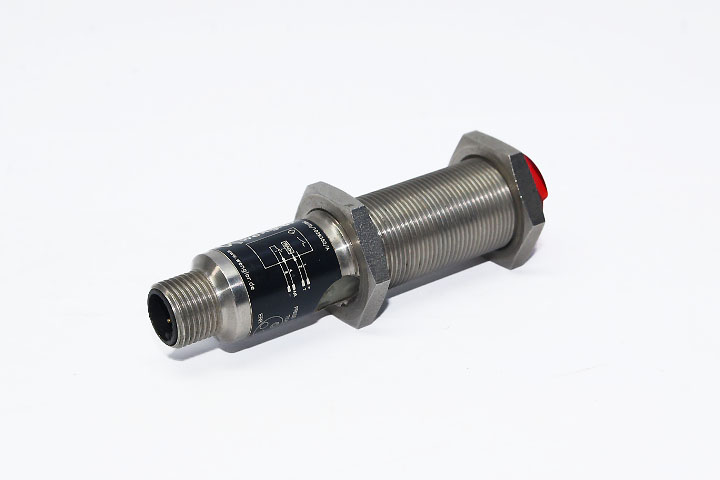

Wenglor LD86NCT3 Retro-Reflex Sensor Universal
We are NOT an authorized distributor for Wenglor
- ManufacturerWenglor
- ModelLD86NCT3
- SKU050996
105 $
1 in stock
Description
Manufacturer: Wenglor
Model: LD86NCT3
Type: Retro-Reflex Sensor Universal
Range: 6,000 mm
Reference Reflector/Reflector Foil: RQ100BA
Switching Hysteresis: < 5 %
Light Source: Red Light
Supply Voltage: 10 … 30 V DC
Current Consumption (Ub = 24 V): < 40 mA
Switching Frequency: 2 kHz
Response Time: 250 µs
On-/Off-Delay (RS-232): 0 … 5 s
Temperature Drift: < 5 %
Temperature Range: -25 … 60 °C
Switching Output Voltage Drop: < 2.5 V
NPN Switching Output/Switching Current: 100 mA
NPN NC: yes
