Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | Wenglor |
| Model | |
| Condition |

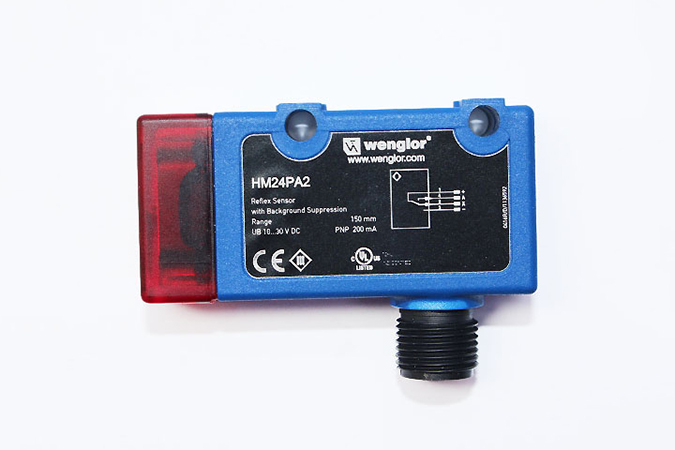

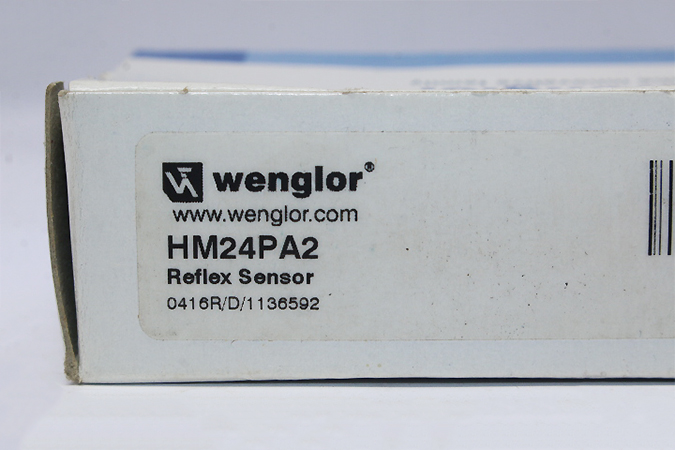

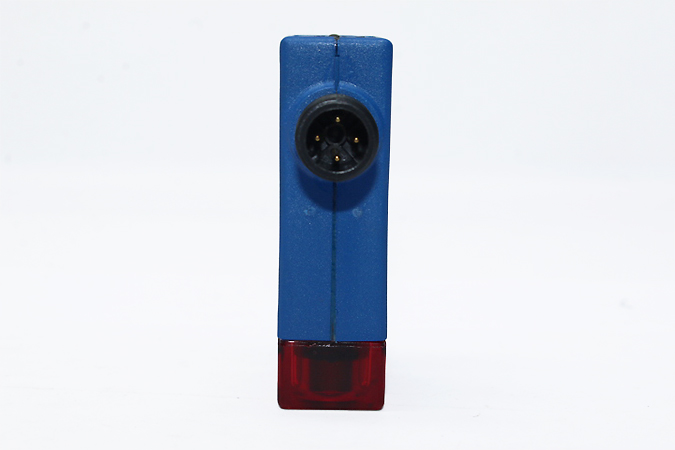

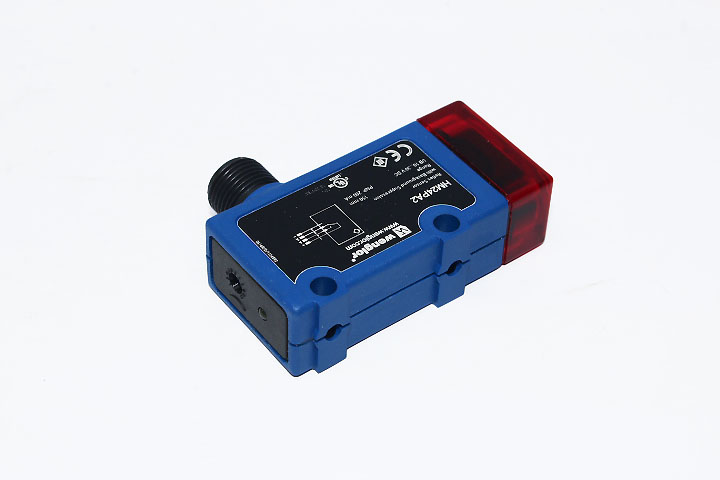

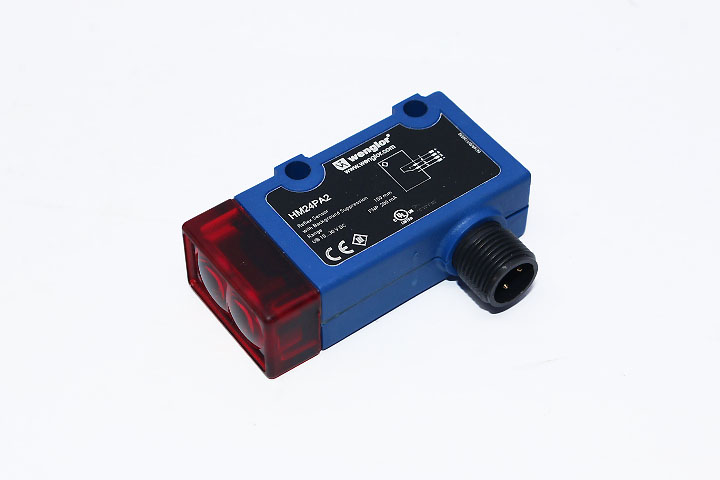

Wenglor HM24PA2 Reflex Sensor with Background Suppression
We are NOT an authorized distributor for Wenglor
- ManufacturerWenglor
- ModelHM24PA2
- SKU051004
74 $
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: Wenglor
Model: HM24PA2
Type: Reflex Sensor with Background Suppression
Range: 150 mm
Setting Range: 40 … 150 mm
Switching Hysteresis: < 5 %
Light Source: Red Light
Supply Voltage: 10 … 30 V DC
Current Consumption (Ub = 24 V): < 30 mA
Switching Frequency: 900 Hz
Response Time: µs
Temperature Drift: < 5 %
Temperature Range: -25 … 60 °C
Switching Output Voltage Drop: < 2.5 V
PNP Switching Output/Switching Current: 200 mA
PNP NC, PNP NO: yes
