Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | Wenglor |
| Model | |
| Condition |

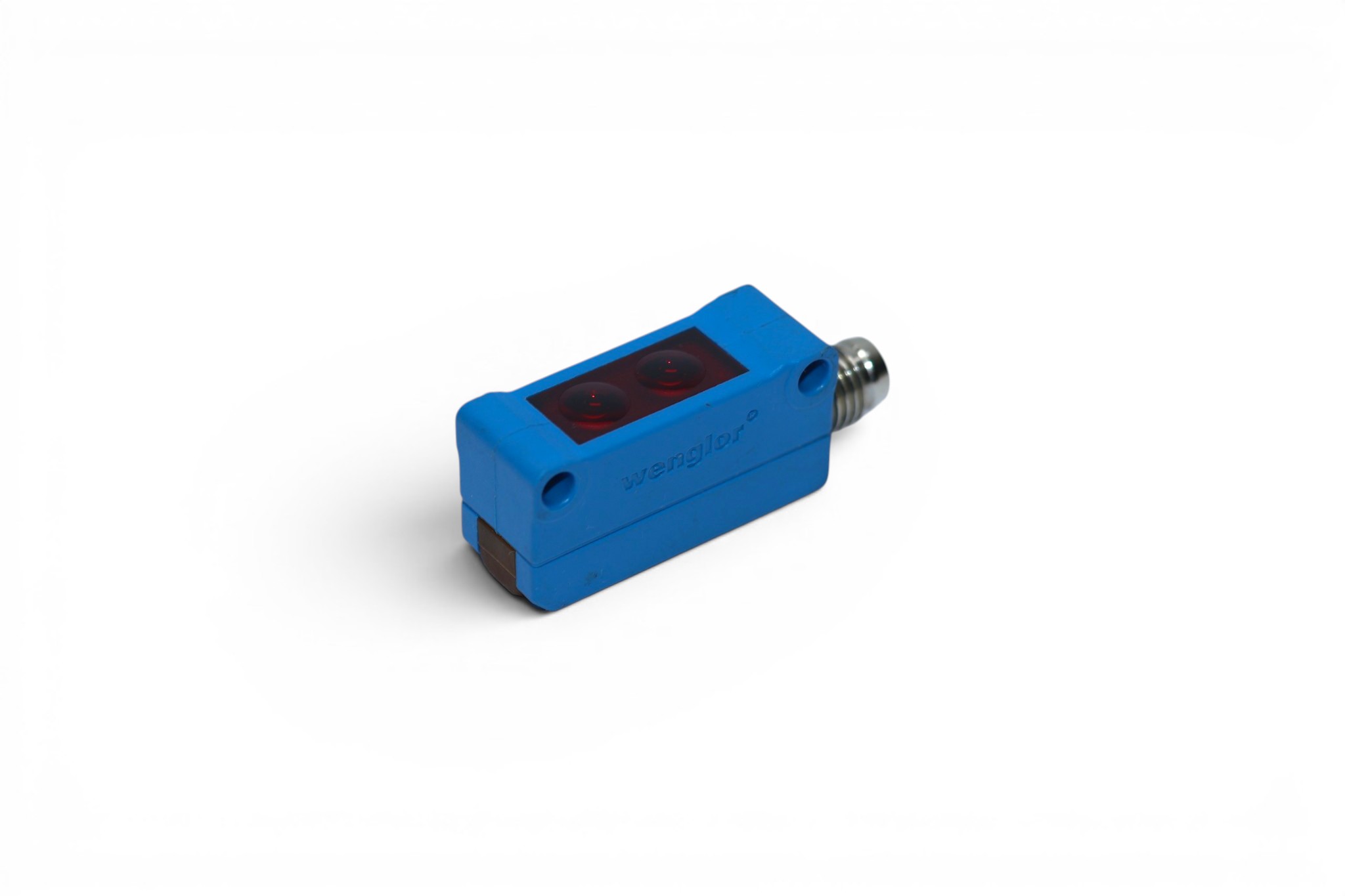

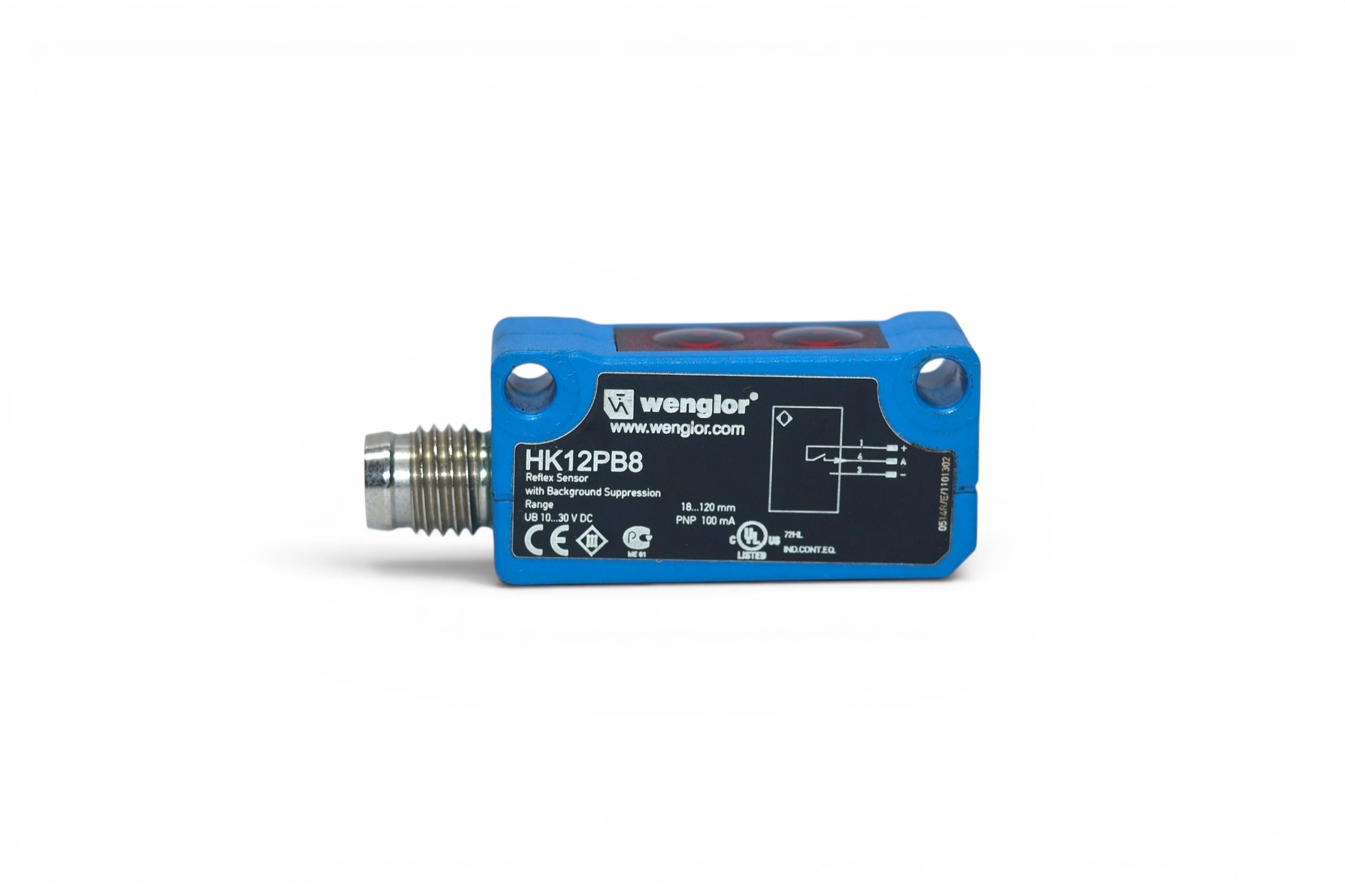

Wenglor HK12PB8 Reflex Sensor with Background Suppression
We are NOT an authorized distributor for Wenglor
- ManufacturerWenglor
- ModelHK12PB8
- SKU051009
34 $
1 in stock
Description
Manufacturer: Wenglor
Model: HK12PB8
Type: Reflex Sensor with Background Suppression
Range: 120 mm
Setting Range: 18 … 120 mm
Switching Hysteresis: < 10 %
Light Source: Red Light
Supply Voltage: 10 … 30 V DC
Current Consumption (Ub = 24 V): < 25 mA
Switching Frequency: 1,300 Hz
Response Time: 385 µs
Temperature Drift: < 5 %
Temperature Range: -25 … 60 °C
Switching Output Voltage Drop: < 2.5 V
PNP Switching Output/Switching Current: 100 mA
Degree of Protection: IP67

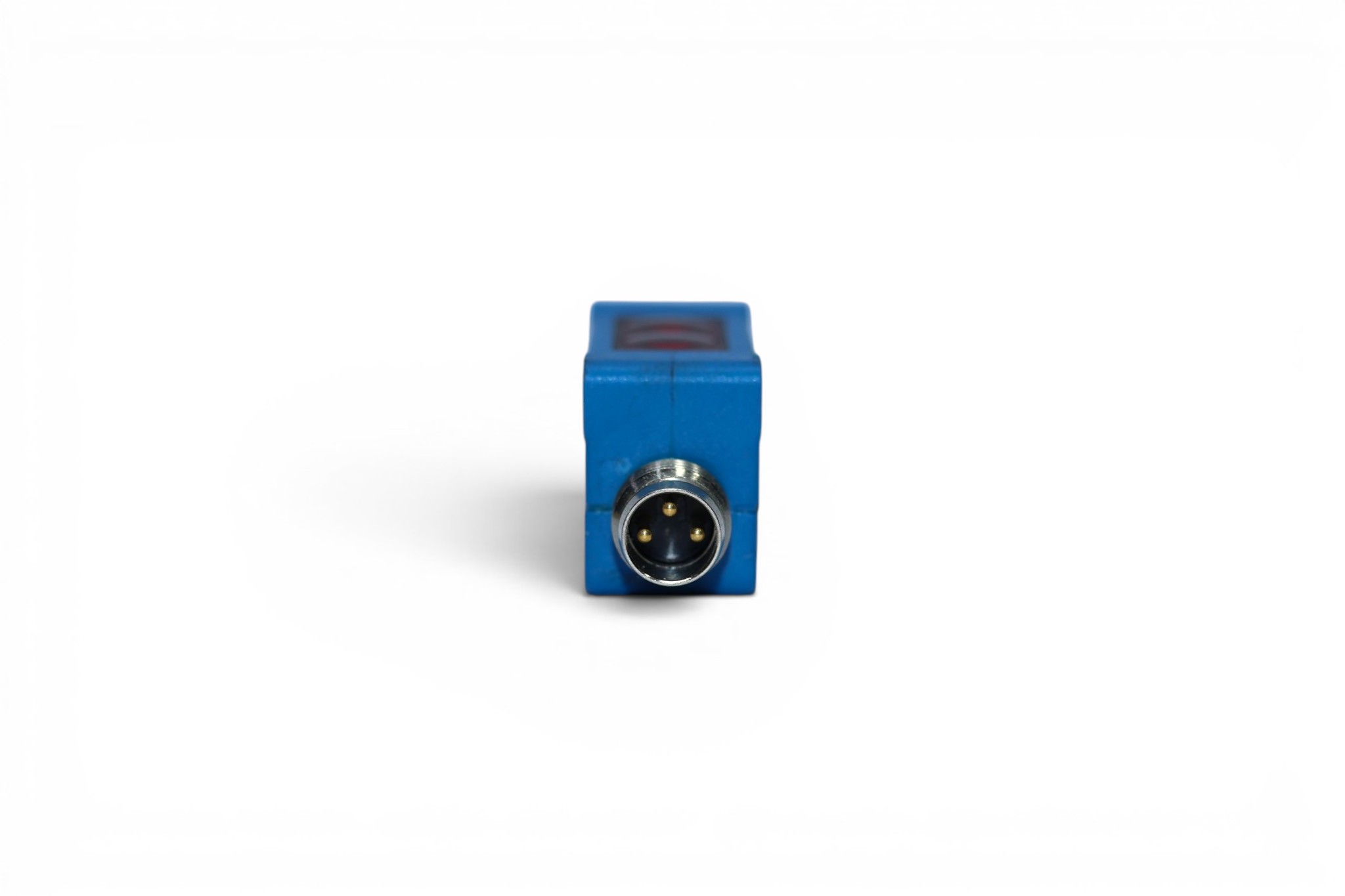

Connection: M8 × 1; 3-pin
PNP NO: yes
