Specifications
| Manufacturer | SICK |
|---|---|
| Model | |
| Condition |

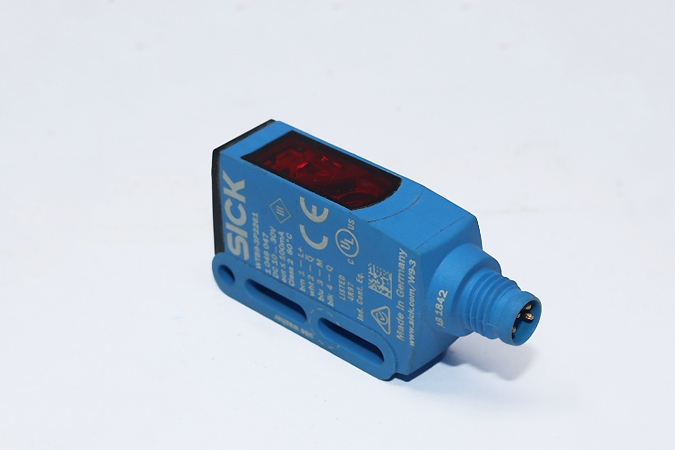

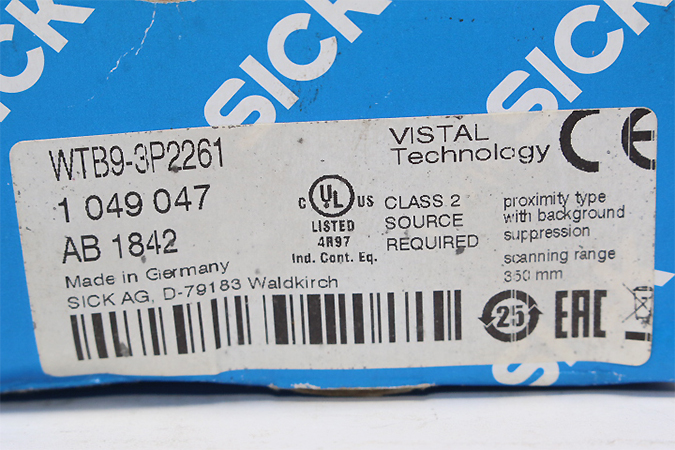

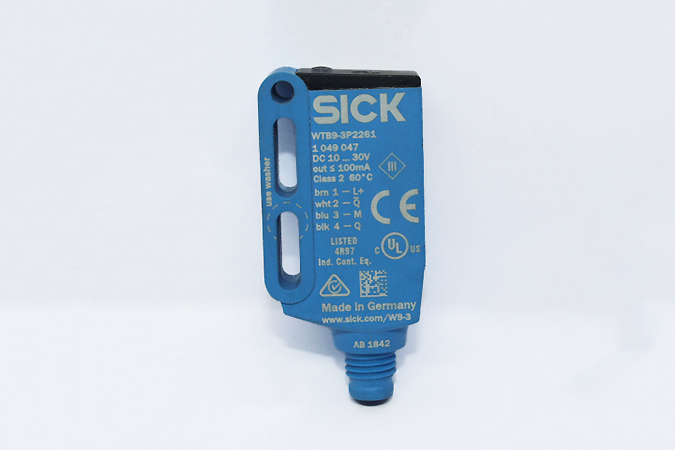

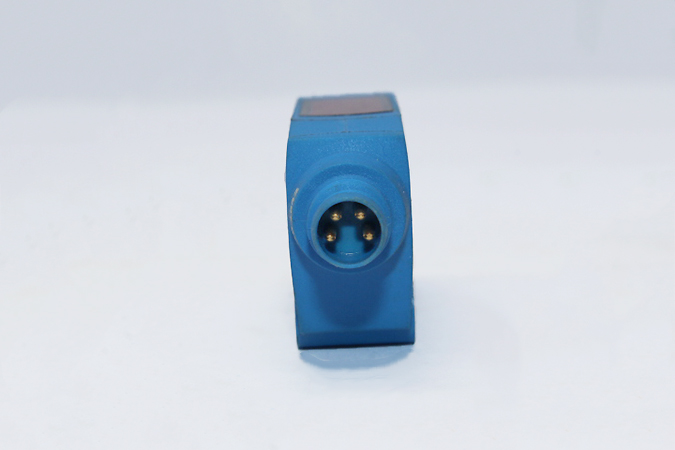

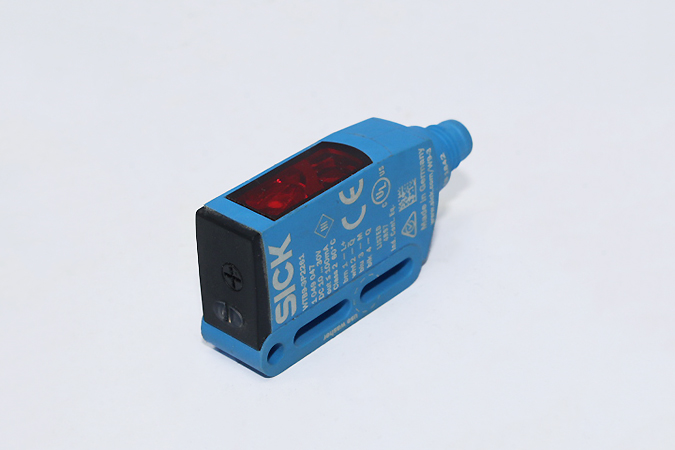

SICK WTB9-3P2261 Small photoelectric sensors 1049047
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WTB9-3P2261 Small photoelectric sensors 1049047
- SKU050021
53 $
1 in stock
Description
Manufacturer: SICK
Type: Small photoelectric sensors
Model: WTB9-3P2261
Part No: 1049047
Functional principle: Photoelectric proximity sensor
Functional principle detail: Background suppression
Dimensions (W x H x D): 12.2 mm x 49.8 mm x 23.6 mm
Housing design (light emission): Rectangular
Mounting hole: M3
Sensing range max.: 20 mm … 350 mm
Sensing range: 20 mm … 200 mm
Type of light: Visible red light
Light source: PinPoint LED
Light spot size (distance): Ø 4.5 mm (75 mm)
Wave length: 650 nm
Adjustment: Potentiometer, 5 turns
Supply voltage: 10 V DC … 30 V DC
Ripple: < 5 Vpp
Current consumption: 30 mA
Switching output: PNP
