Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Condition |

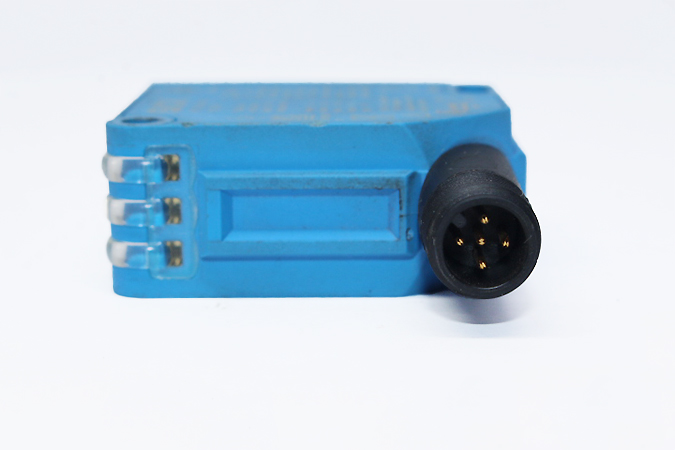

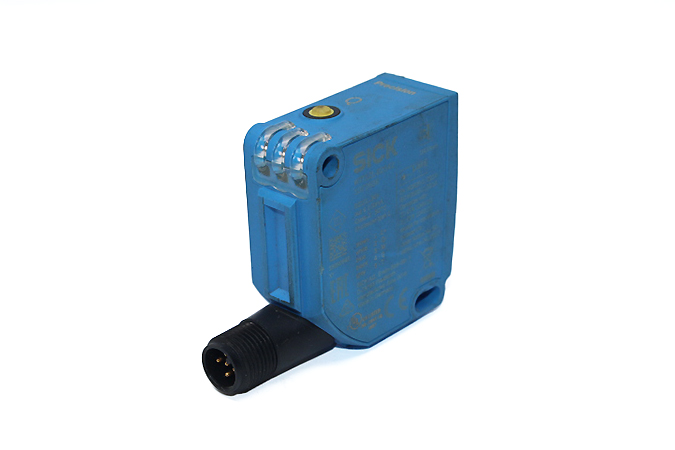

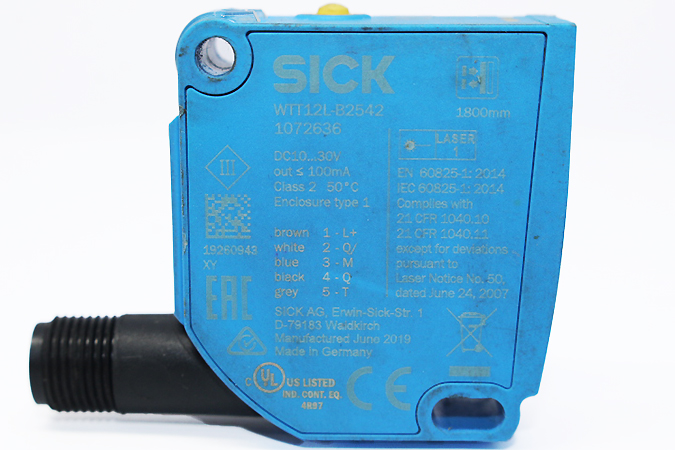

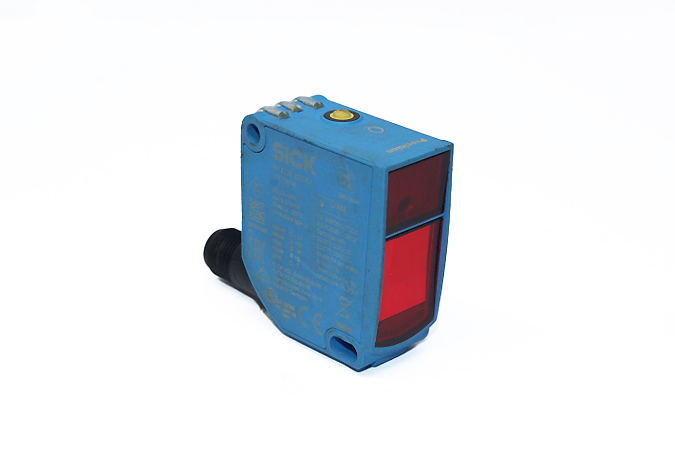

SICK WTT12L-B2542 Multi Task photoelectric sensors 1072636
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WTT12L-B2542 Multi Task photoelectric sensors 1072636
- SKU050274
Quote on request
1 in stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: SICK
Type: Multi Task photoelectric sensors
Model: WTT12L-B2542
Art No: 1072636
Functional principle: Photoelectric proximity sensor
Functional principle detail: Background suppression, Optical time-of-flight
Dimensions (W x H x D): 20 mm x 49.6 mm x 44.2 mm
Housing design (light emission): Rectangular
Sensing range max.: 50 mm … 1,800 mm
Sensing range: 100 mm … 1,800 mm
Type of light: Visible red light
Light source: Laser
Light spot size (distance): Ø 12 mm (1,800 mm)
Wave length: 658 nm
Adjustment: Single teach-in button (1 x)
Supply voltage UB: 10 V DC … 30 V DC
Ripple: < 5 Vpp
Current consumption: 70 mA
Switching output Push-pull: PNP/NPN
Number of switching outputs: 2 (Q, /Q)
Switching mode: Light/dark switching
Output current Imax.: ≤ 100 mA
Response time: ≤ 16.7 ms
Switching frequency: 30 Hz
Connection type: Male connector M12, 5-pin
Protection class: III
Enclosure rating: IP67
Ambient operating temperature: –35 °C … +50 °C
