Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Condition |

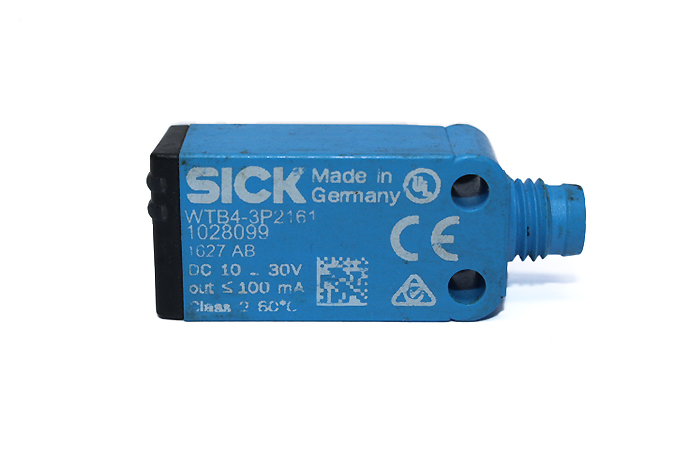

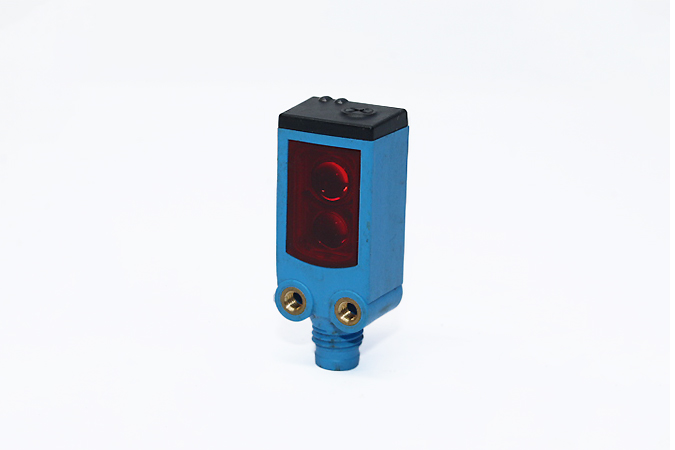

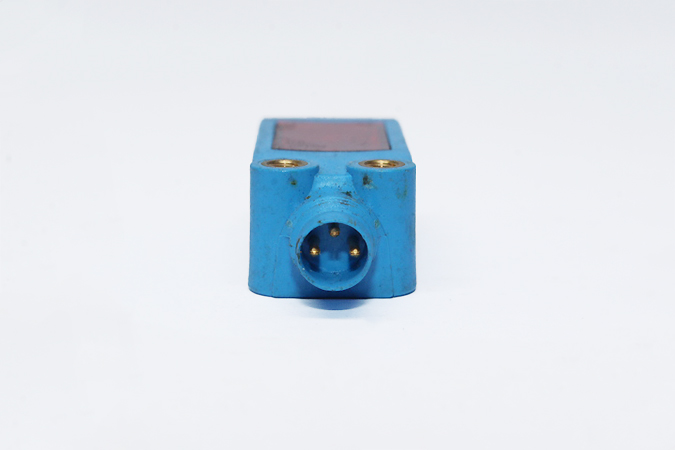

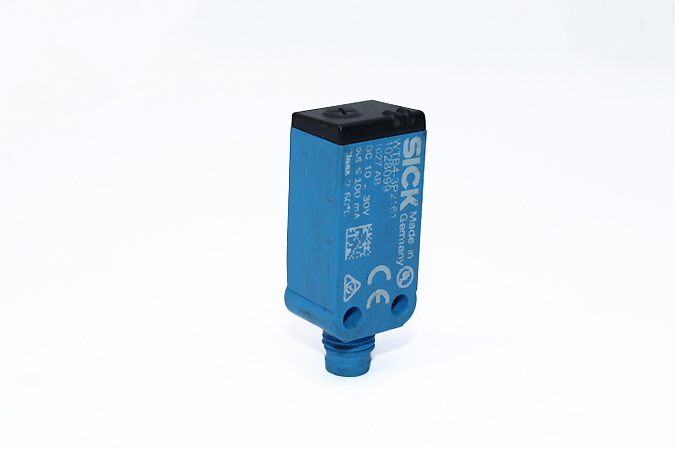

SICK WTB4-3P2161 Photoelectric proximity sensor 1028099
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WTB4-3P2161 Photoelectric proximity sensor 1028099
- SKU050275
32 $
1 in stock
Description
Manufacturer: SICK
Type: Photoelectric proximity sensor
Model: WTB4-3P2161
Art No: 1028099
Functional principle: Photoelectric proximity sensor
Functional principle detail: Background suppression
Sensing range max.: 4 mm … 150 mm
Sensing range: 15 mm … 150 mm
Light source: PinPoint LED
Type of light Visible: red light
Light spot size (distance): Ø 7 mm (50 mm)
Key LED: figures
Wave length: 650 nm
Adjustment: Potentiometer, 5 turns
Special applications: Detecting small objects
Supply voltage UB: 10 V DC … 30 V DC
Ripple: < 5 Vpp
Current consumption: 20 mA
Type: PNP
Switching mode: Light switching
Output current Imax.: ≤ 100 mA
Response time: < 0.5 ms
Switching frequency: 1,000 Hz
Connection: Connector M8, 3-pin
Protection class: III
Enclosure rating: IP67, IP66
Ambient operating temperature: –40 °C … +60 °C
