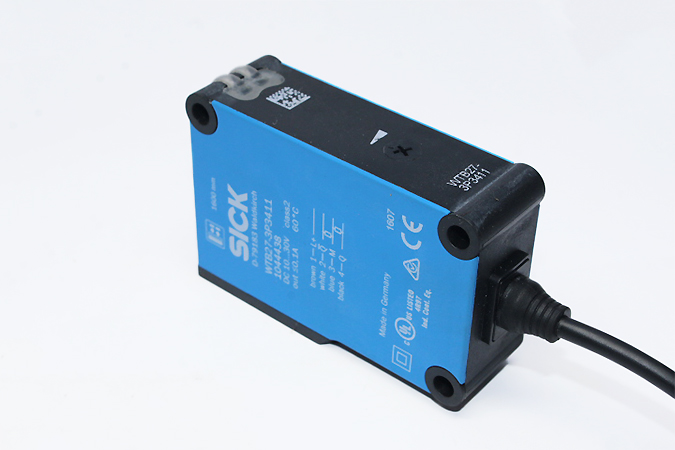

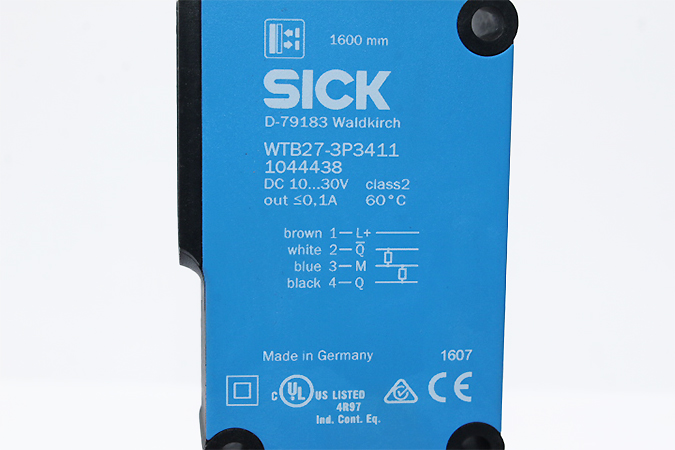

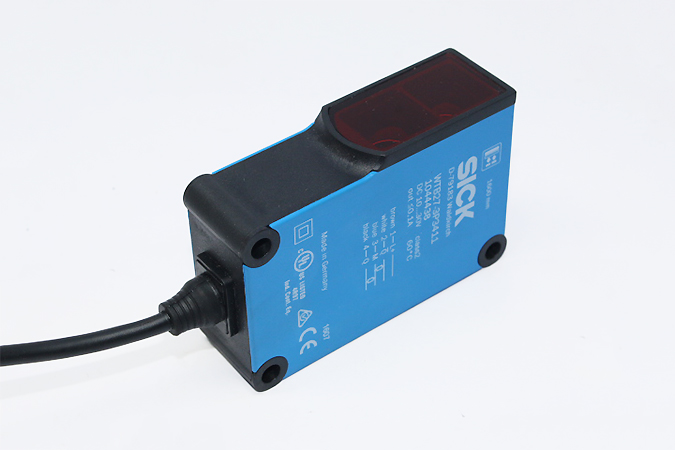

SICK WTB27-3P3411 Compact photoelectric sensors 1044438
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WTB27-3P3411 Compact photoelectric sensors 1044438
- SKU050219
90 $
1 in stock
Description
Manufacturer: SICK
Type: Compact photoelectric sensors
Model: WTB27-3P3411
Art No: 1044438
Functional principle: Photoelectric proximity sensor
Functional principle detail: Background suppression
Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm
Housing design (light emission): Rectangular
Sensing range max.: 30 mm … 1,600 mm
Sensing range: 100 mm … 1,600 mm
Type of light: Infrared light
Light source: LED
Light spot size (distance): Ø 25 mm (800 mm)
Wave length: 880 nm
Adjustment: Potentiometer
Supply voltage UB: 10 V DC … 30 V DC
Ripple: < 5 Vpp
Current consumption: 40 mA
Switching output: PNP
Output function: Complementary
Switching mode: Light/dark switching
Output current Imax.: ≤ 100 mA
Response time: ≤ 1.5 ms
Switching frequency: 350 Hz

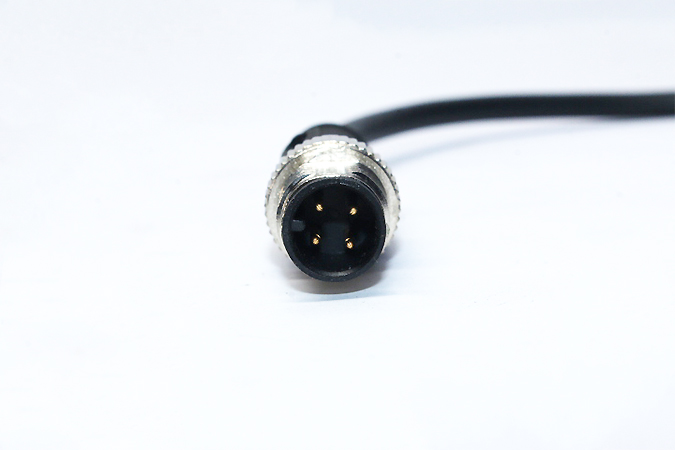

Connection type: Cable with M12 male connector, 4-pin, 270 mm
Enclosure rating: IP69K
Ambient operating temperature: –40 °C … +60 °C
