Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Condition |

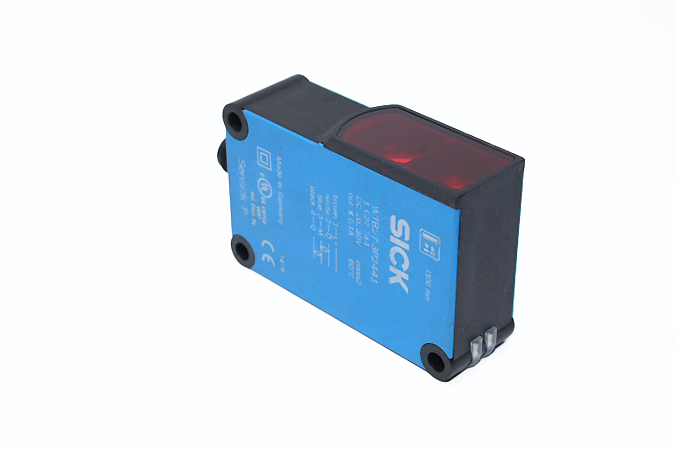

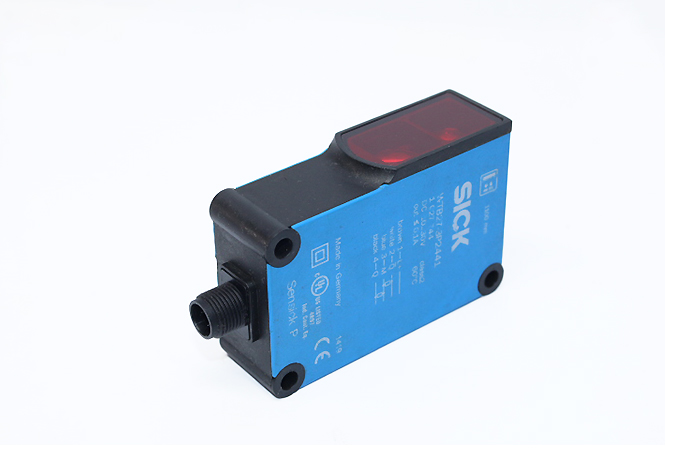

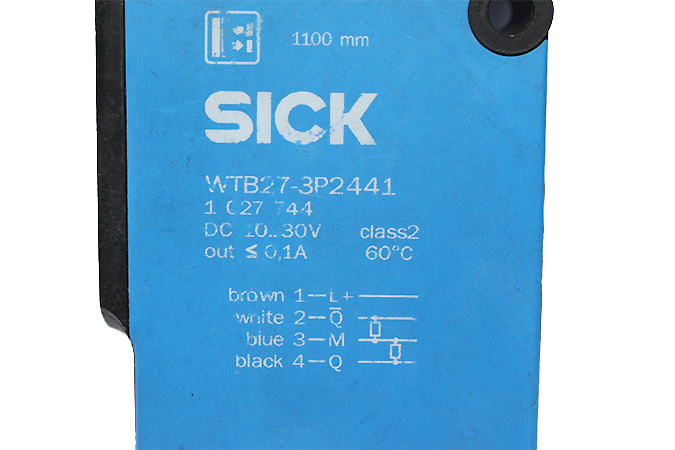

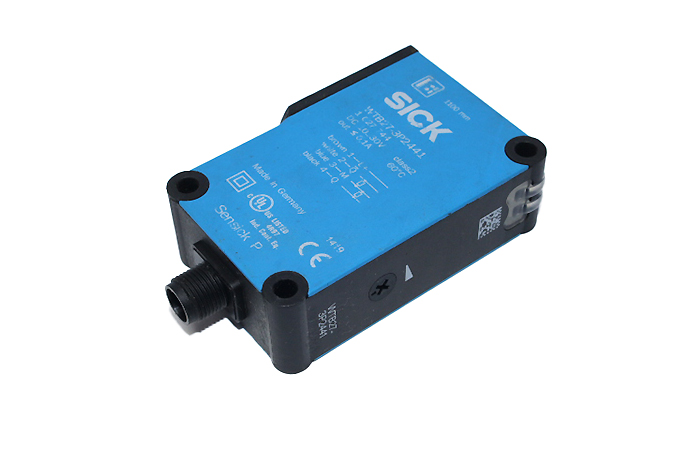

SICK WTB27-3P2441 Compact photoelectric sensors 1027744
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WTB27-3P2441 Compact photoelectric sensors 1027744
- SKU050273
Quote on request
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: SICK
Type: Compact photoelectric sensors
Model: WTB27-3P2441
Art No: 1027744
Functional principle: Photoelectric proximity sensor
Functional principle detail: Background suppression
Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm
Housing design (light emission): Rectangular
Sensing range max.: 30 mm … 1,100 mm
Sensing range: 100 mm … 1,100 mm
Type of light: Visible red light
Light source: LED
Light spot size (distance): Ø 15 mm (500 mm)
Wave length: 660 nm
Adjustment: Potentiometer
Supply voltage UB: 10 V DC … 30 V DC
Ripple: < 5 Vpp
Current consumption: 35 mA
Switching output: PNP
Output function: Complementary
Switching mode: Light/dark switching
Output current Imax.: ≤ 100 mA
Response time: ≤ 1.5 ms
Switching frequency: 350 Hz

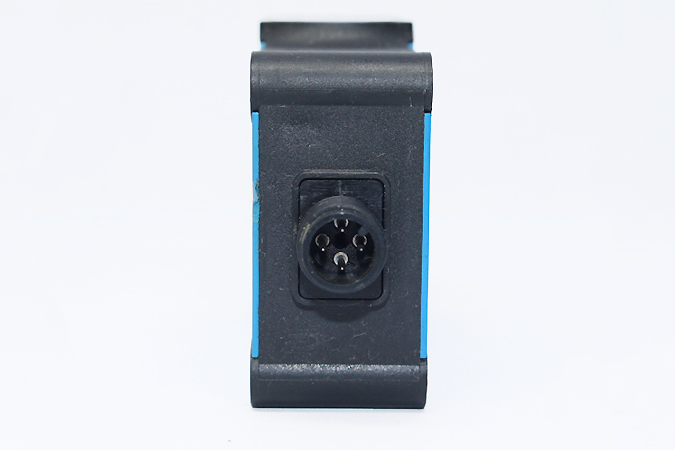

Connection type: Male connector M12, 4-pin
Protection class: II
Enclosure rating: IP69K
Ambient operating temperature: –40 °C … +60 °C
