Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Condition |

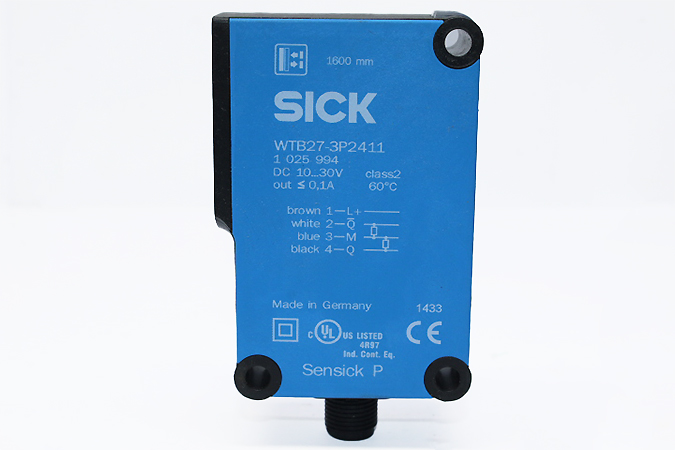

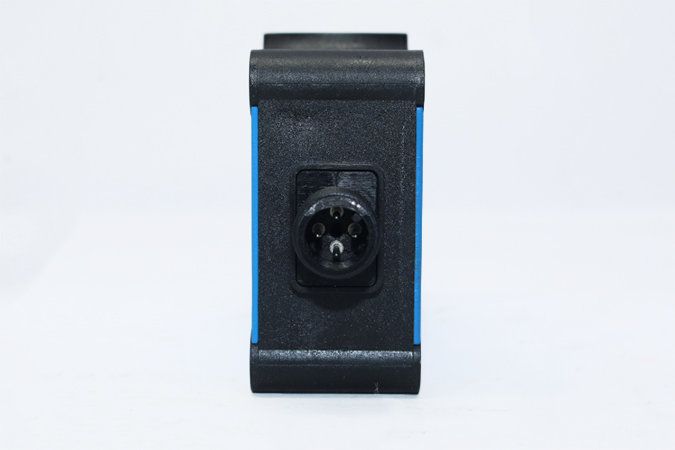

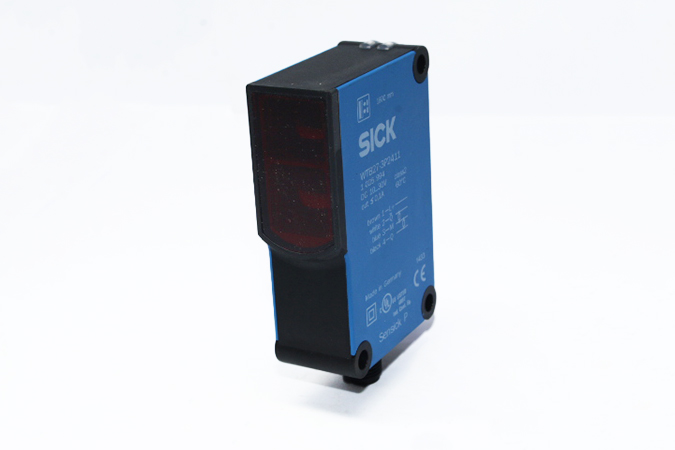

SICK WTB27-3P2411 Compact photoelectric sensors 1025994
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WTB27-3P2411 Compact photoelectric sensors 1025994
- SKU050012
84 $
3 in stock
Description
Manufacturer: SICK
Type: Compact photoelectric sensors
Model: WTB27-3P2411
Part No: 1025994
Functional principle: Photoelectric proximity sensor
Functional principle detail: Background suppression
Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm
Housing design (light emission): Rectangular
Sensing range max.: 30 mm … 1,600 mm 1)
Sensing range: 100 mm … 1,600 mm
Supply voltage: 10 V DC … 30 V DC
Ripple: < 5 Vpp
Current consumption: 40 mA
Switching output: PNP
Output function: Complementary
Switching mode: Light/dark switching
Signal voltage PNP HIGH/LOW Approx.: VS – 2.5 V / 0 V
Output current Imax.: ≤ 100 mA
