Specifications
| Manufacturer | SICK |
|---|---|
| Model | |
| Condition |

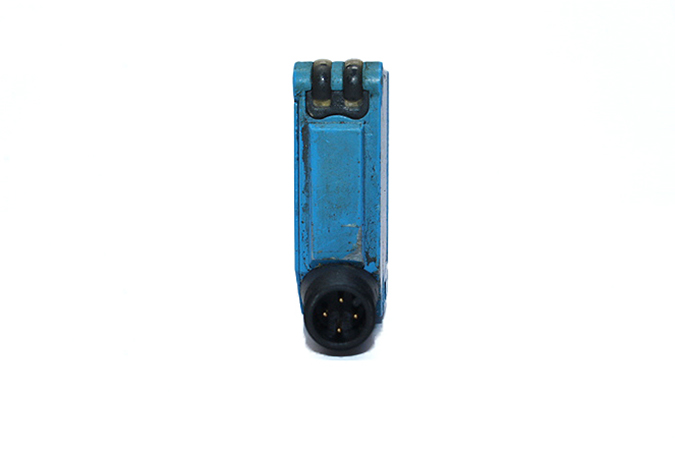

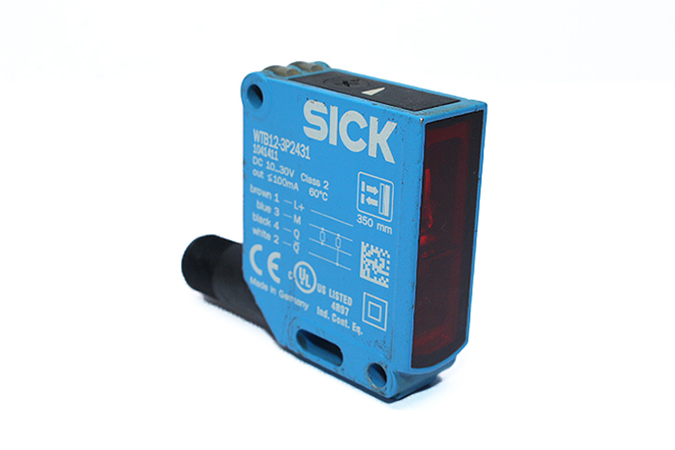

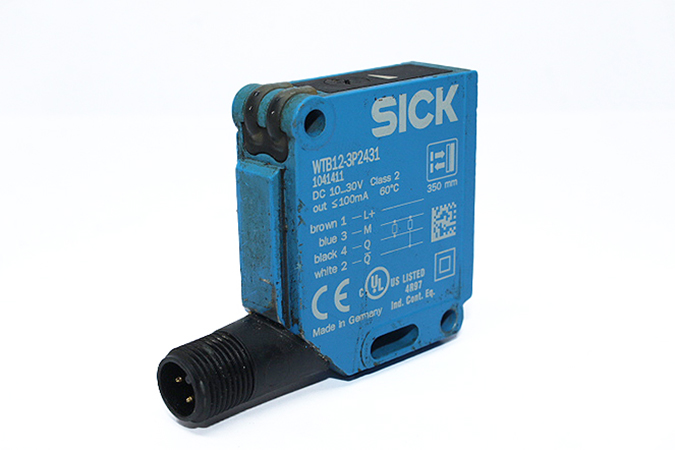

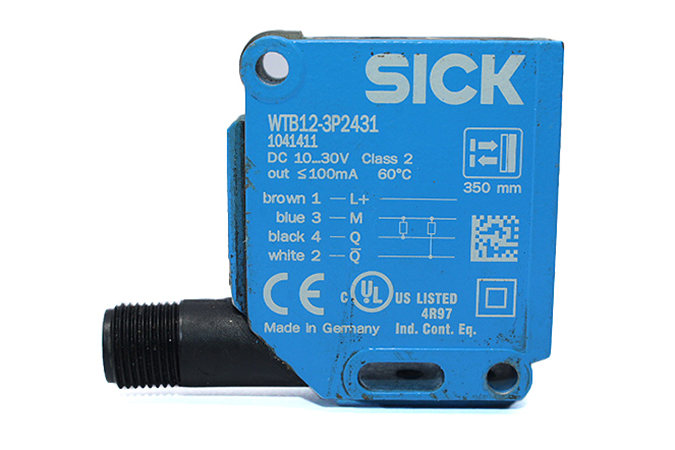

SICK WTB12-3P2431 Photoelectric sensors 1041411
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WTB12-3P2431 Photoelectric sensors 1041411
- SKU050199
Quote on request
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: SICK
Type: Photoelectric sensors
Model: VTE18-3P8240
Part No: 1041411
Functional principle: Photoelectric proximity sensor
Functional principle detail: Background suppression
Sensing range max.: 20 mm … 350 mm
Sensing range: 20 mm … 350 mm
Light source: LED
Type of light: Visible red light
Light spot size (distance): Ø 6 mm (200 mm)
Key LED: figures
Wave length: 640 nm
Adjustment: Potentiometer, 5 turns
Supply voltage UB: 10 V DC … 30 V DC
Ripple: < 5 Vpp
Current consumption: 45 mA
Type: PNP
Switching mode: Light/dark switching
Signal voltage: PNP HIGH/LOW > Uv – 2,5 V / ca. 0 V
Output current Imax.: ≤ 100 mA
Response time: ≤ 330 µs
Switching frequency: 1,500 Hz
Output function: Complementary
Connection: Male connector M12, 4-pin
Protection: class III
Enclosure rating: IP66, IP67, IP69K
Ambient operating temperature: –40 °C … +60 °C
