Specifications
| Weight | 0.250 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Condition |

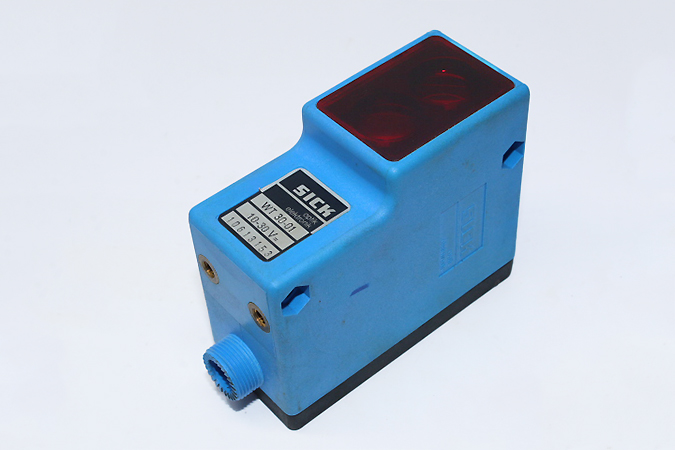

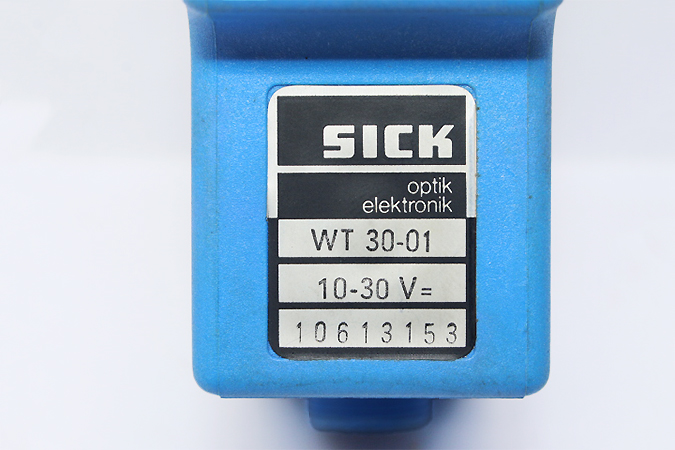

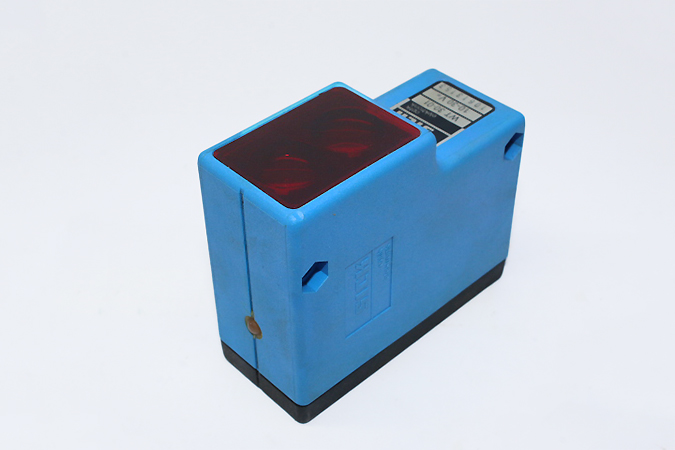

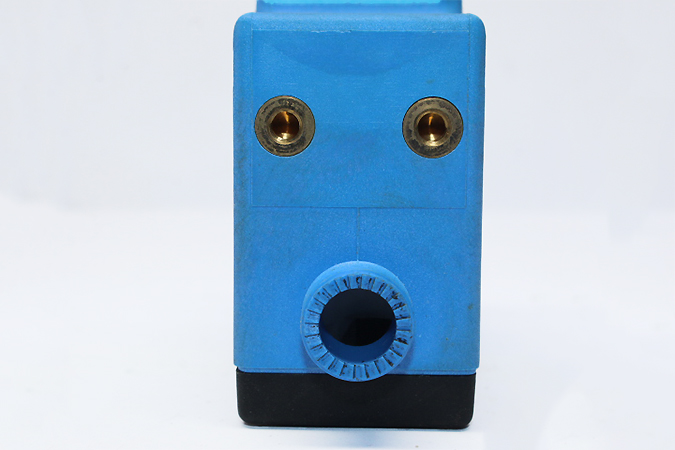

SICK WT30-01 Photoelectric proximity sensor 1004179
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WT30-01 Photoelectric proximity sensor 1004179
- SKU050009
65 $
1 in stock
Description
Manufacturer: SICK
Model: WT30-01
Type: Photoelectric proximity sensor
Part No: 1004179
Functional principle: Photoelectric proximity sensor
Functional principle detail: Background suppression
Dimensions (W x H x D): 36 mm x 85 mm x 72 mm
Sensing range max.: 30 mm … 300 mm
Sensing range: 30 mm … 300 mm
Type of light: Visible red light
Light source: LED
Adjustment: Potentiometer
Supply voltage: 10 V DC … 30 V DC
Ripple: < 10 Vpp
Current consumption: 80 mA
Response time: ≤ 15 ms
Enclosure rating: IP65
Ambient operating temperature: –25 °C … +55 °C
