Specifications
| Weight | 0.150 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Part Number | 6009473 |
| Condition |

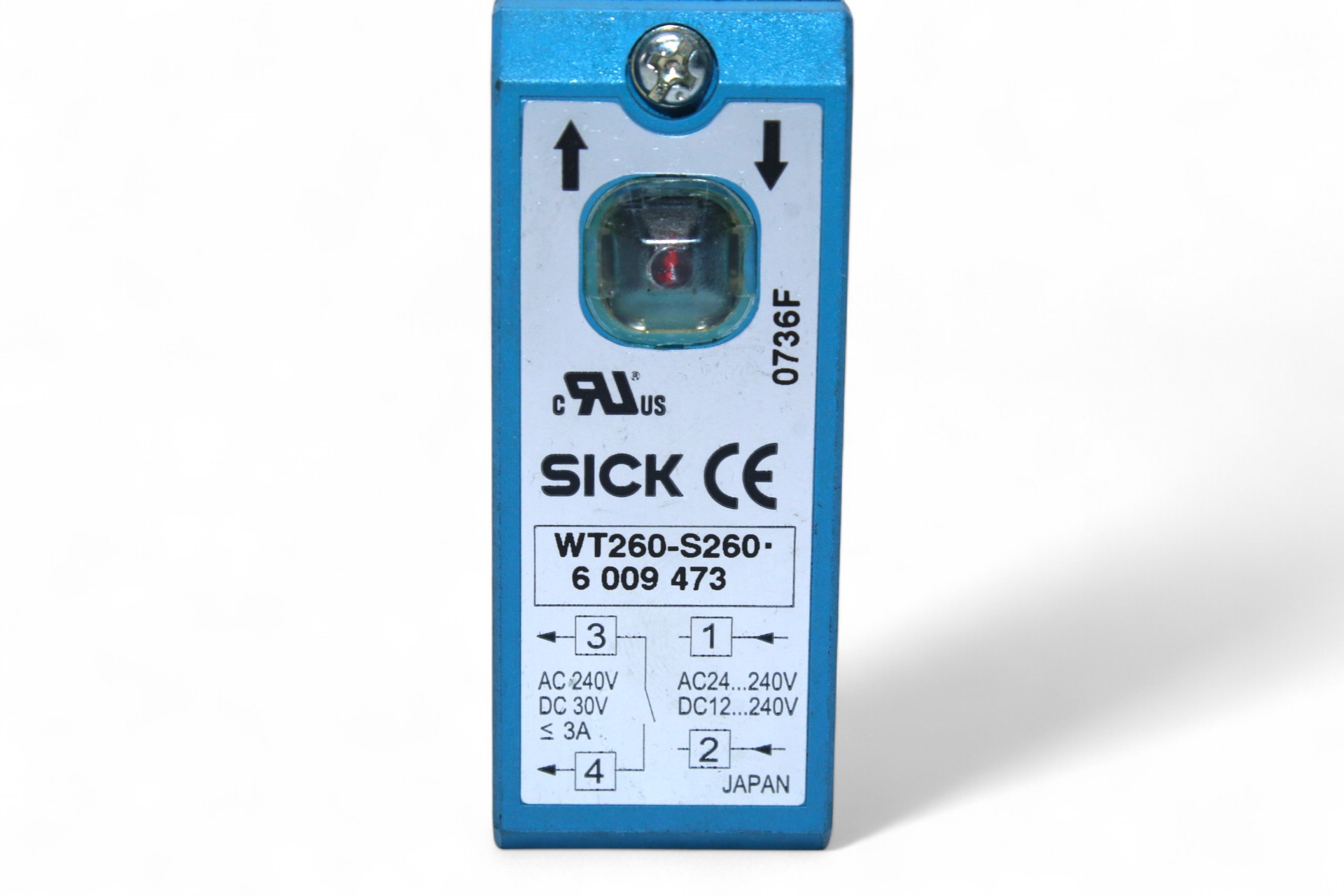

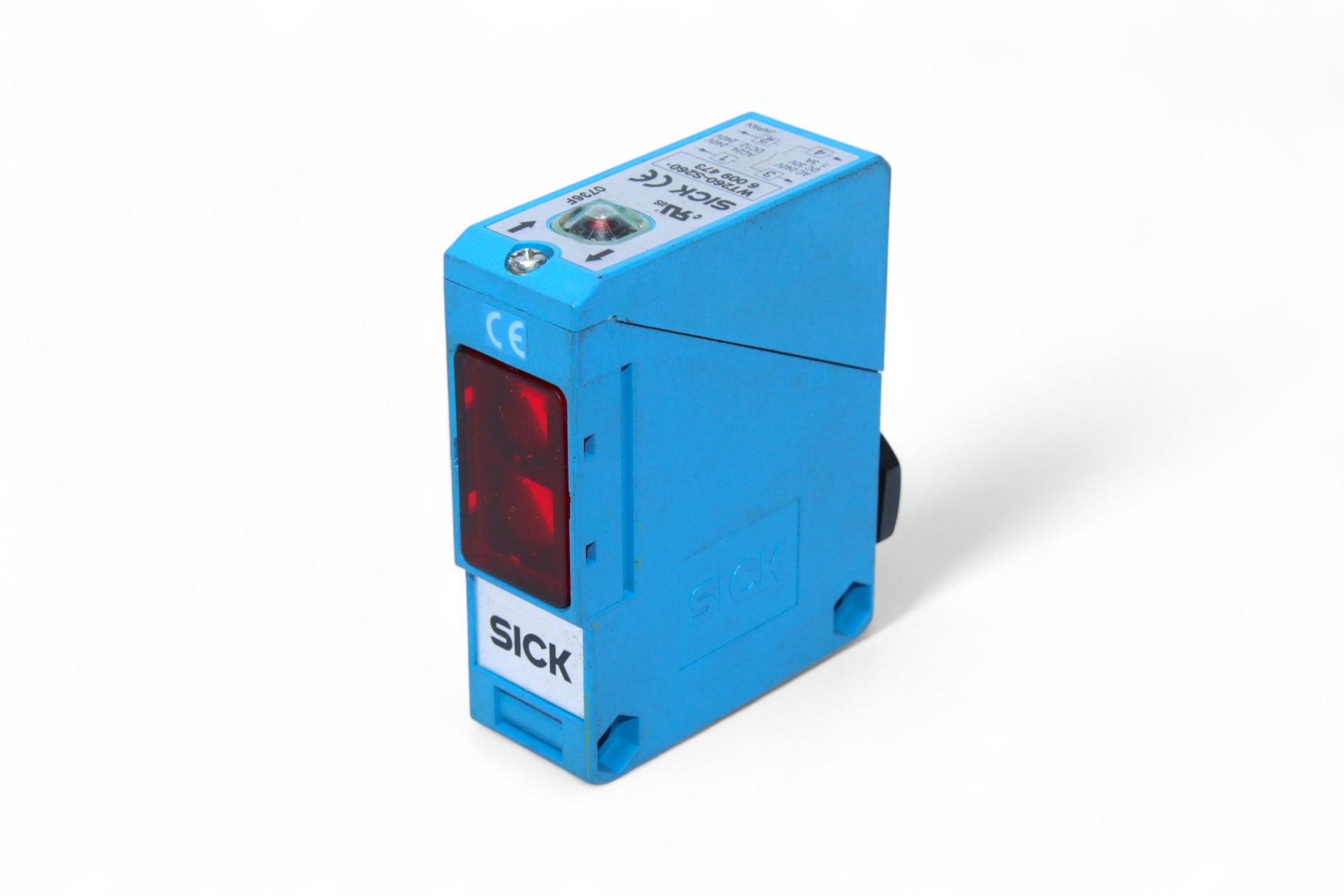

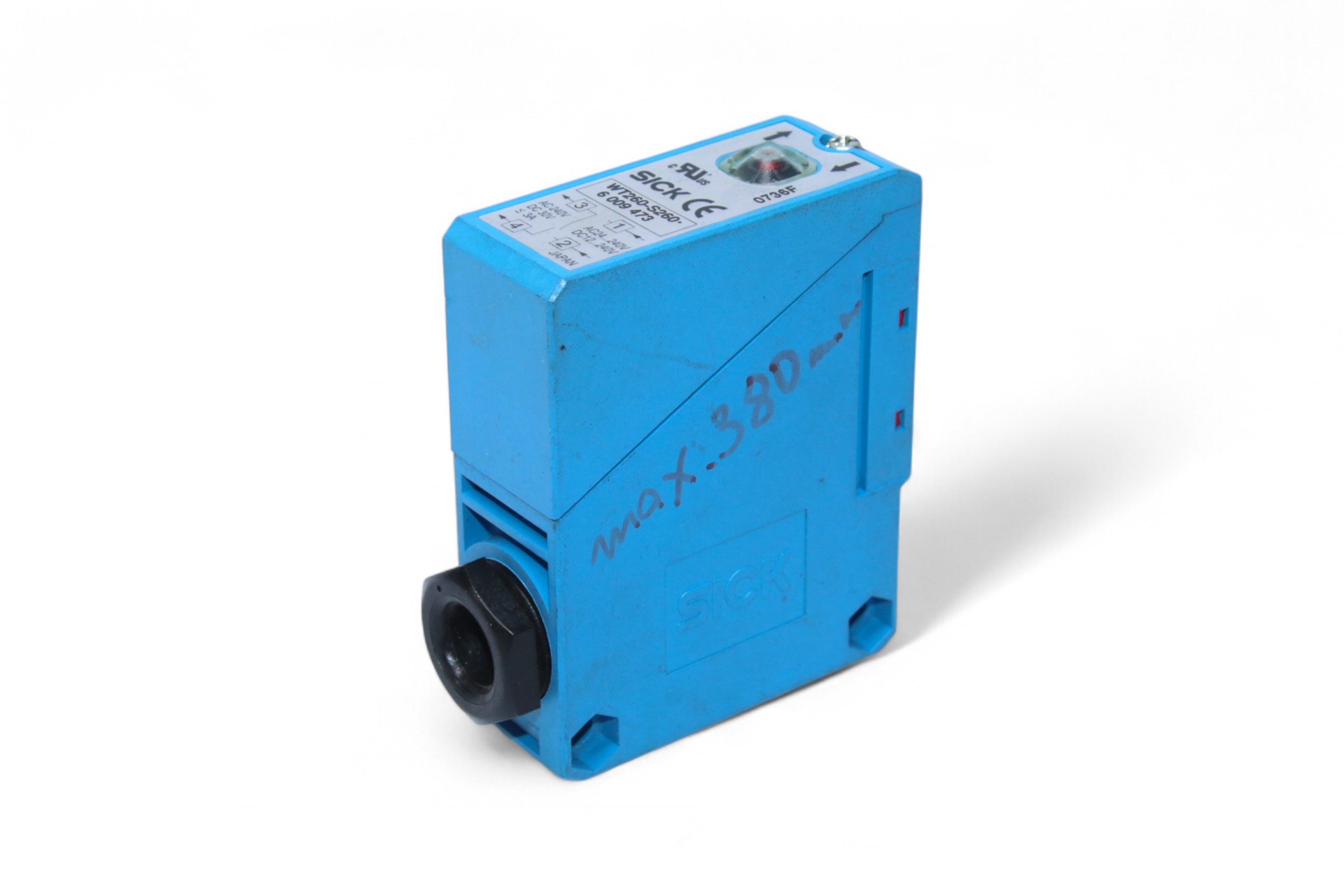

SICK WT260-S260 Photoelectric Proximity Sensor 6009473
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelWT260-S260
- SKU061823
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: SICK
Model: WT260-S260
Type: Photoelectric Proximity Sensor
Part No: 6009473
Technical Specifications
Sensing Range Max.: 0 mm to 380 mm
Sensing Range: 0 mm to 380 mm
Supply Voltage: 12 V DC to 240 V DC / 24 V AC to 240 V AC
Focus: Approx. 1.5°
Type of Light: Infrared light
Light Source: LED
Power Consumption: ≤ 5 VA
Output Function: Normally Open (NO)
Switching Mode: Light/dark switching
Switching Current (Switching Voltage): 3 A (240 V AC) / 3 A (30 V DC)
Response Time: ≤ 20 ms
Switching Frequency: 25 Hz
Enclosure Rating: IP66
Dimensions (W × H × D): 25 mm × 77.8 mm × 63 mm
