Specifications
| Weight | 0.4 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Condition |

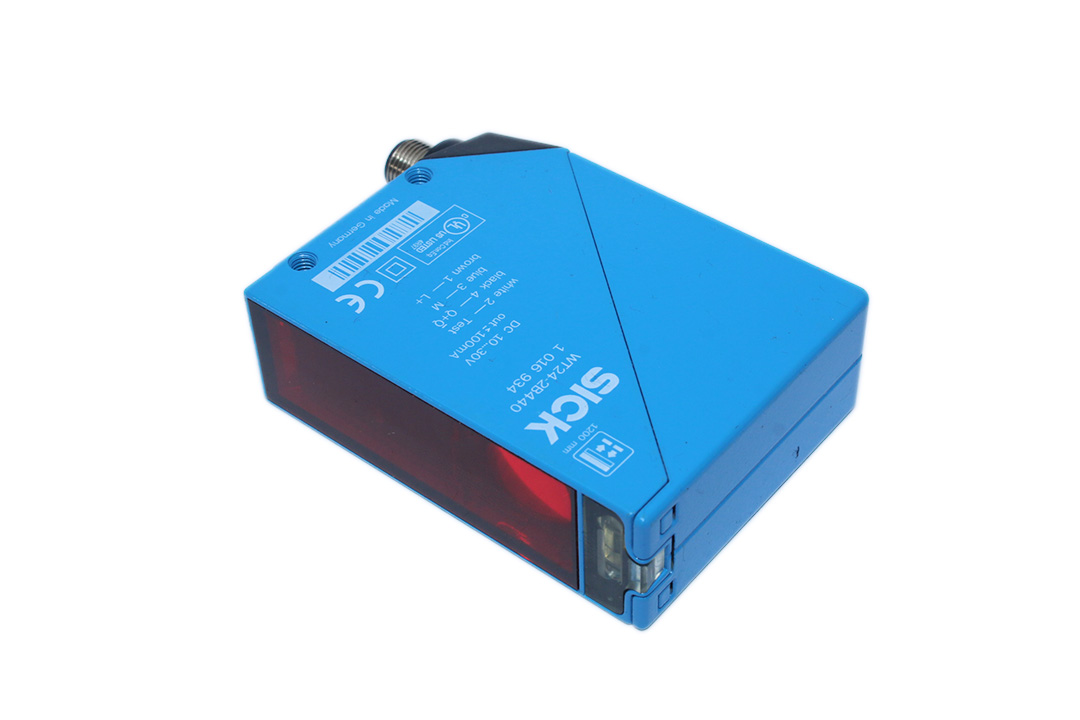

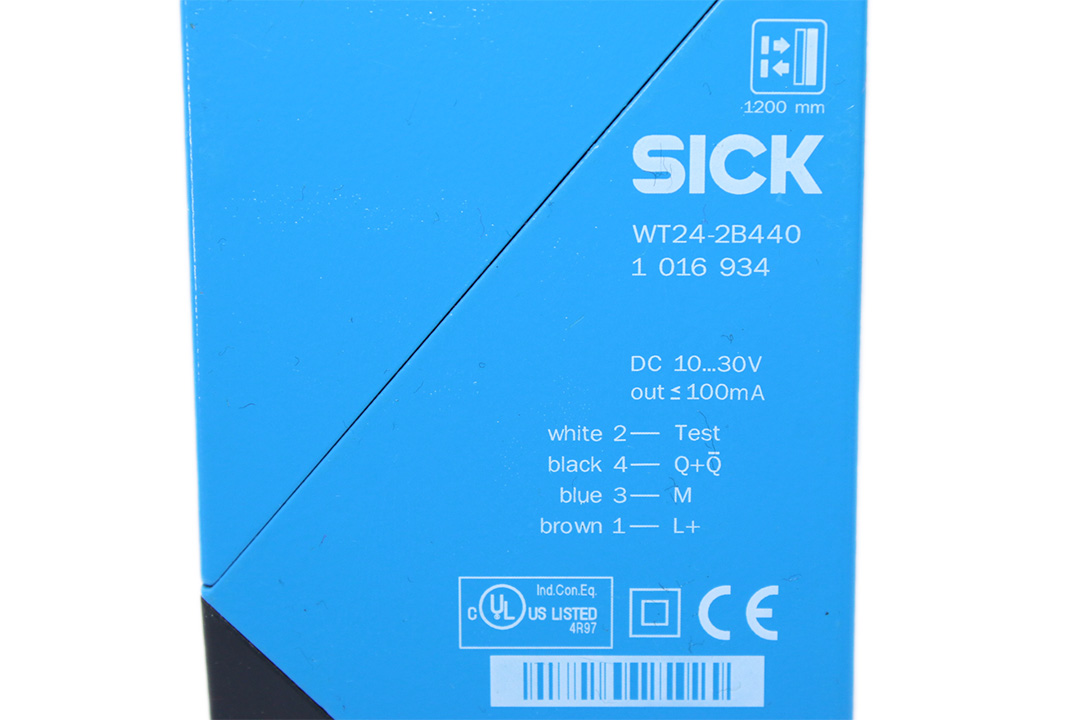

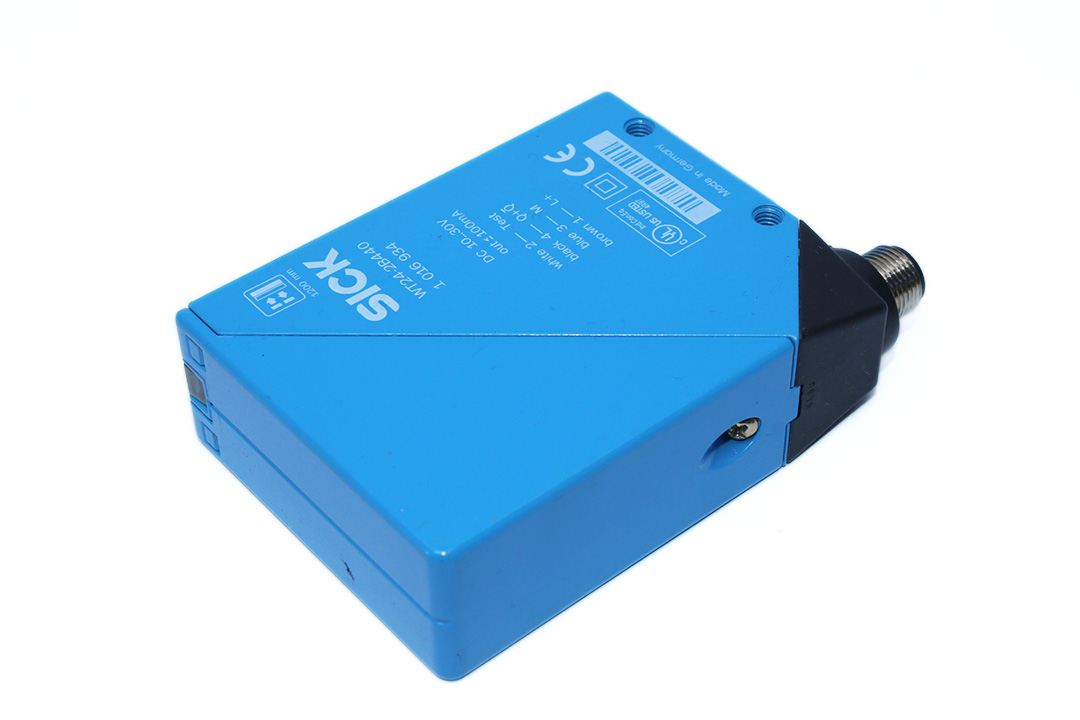

SICK WT24-2B440 Photoelectric proximity sensor 1016934
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WT24-2B440 Photoelectric proximity sensor 1016934
- SKU058294
85 $
1 in stock
Description
Manufacturer: SICK
Type: Photoelectric proximity sensor
Model: WT24-2B440
Part No: 1016934
Functional principle: Photoelectric proximity sensor
Functional principle detail: Background suppression
Dimensions (W x H x D): 27 mm x 87.5 mm x 65 mm
Sensing range max.: 100 mm … 1,200 mm
Sensing range: 100 mm … 1,200 mm
Light spot size (distance): Ø 40 mm (1,200 mm)
Supply voltage UB: 10 V DC … 30 V DC
Ripple: < 5 Vpp
Current consumption: 50 mA
Switching output: NPN, PNP
Switching mode: Light/dark switching
Switching mode selector: Selectable via PNP/NPN selector, selectable via light/dark selector
Output current Imax.: ≤ 100 mA
Response time: ≤ 500 µs
Switching frequency: 1,000 Hz

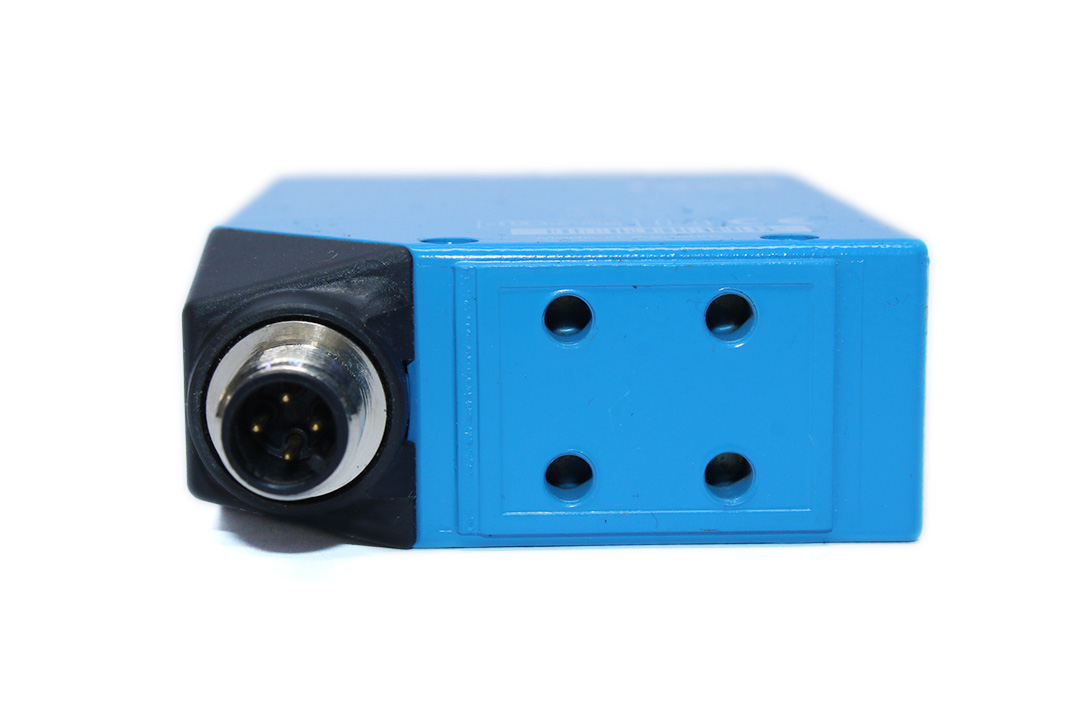

Connection type: Male connector M12, 4-pin
Enclosure rating: IP69K
Test input sender off: TE to 0 V
Ambient operating temperature: –40 °C … +60 °C
