Specifications
| Manufacturer | SICK |
|---|---|
| Model | |
| Condition |

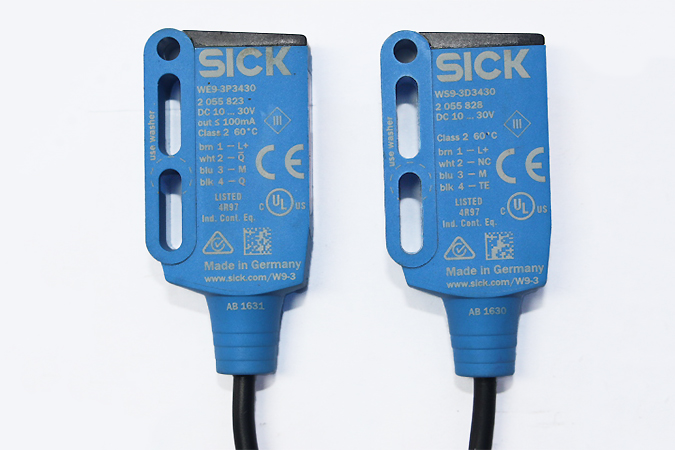

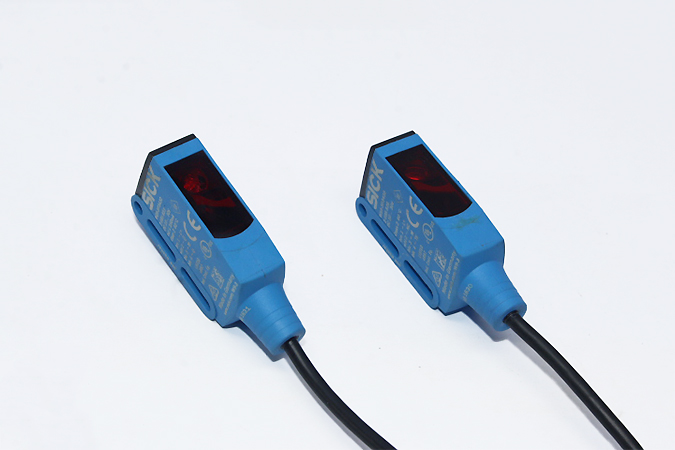

SICK WSE9-3P3430 Photoelectric sensors 1049078
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WSE9-3P3430 Photoelectric sensors 1049078
- SKU050150
100 $
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: SICK
Type: Photoelectric sensors
Model: WSE9-3P3430
Part No: 1049078
Sensing range max.: 0 m … 10 m
Sensing range: 0 m … 7 m
Type of light: Visible red light
Adjustment: None
Supply voltage UB: 10 V DC … 30 V DC
Ripple: < 5 Vpp
Current consumption: 30 mA
Switching output: PNP
Output function: Complementary
Switching mode: Light/dark switching
Output current Imax.: ≤ 100 mA
Response time: < 0.5 ms
Switching frequency: 1,000 Hz

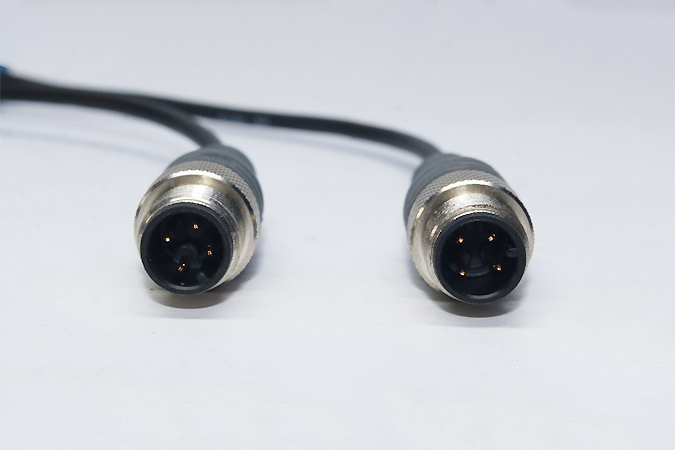

Connection type: Cable with M12 male connector, 4-pin, 120 mm
Protection class: III
Enclosure rating: IP66, IP67, IP69K
Ambient operating temperature: –40 °C … +60 °C
