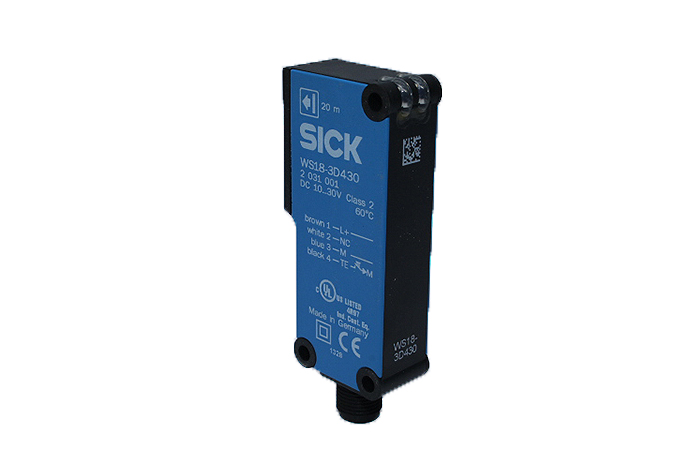

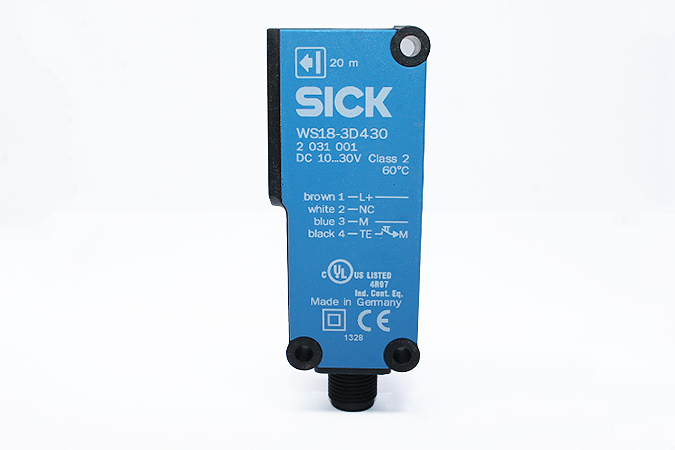

SICK WS18-3D430 Through-beam photoelectric sensor 2031001
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WS18-3D430 Through-beam photoelectric sensor 2031001
- SKU050160
158 $
5 in stock
Description
Manufacturer: SICK Type: Through-beam photoelectric sensor Model: WS18-3D430 Part No: 2031001 Sensor/detection principle: Through-beam photoelectric sensor Dimensions (W x H x D): 17.6 mm x 75.5 mm x 33.5 mm Housing design (light emission): Rectangular, Slim Sensing range max.: 0 m … 20 m Type of light: Visible red light Light source: LED Wave length: 645 nm Angle of dispersion: 1.5 ° Adjustment: Potentiometer, 1-turn Light spot size (distance): Ø 450 mm (15 m) Supply voltage: 10 V DC … 30 V DC Ripple: < 5 Vpp Power consumption, sender: < 45 mA Power consumption, receiver: < 35 mA Output type: PNP Output function: Complementary Switching mode: Light/dark-switching Output current Imax.: 100 mA
