Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | SICK |
| Model | SICK WS/WE160-P430 Through-beam photoelectric sensor 6009557 |
| Condition |

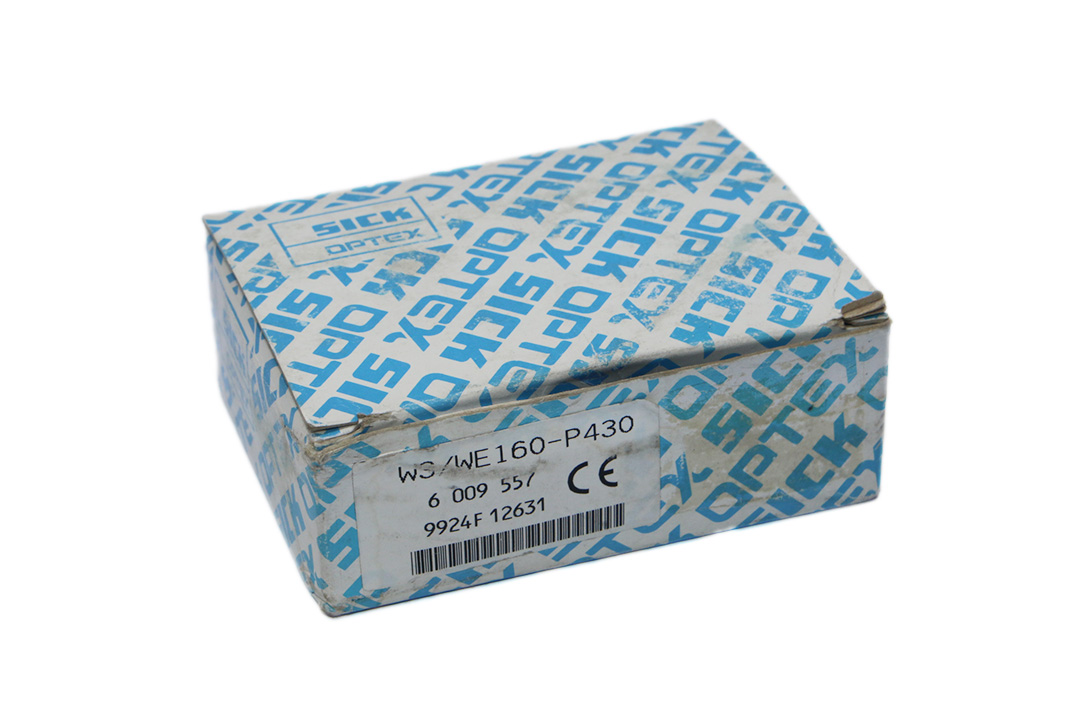

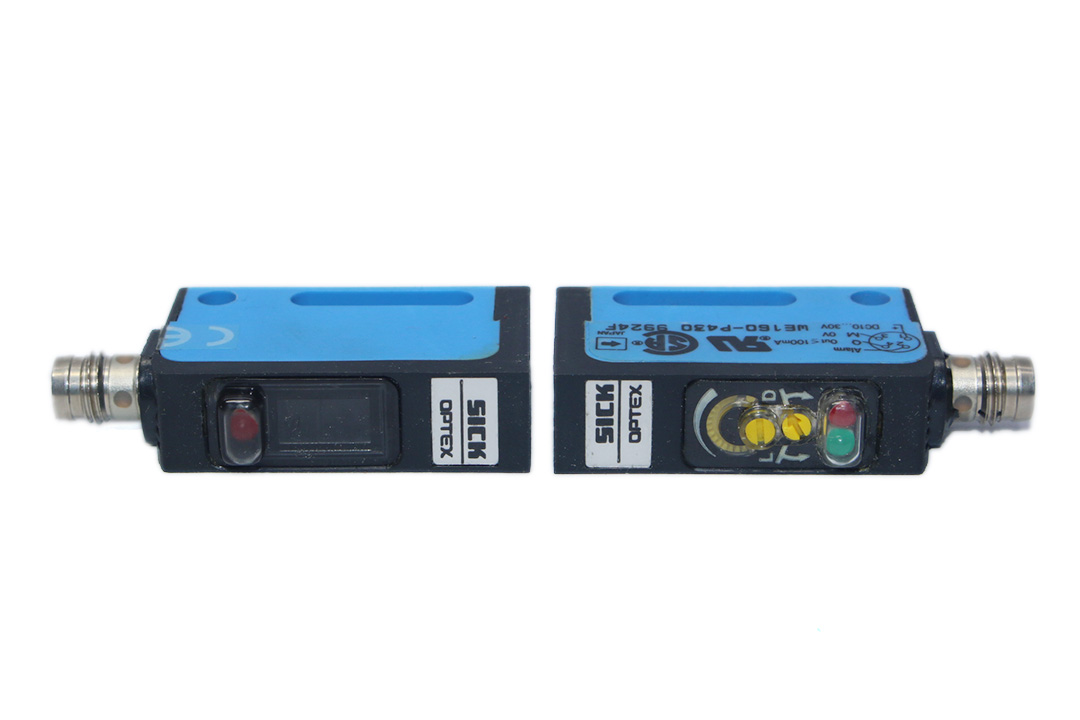

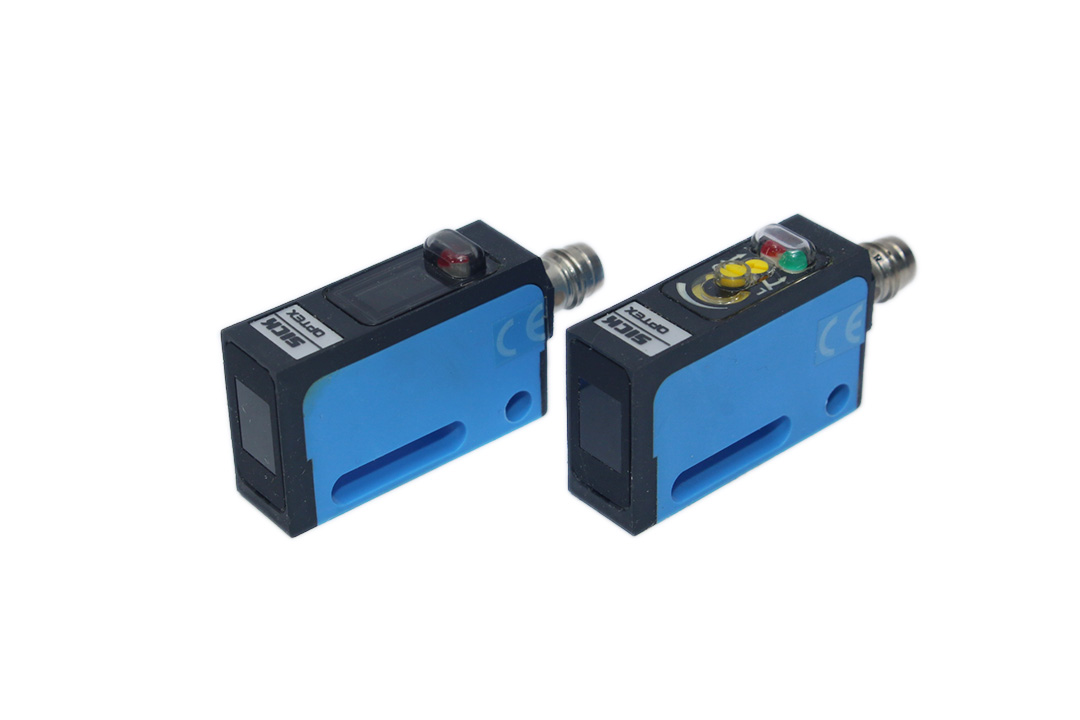

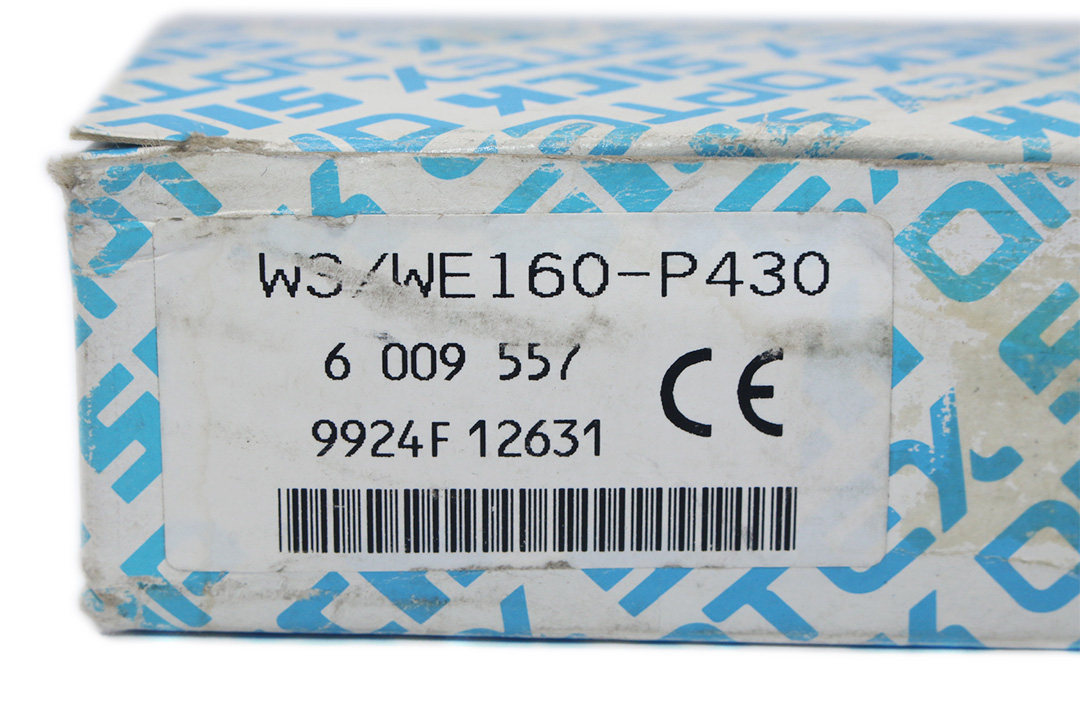

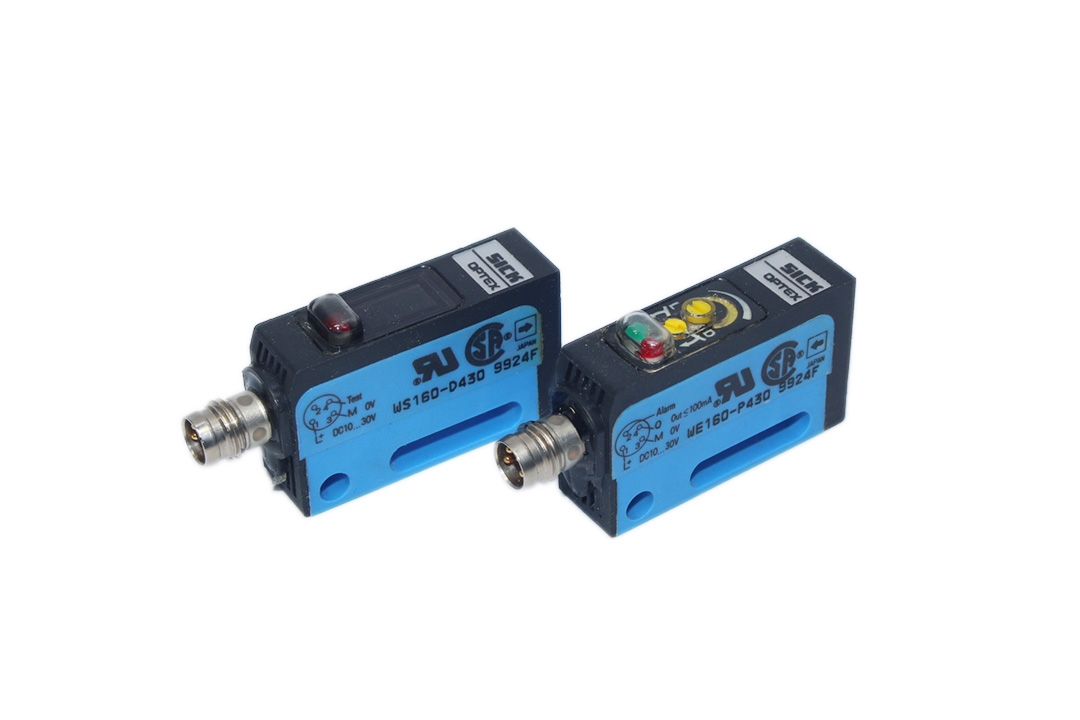

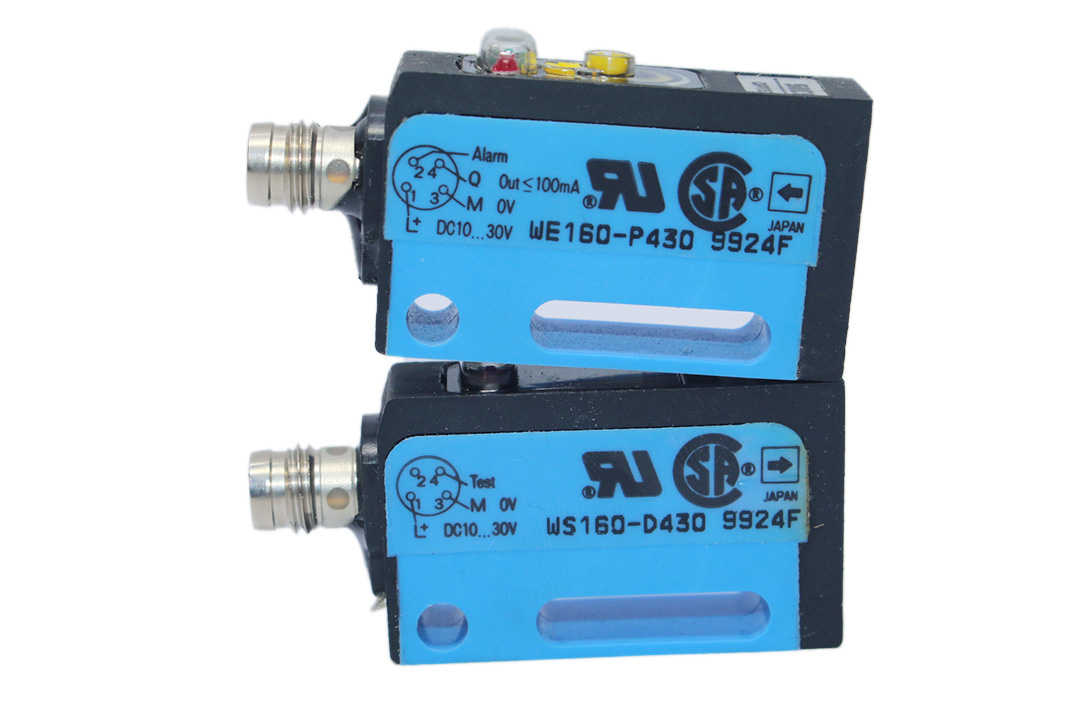

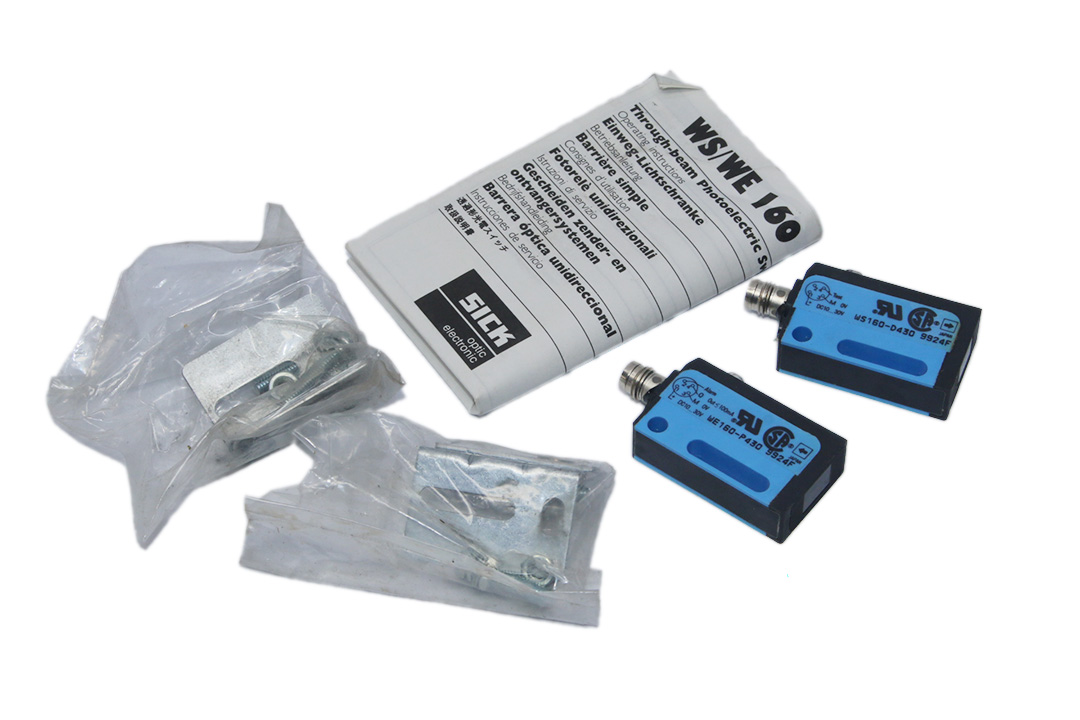

SICK WS/WE160-P430 Through-beam photoelectric sensor 6009557
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK WS/WE160-P430 Through-beam photoelectric sensor 6009557
- SKU058297
158 $
1 in stock
Description
Manufacturer: SICK
Type: Through-beam photoelectric sensor
Model: WS/WE160-P430
Part No: 6009557
Functional principle: Through-beam photoelectric sensor
Dimensions (W x H x D): 11 mm x 23 mm x 38 mm
Housing design (light emission): Rectangular
Sensing range max.: 15 m
Sensing range: 0 m … 11 m
Type of light: Visible red light
Light source: LED
Wave length: 680 nm
Supply voltage: 10 V DC … 30 V DC
Ripple: ± 10 %
Current consumption: 25 mA
Switching outpu: PNP
Switching mode: Light/dark switching
Switching mode selector: Selectable via light/dark rotary switch
Response time: ≤ 0.5 ms

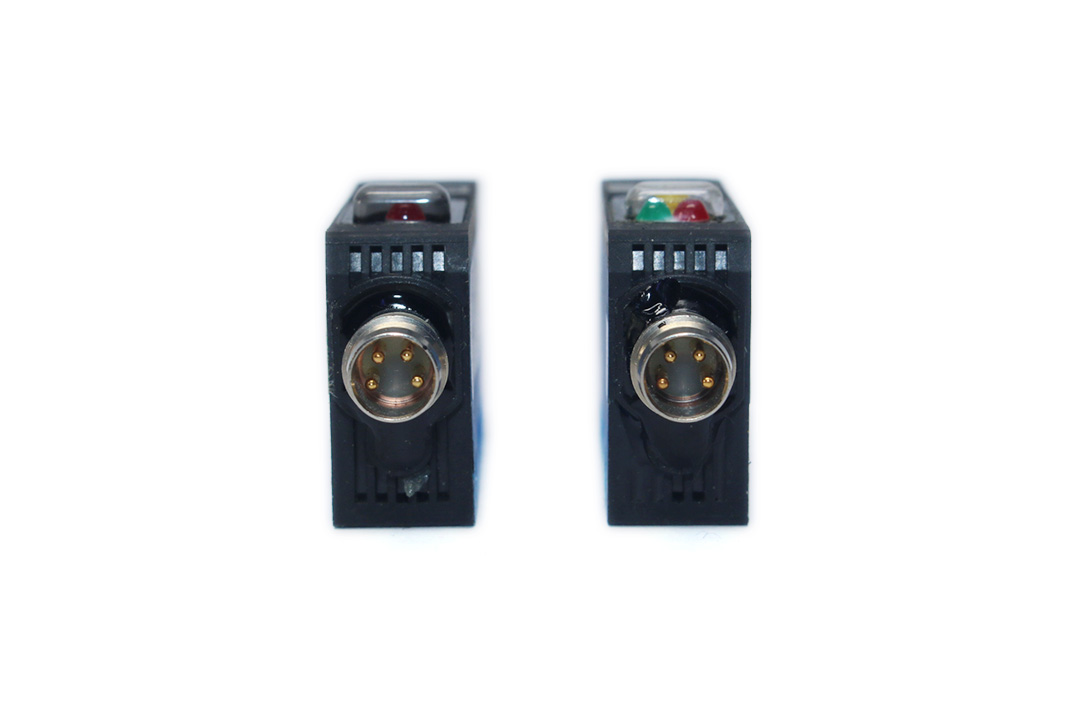

Connection type: Male connector M8, 4-pin
Housing material: Plastic, PBT
Optics material: Plastic, PMMA
Enclosure rating: IP67
Ambient operating temperature: –25 °C … +55 °C
