Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Condition |

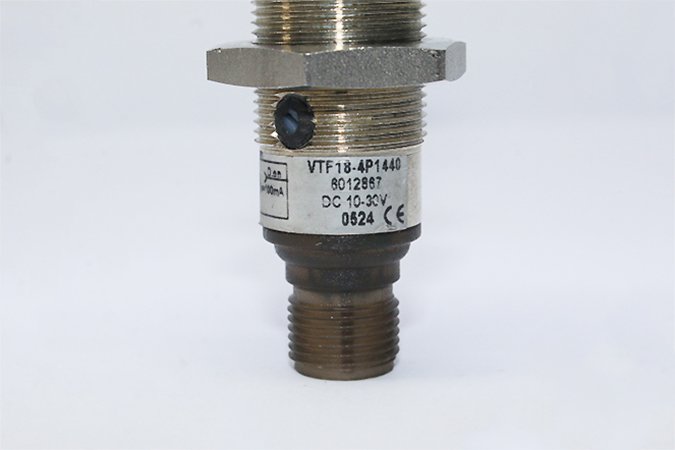

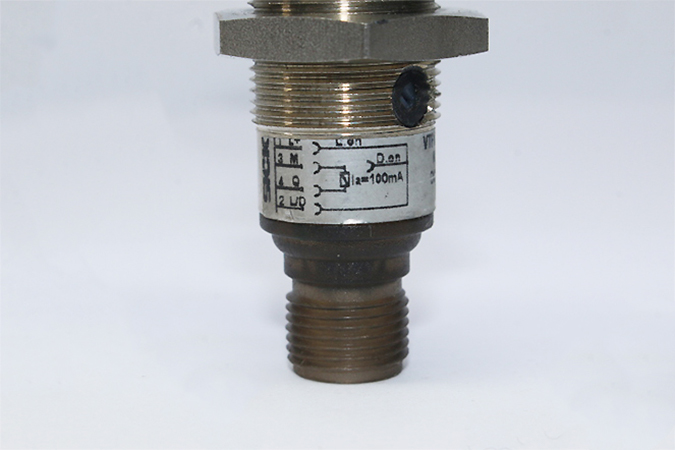

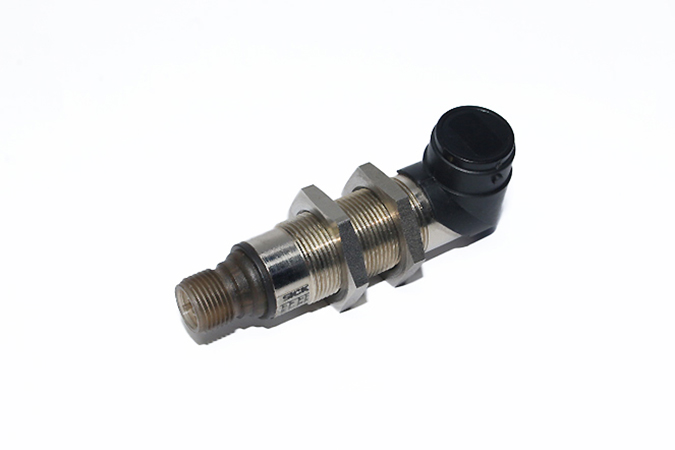

SICK VTF18-4P1440 Photoelectric proximity sensor 6012867
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK VTF18-4P1440 Photoelectric proximity sensor 6012867
- SKU050252
53 $
2 in stock
Description
Manufacturer: SICK
Type: Photoelectric proximity sensor
Model: VTF18-4P1440
Part No.: 6012867
Functional principle: Photoelectric proximity sensor
Functional principle detail: Background blanking
Dimensions (W x H x D): 18 mm x 18 mm x 75 mm
Sensing range max.: 3 mm … 100 mm
Sensing range: 3 mm … 90 mm
Type of light: Infrared light
Light source: LED
Light spot size (distance): Ø 3 mm (50 mm)
Adjustment: Potentiometer, 270° (Sensing range)
Supply voltage UB: 10 V DC … 30 V DC
Ripple: ± 10 %
Current consumption: 30 mA
Switching output: PNP
Switching mode: Light/dark switching
Switching mode selector: Selectable via L/D control cable
Output current Imax.: ≤ 100 mA
Response time: ≤ 2 ms
Switching frequency: 250 Hz

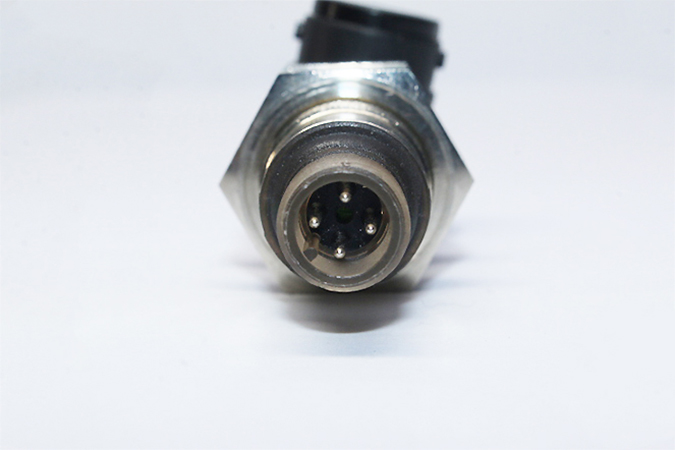

Connection type: Male connector M12, 4-pin
Protection class: III
Enclosure rating: IP67
Ambient operating temperature: –25 °C … +70 °C
