Specifications
| Manufacturer | SICK |
|---|---|
| Model | |
| Condition |

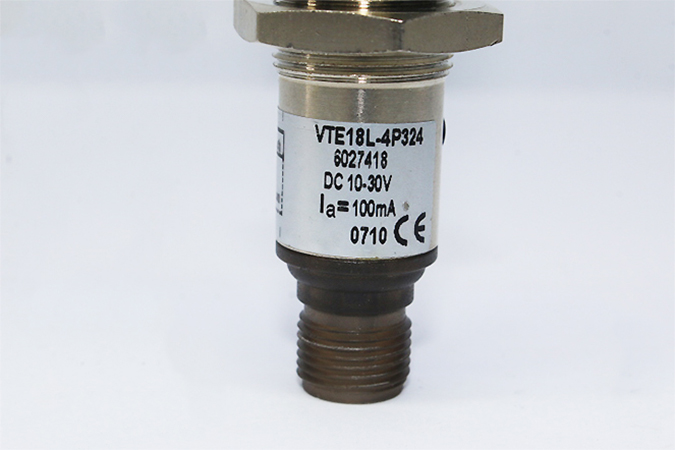

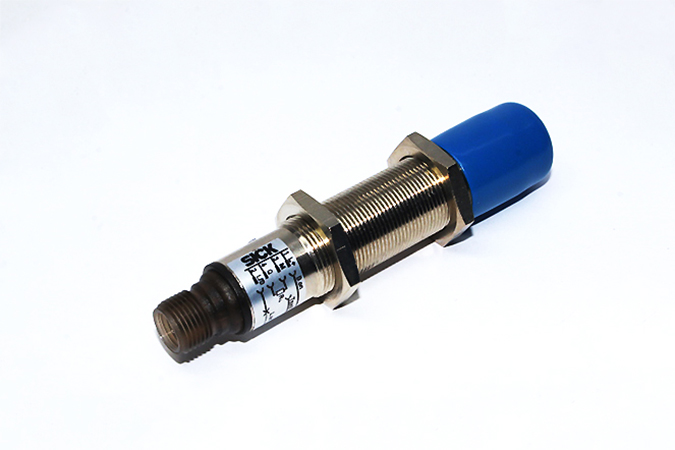

SICK VTE18L-4P324 Photoelectric sensors-Laser 6027418
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK VTE18L-4P324 Photoelectric sensors-Laser 6027418
- SKU050190
28 $
2 in stock
Description
Manufacturer: SICK
Type: Photoelectric sensors-Laser
Model: VTE18L-4P324
Part No: 6027418
Sensing range max.: 0 mm … 400 mm
Sensing range: 5 mm … 300 mm
Type of light: Visible red light
Light source: Laser
Adjustment: Cable, Single teach-in button (Sensing range, Sensing range)
Supply voltage UB: 10 V DC … 30 V DC
Ripple: ± 10 %
Current consumption: 30 mA
Switching output: PNP
Switching mode: Light/dark switching
Switching mode selector: Selectable via control input C
Output current Imax.: ≤ 100 mA
Response time: ≤ 0.625 ms
Switching frequency: 800 Hz

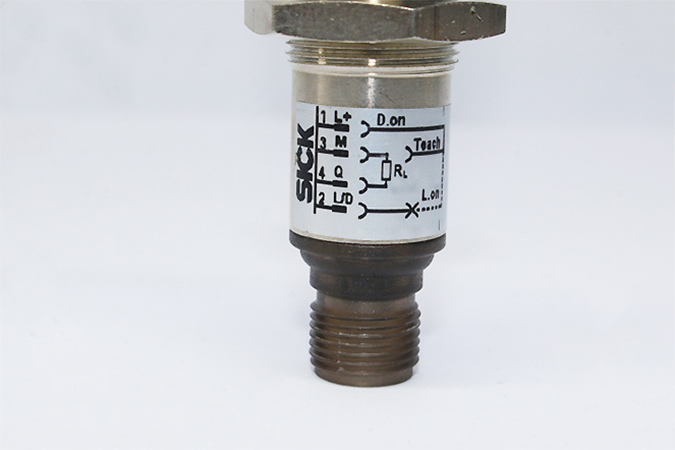

Connection type: Male connector M12, 4-pin
Protection class: III
Enclosure rating: IP67
Ambient operating temperature: –15 °C … +55 °C
