Specifications
| Manufacturer | SICK |
|---|---|
| Model | |
| Condition |

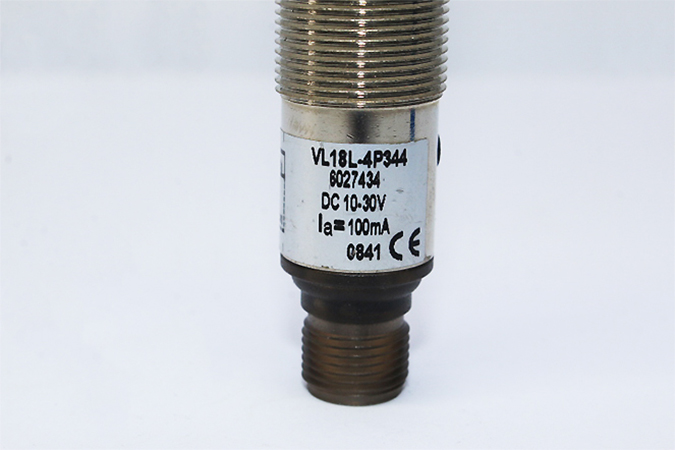

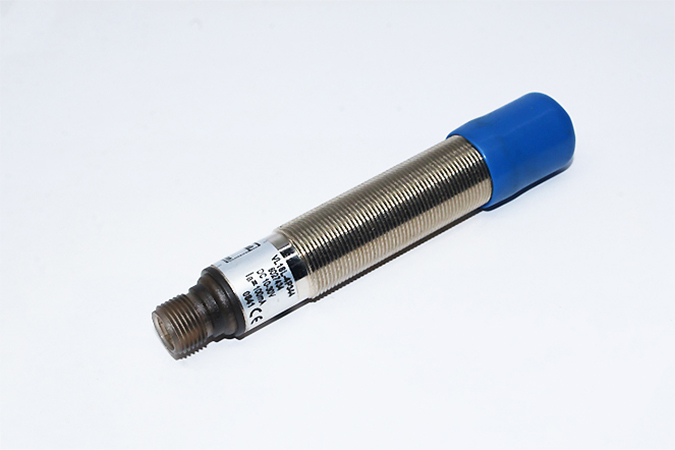

SICK VL18L-4P344 Photoelectric sensors-Laser 6027434
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK VL18L-4P344 Photoelectric sensors-Laser 6027434
- SKU050187
157 $
1 in stock
Description
Manufacturer: SICK
Type: Photoelectric sensors-Laser
Model: VL18L-4P344
Part No: 6027434
Sensing range max.: 0.1 m … 35 m
Sensing range: 0.1 m … 30 m
Type of light: Visible red light
Light source: Laser
Adjustment: Cable, Single teach-in button (Sensitivity, Sensitivity)
Supply voltage UB: 10 V DC … 30 V DC
Ripple: ± 10 %
Current consumption: 20 mA
Switching output: PNP
Switching mode: Light/dark switching
Switching mode: selector Selectable via control input C
Output current Imax.: ≤ 100 mA
Response time: ≤ 0.625 ms
Switching frequency: 800 Hz

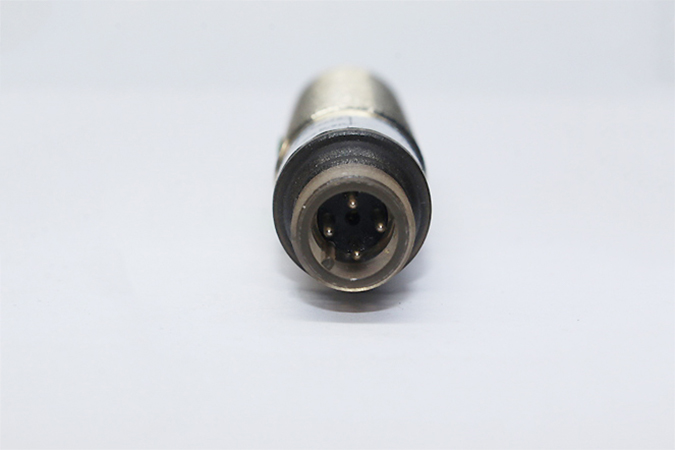

Connection type: Male connector M12, 4-pin
Enclosure rating: IP67
Ambient operating temperature: –15 °C … +55 °C
