Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Condition |

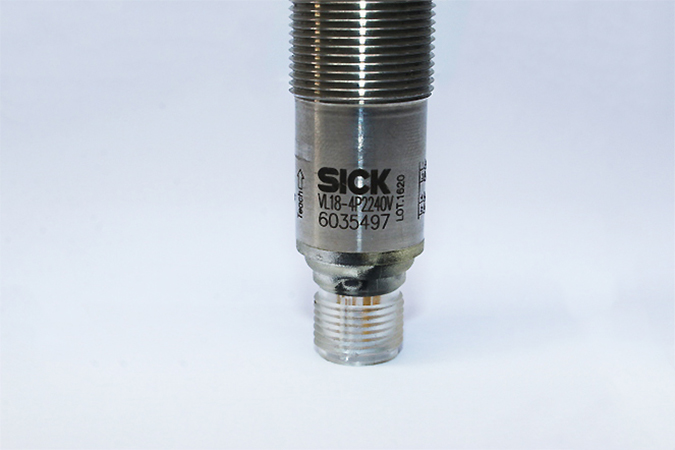

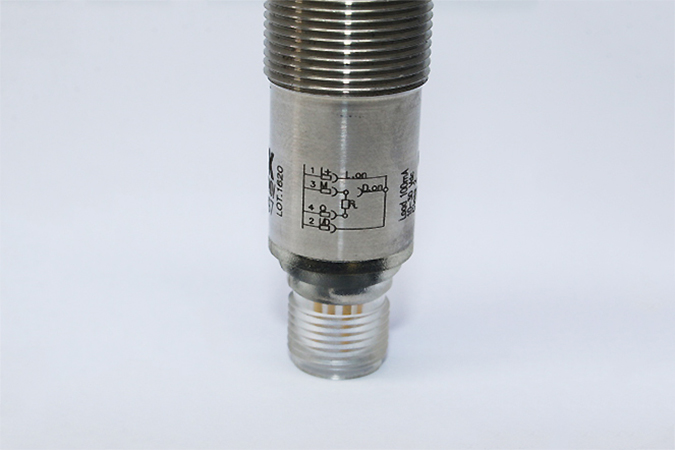

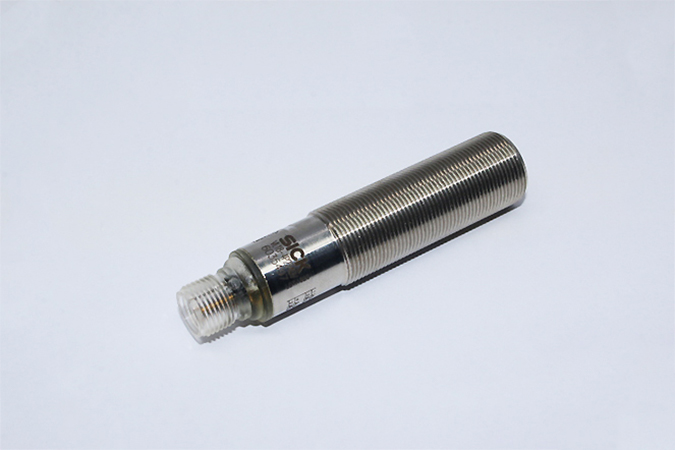

Sick Vl18-4P2240V Cylindrical Photoelectric Sensors 6035497
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK VL18-4P2240V CYLINDRICAL PHOTOELECTRIC SENSORS 6035497
- SKU050258
25 $
1 in stock
Description
Manufacturer: SICK
Type: Cylindrical photoelectric sensors
Model: VTE18-4P4240
Part No: 6013263
Functional principle Photoelectric retro-reflective sensor
Functional principle detail: Dual lens
Dimensions (W x H x D): 18 mm x 18 mm x 83 mm
Sensing range max.: 0.035 m … 4.5 m
Sensing range 0.035 m … 4 m
Type of light: Visible red light
Adjustment: Single teach-in button (Sensing range) Manual, via Touch-Teach-in
Supply voltage: 10 V DC … 30 V DC
Ripple: ± 10 %
Current consumption: 35 mA
Switching output: PNP
Output current Imax.: ≤ 100 mA
Response time: ≤ 1 ms
Switching frequency: 500 Hz

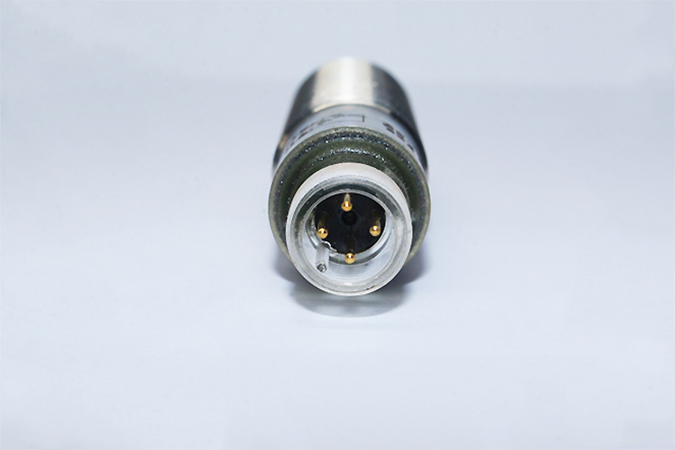

Connection type: Male connector M12, 4-pin
Protection class: III
Enclosure rating: IP67 IP68 IP69K
Ambient operating temperature: –25 °C … +80 °C
