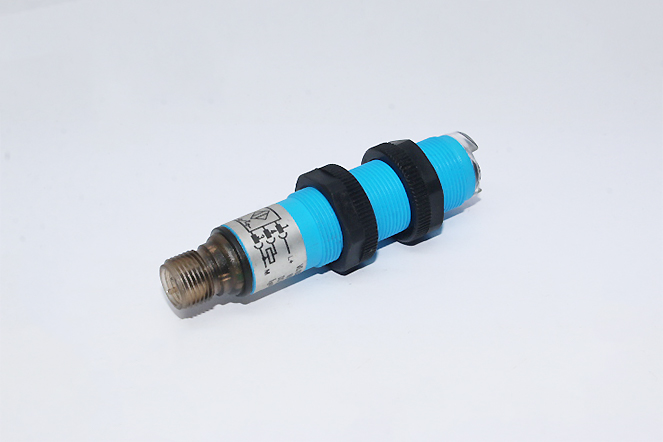

Sick Vl18-3F3640 Cylindrical Photoelectric Sensors 6013602
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK VL18-3F3640 CYLINDRICAL PHOTOELECTRIC SENSORS 6013602
- SKU050194
105 $
1 in stock
Description
Manufacturer: SICK
Type: CYLINDRICAL PHOTOELECTRIC SENSORS

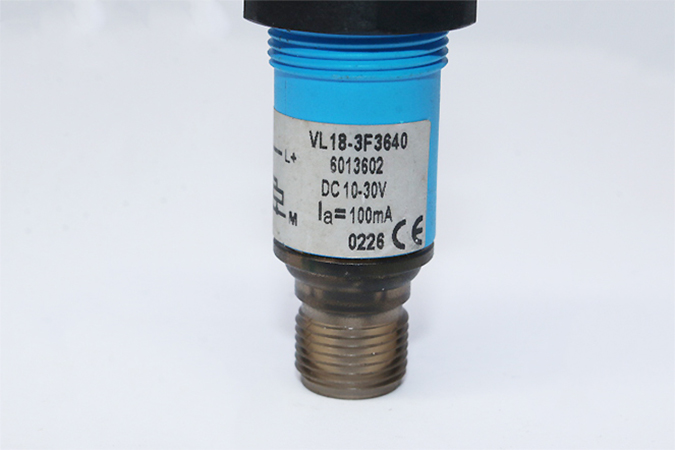

Model: VL18-3F3640
Art No: 6013602
Functional principle: Photoelectric retro-reflective sensor
Dimensions (W x H x D): 18 mm x 18 mm x 78 mm
Housing design (light emission): Cylindrical
Housing length: 78 mm
Thread diameter (housing): M18 x 1
Optical axis: Axial
Sensing range max.: 0.05 m … 3.7 m
Sensing range: 0.05 m … 3 m
Focus Approx.: 2.8°
Type of light: Visible red light
Light source: LED
Light spot size (distance): Ø 150 mm (3 m)
Angle of dispersion Approx.: 2.8°
Adjustment: None
Supply voltage UB: 10 V DC … 30 V DC
Ripple: ± 10 %
Current consumption: 30 mA
Switching output: PNP
Switching mode: Light switching
Output current Imax.: ≤ 100 mA
Response time: ≤ 2 ms
Switching frequency: 250 Hz

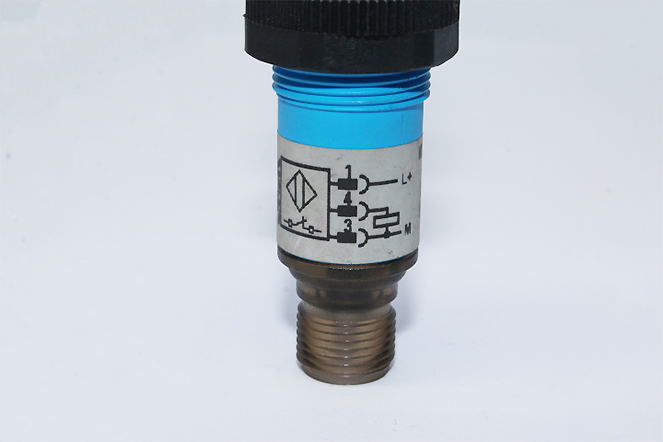

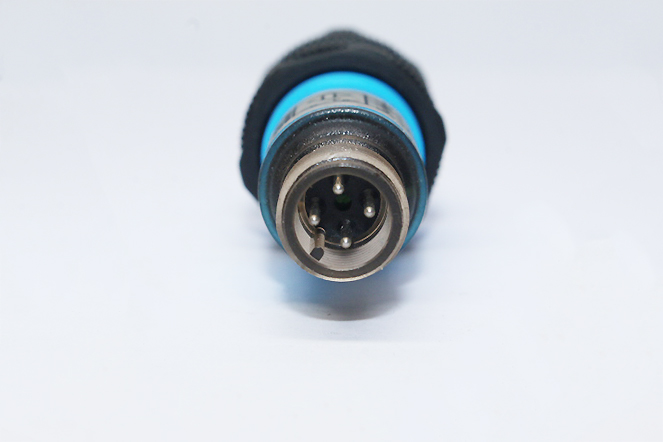

Connection type: Male connector M12, 4-pin
Protection class: III
Enclosure rating: IP67
Ambient operating temperature: –25 °C … +70 °C
