Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Part Number | 6013548 |
| Condition |

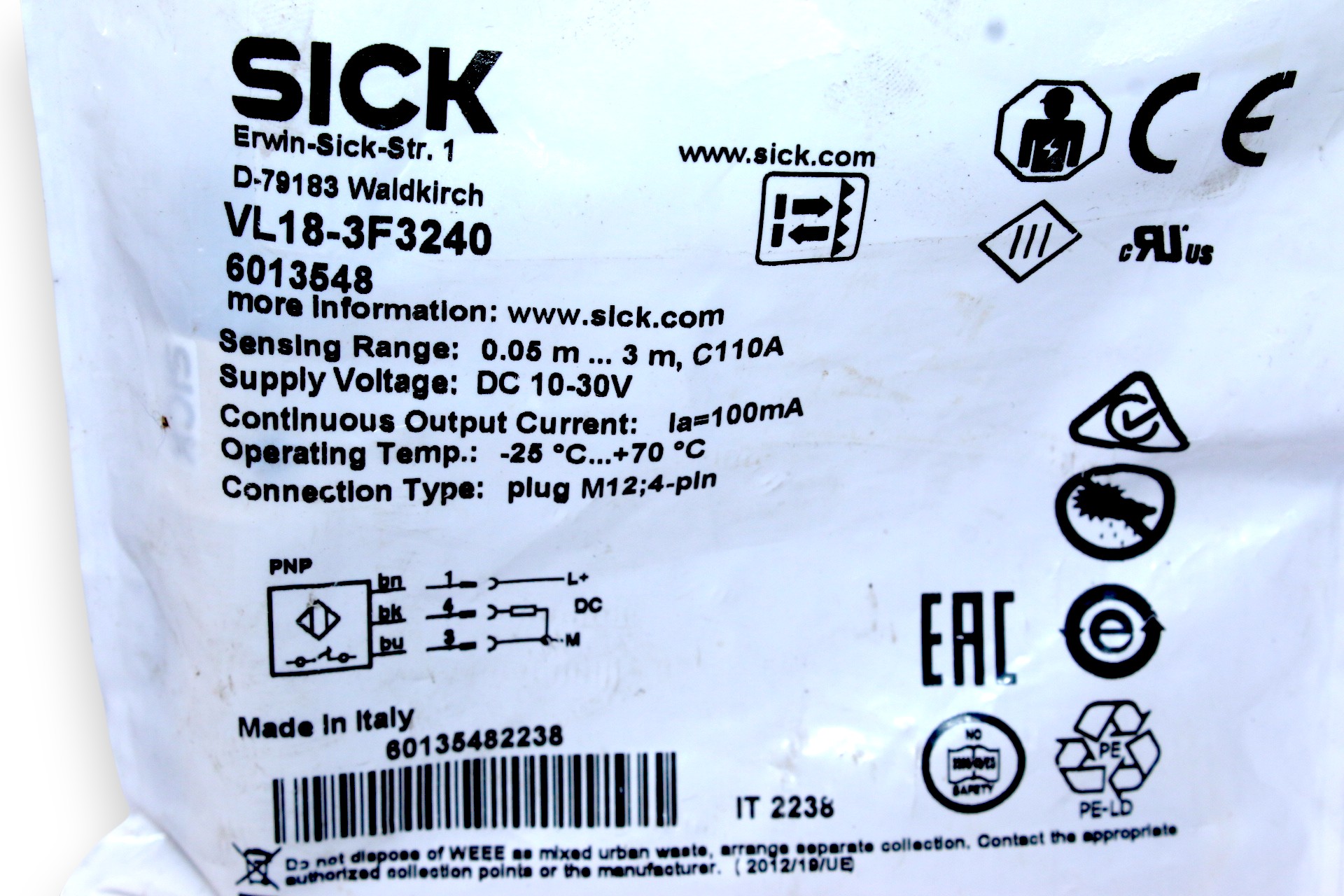

SICK VL18-3F3240 Cylindrical photoelectric sensors 6013548
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelVL18-3F3240
- SKU065409
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: SICK
Type: Cylindrical photoelectric sensors
Model: VL18-3F3240
Part No: 6013548
Functional Principle: Photoelectric retro-reflective sensor
Dimensions (W × H × D): 18 mm × 18 mm × 78 mm
Housing Design (Light Emission): Cylindrical
Housing Length: 78 mm
Thread Diameter (Housing): M18 × 1
Sensing Range Max.: 0.05 m … 3.7 m
Sensing Range: 0.05 m … 3 m
Type of Light: Visible red light
Light Source: LED
Light Spot Size (Distance): Ø 150 mm (3 m)
Adjustment: Potentiometer, 270° (Sensitivity)
Supply Voltage UB: 10 V DC … 30 V DC
Ripple: ± 10 %
Current Consumption: 30 mA
Switching Output: PNP
Switching Mode: Light switching
Output Current Imax.: ≤ 100 mA
Response Time: ≤ 2 ms
Switching Frequency: 250 Hz
Connection Type: Male connector M12, 4-pin
Protection Class: III
Enclosure Rating: IP67
Ambient Operating Temperature: –25 °C … +70 °C
