Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | SICK |
| Model | SICK GRL18S-P2431V Cylindrical photoelectric sensors 1085706 |
| Condition |

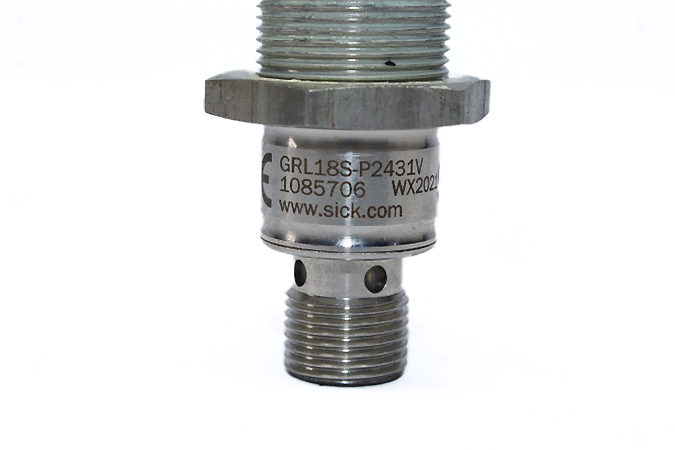

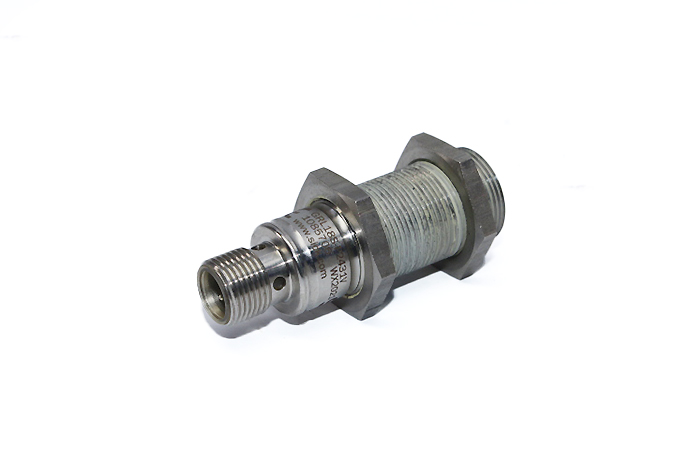

SICK GRL18S-P2431V Cylindrical photoelectric sensors 1085706
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK GRL18S-P2431V Cylindrical photoelectric sensors 1085706
- SKU050241
75 $
2 in stock
Description
Manufacturer: SICK
Type: Cylindrical photoelectric sensors
Model: GRL18S-P2431V
Part No: 1085706
Functional principle: Photoelectric retro-reflective sensor
Functional principle detail: Dual lens
Dimensions (W x H x D): 18 mm x 18 mm x 55.9 mm
Thread diameter (housing): M18 x 1
Sensing range max.: 0.03 m … 7.2 m
Sensing range: 0.06 m … 6 m
Type of light: Visible red light
Light source: PinPoint LED
Adjustment: None
Supply voltage UB: 10 V DC … 30 V DC
Ripple: < 5 Vpp
Current consumption: 30 mA
Switching output: PNP
Output function: Complementary
Switching mode: Light/dark switching
Output current Imax.: ≤ 100 mA
Response time: < 500 µs
Switching frequency: 1,000 Hz

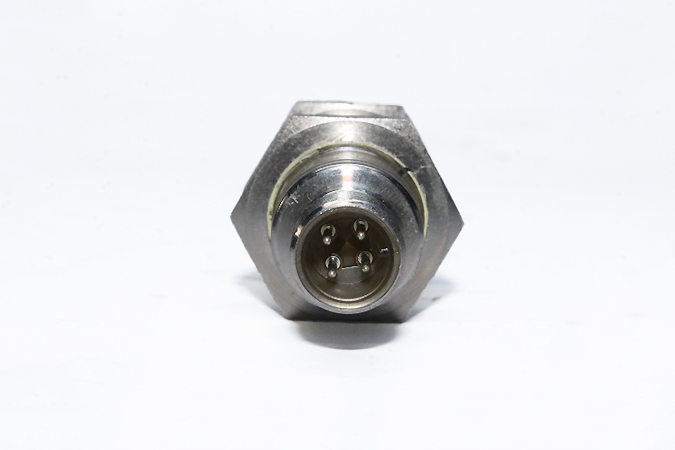

Connection type: Male connector M12, 4-pin
Protection class: III
Enclosure rating: IP67, IP68, IP69K
Ambient operating temperature: –25 °C … +55 °C
