Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Condition |

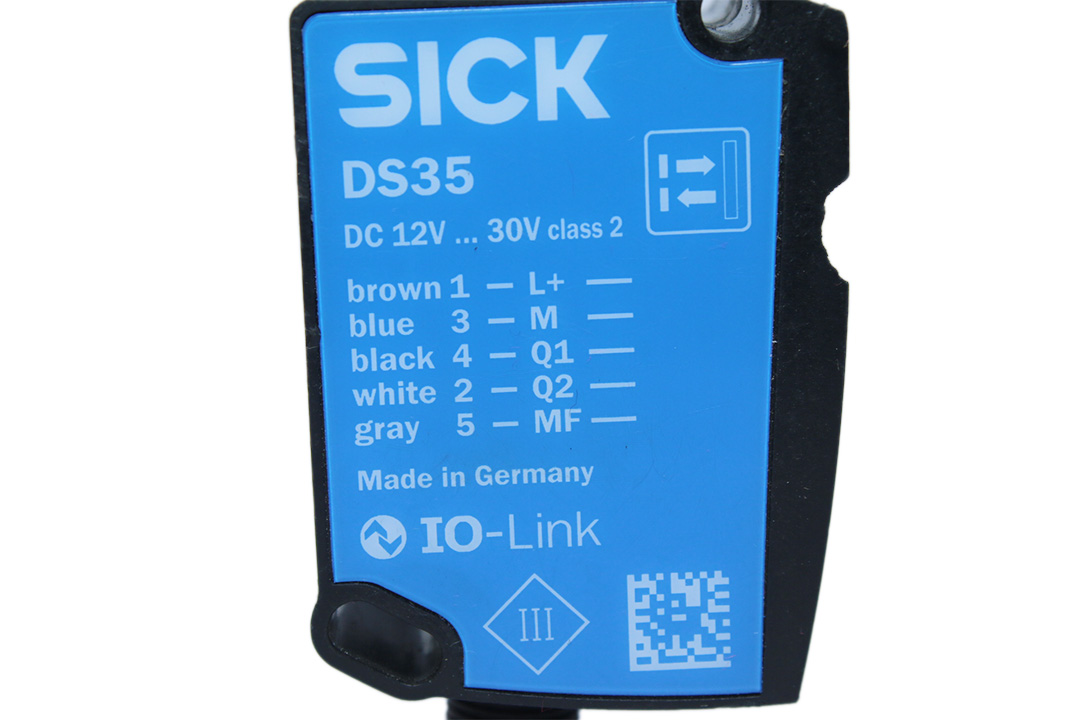

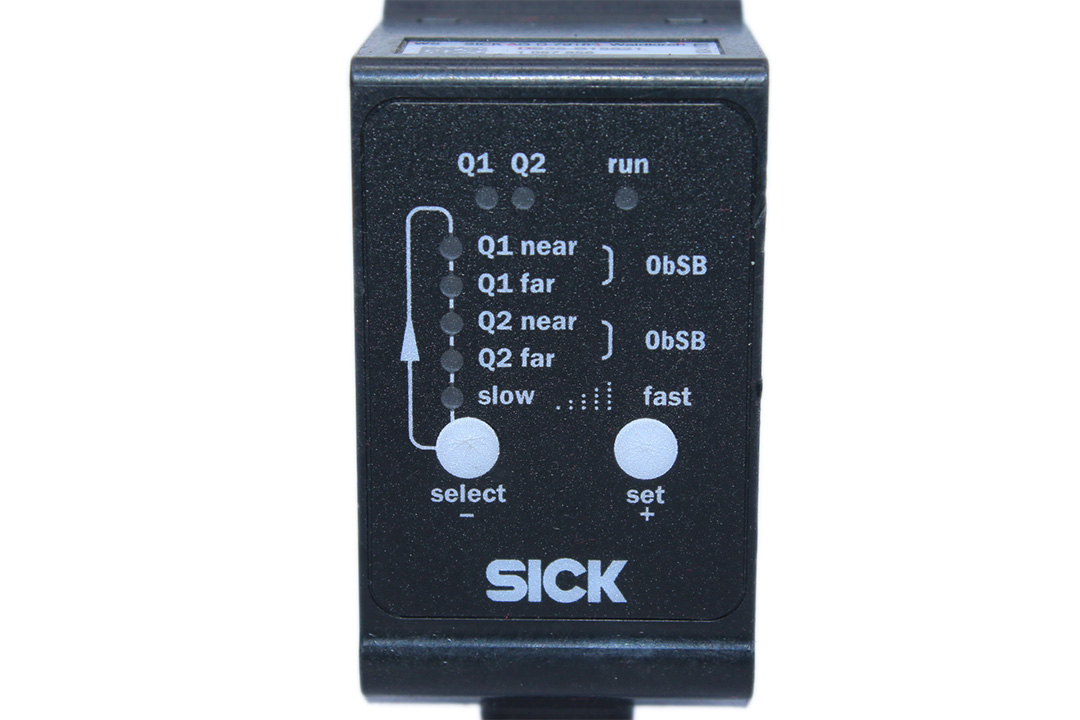

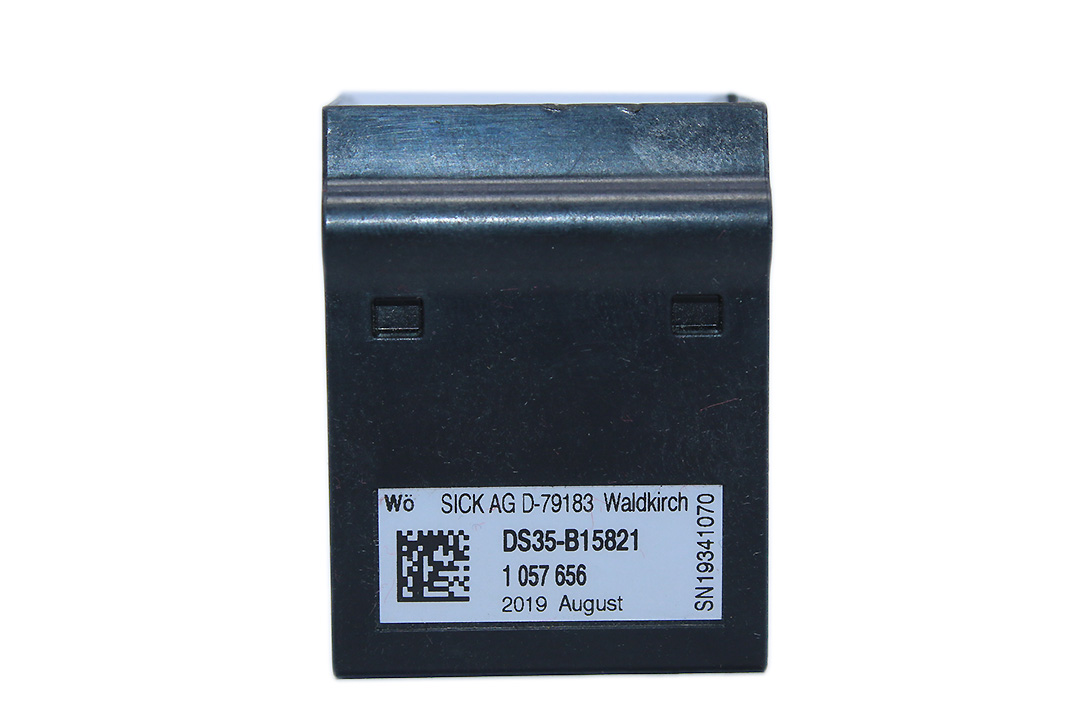

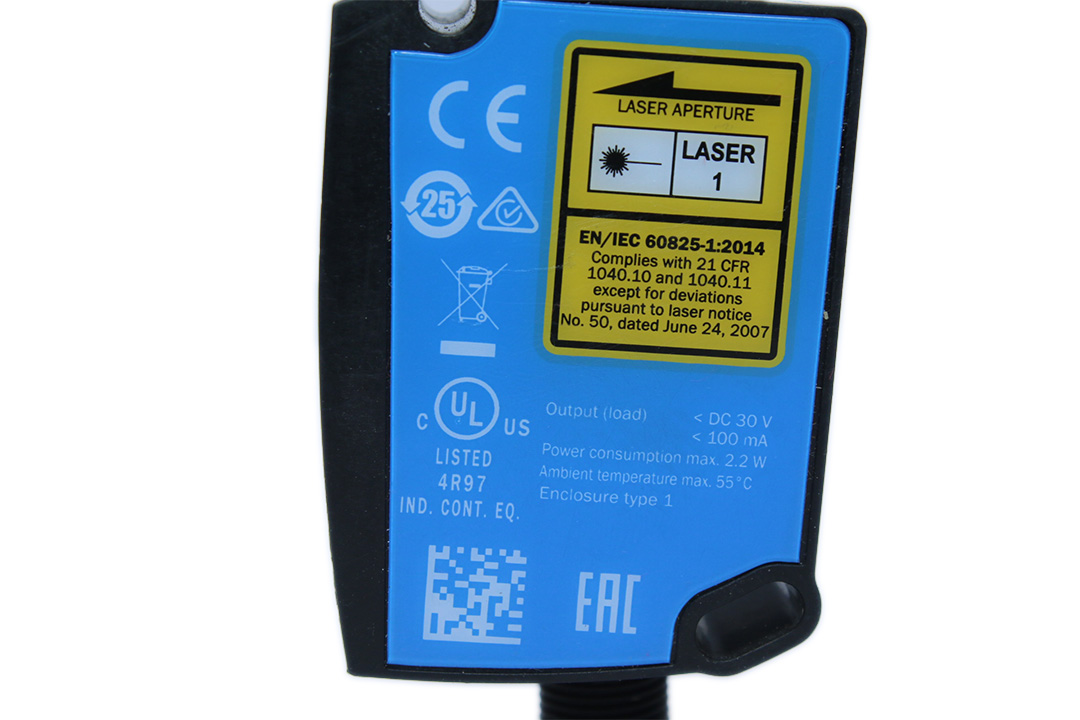

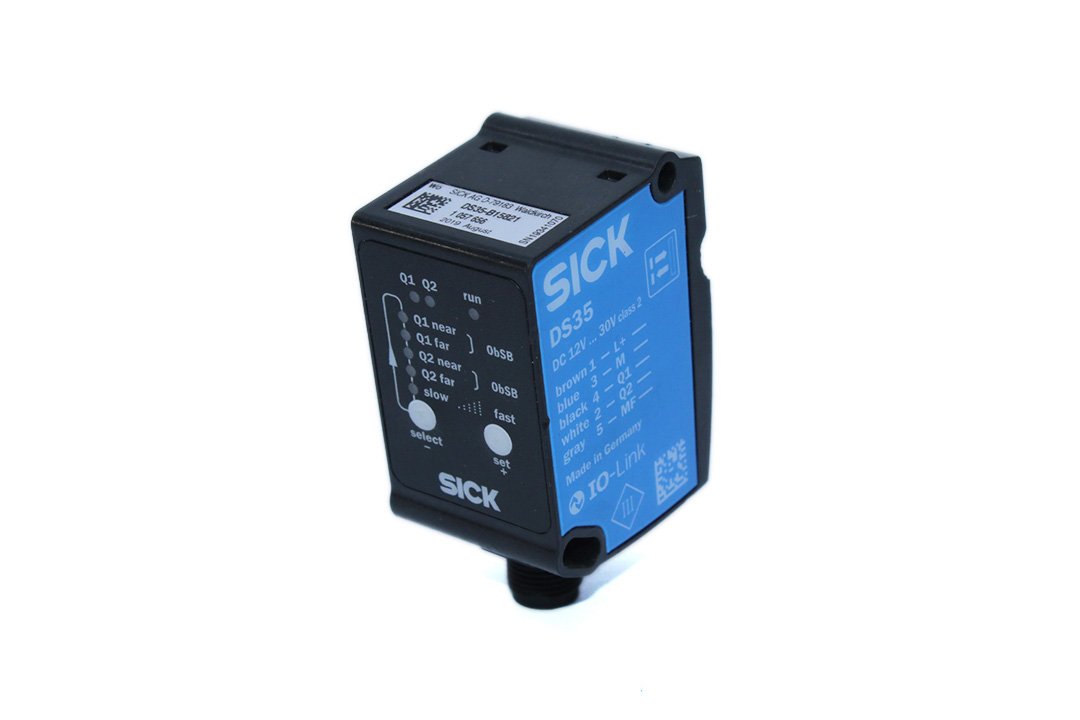

Sick Ds35-B15821 Laser Distance Sensor 1057656
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK DS35-B15821 LASER DISTANCE SENSOR 1057656
- SKU059528
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: SICK
Type: LASER DISTANCE SENSOR
Model: DS35-B15821
Part No: 1057656
Measuring range:
-50 mm … 12,000 mm, 90% remission factor
-50 mm … 5,300 mm, 18 % remission
-50 mm … 3,100 mm, 6% remission factor
Supply voltage: DC 12 V … 30 V
Type: Push-pull: PNP/NPN
Power consumption: ≤ 1.7 W
Light source:
-Laser, infrared
-Infrared light
Resolution: 0.1 mm
Target: Natural objects
Connection type: Male connector, M12, 5-pin
Typ. light spot size (distance): 15 mm x 15 mm (at 2 m)
Dimensions (W x H x D): 32 mm x 58.67 mm x 42.7 mm
