Specifications
| Manufacturer | SICK |
|---|---|
| Model | |
| Condition |
SICK DME4000-212 Long range distance sensors 1029791
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK DME4000-212 Long range distance sensors 1029791
- SKU050008
1.575 $
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: SICK
Model: DME4000-212
Type: Long range distance sensors
Part No: 1029791
Supply voltage Vs: DC 18 V … 30 V, limit values
Ripple: < 5 Vpp
Initialization time: 1.5 s
Housing material: Metal (zinc diecast)
Window material: Glass

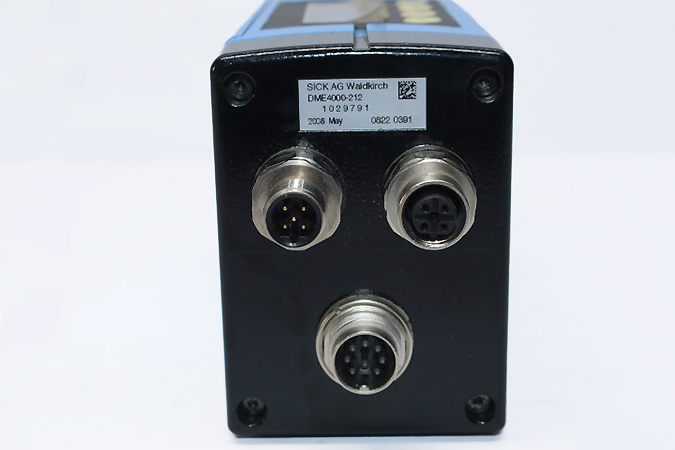

Connection type: Male connector, 2 x M12, 5-pin, B-coded, 1 x M16, 8-pin, B-coded

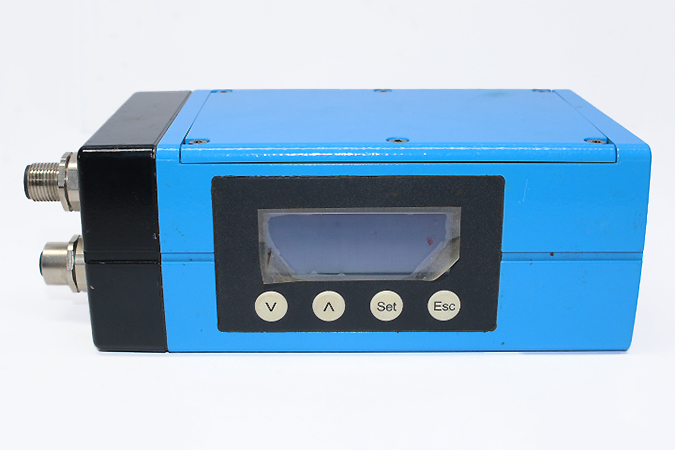

Indication: Display
Weight Approx.: 1,650 g
Current consumption At 24 V DC: < 250 mA
Dimensions (W x H x D): 61 mm x 85 mm x 166 mm
Measuring range: 0.15 m … 130 m, on “diamond grade” reflective tape
Target: Reflector
Resolution: 0.05 mm … 5 mm
Repeatability: 2 mm 1) 2)
Accuracy: ± 5 mm
Response time: 6 ms
Output time: 2 ms
