Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | SENSOPART |
| Model | SENSOPART UT 20-240-AIM4 Ultrasonic sensor with analogue output |
| Condition |

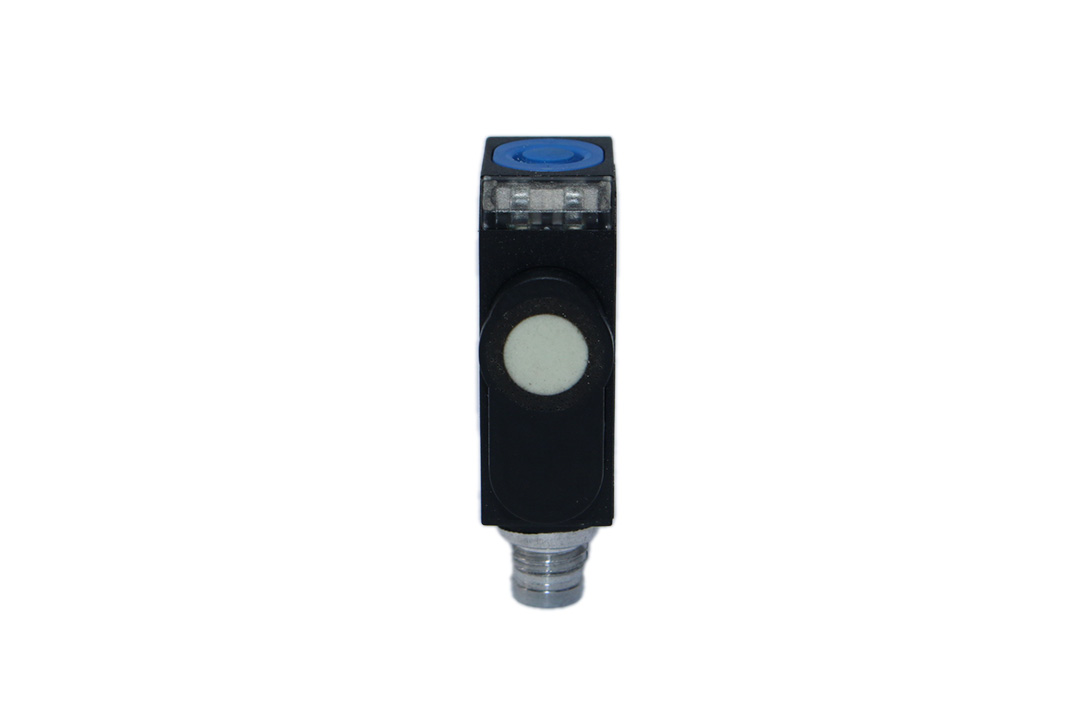

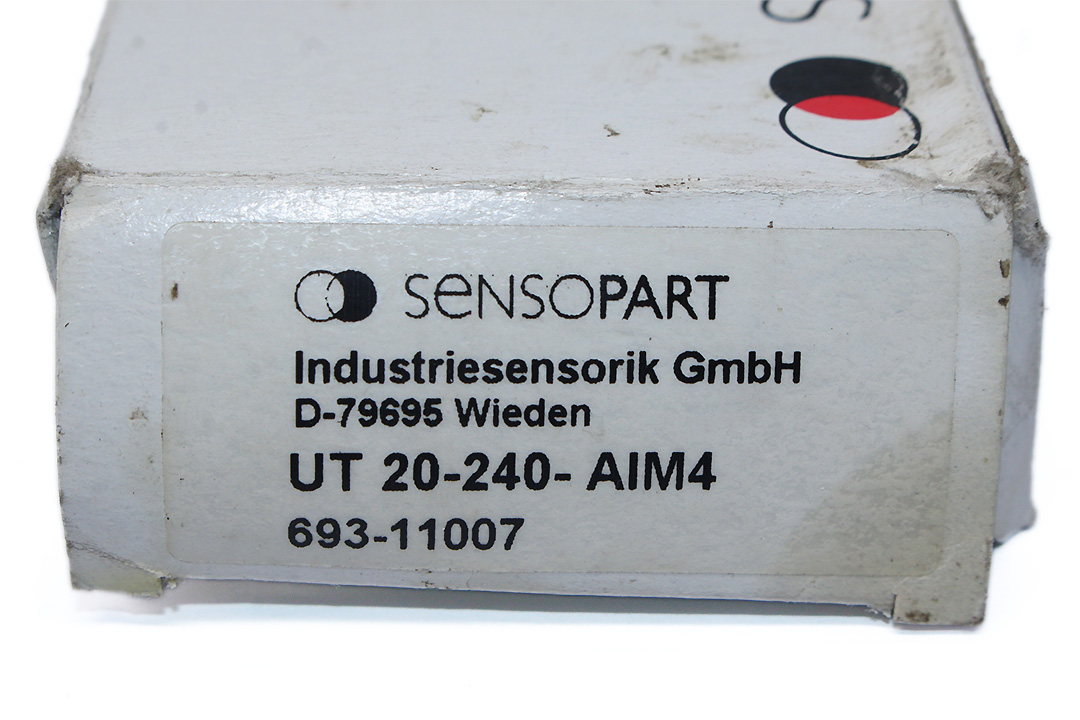

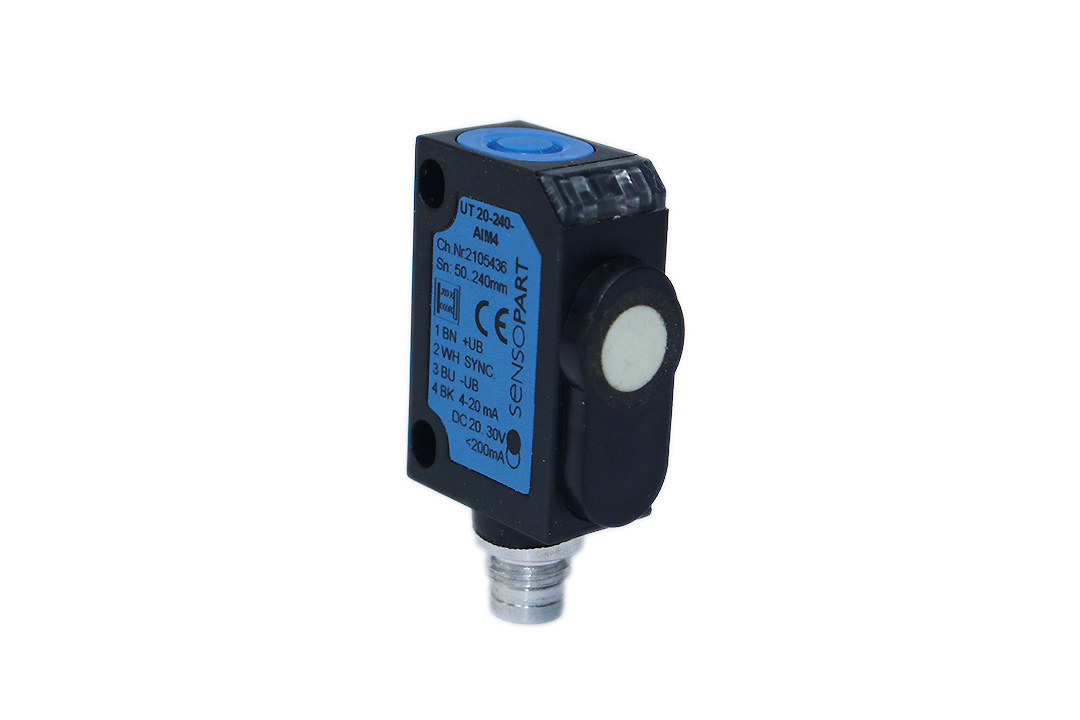

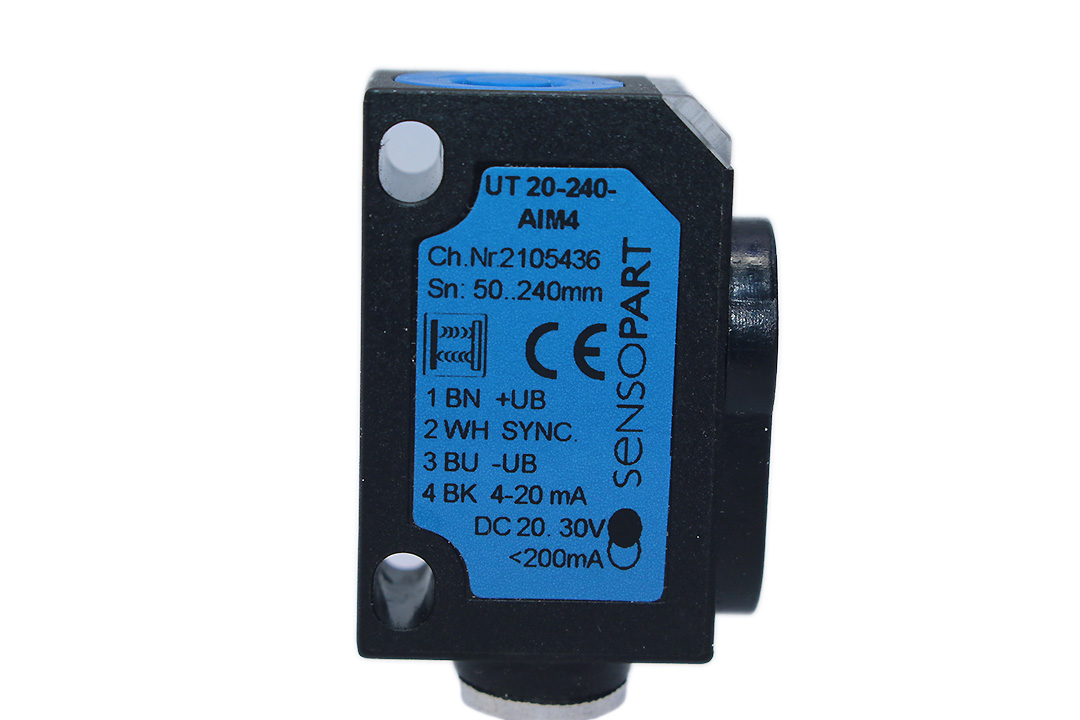

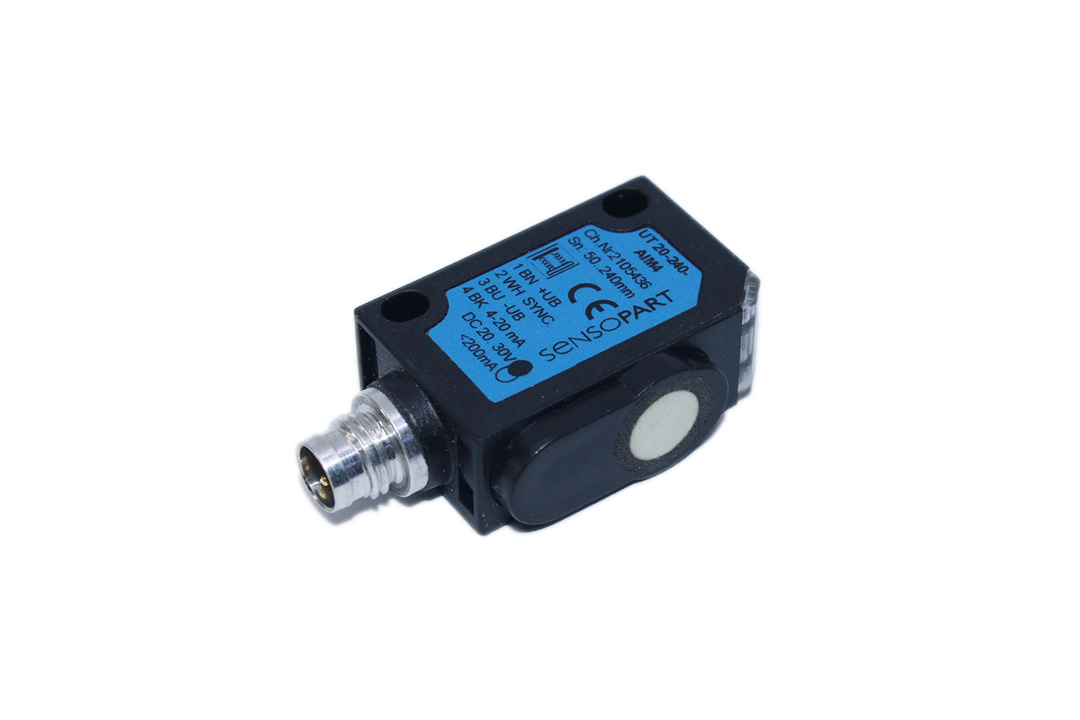

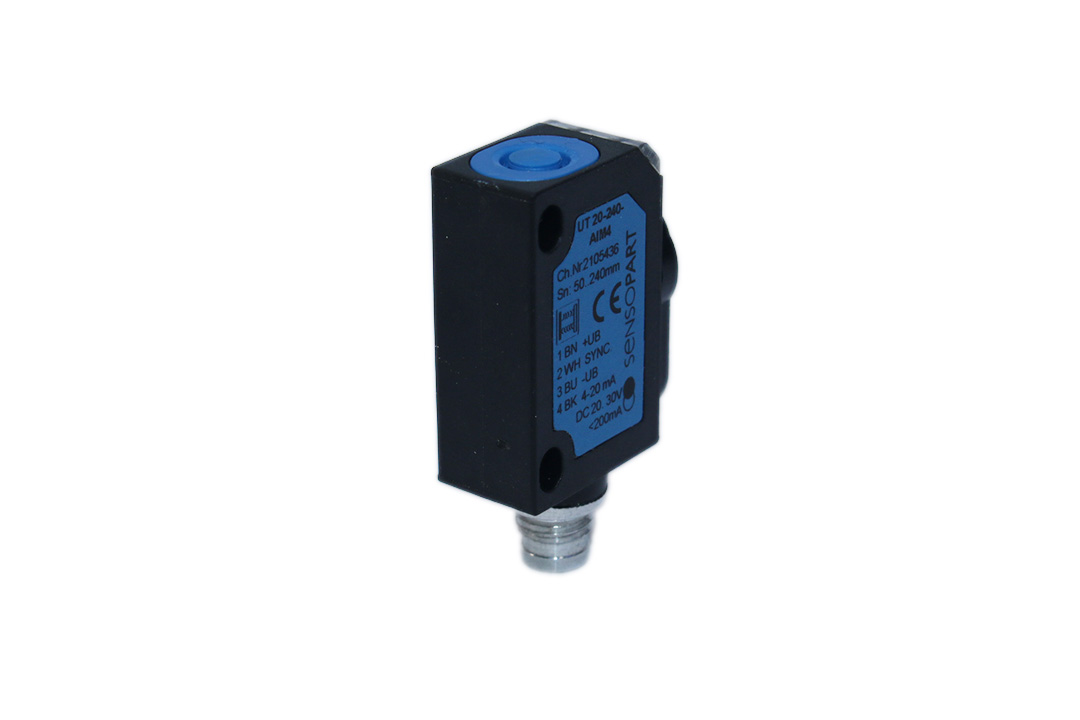

SENSOPART UT 20-240-AIM4 Ultrasonic sensor with analogue output
We are NOT an authorized distributor for SENSOPART
- ManufacturerSENSOPART
- ModelSENSOPART UT 20-240-AIM4 Ultrasonic sensor with analogue output
- SKU056707
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: SENSOPART
Type: Ultrasonic sensor with analogue output
Model: UT 20-240-AIM4
Response time [ms]: 30
Output: Analog (current)
Ultrasonic frequency [kHz]: 500
Series: UT20 (32 x 21,6 x 12 mm)
Working distance min. [mm]: 50
Working distance max. [mm]: 240
Amount of swithing outputs: 1
Resolution [mm]: 0.2
Repeatability [mm]: ± 0.15%
Temperature range [°C]: -25 … +70
Temperature drift [%]: ≤ 2 %

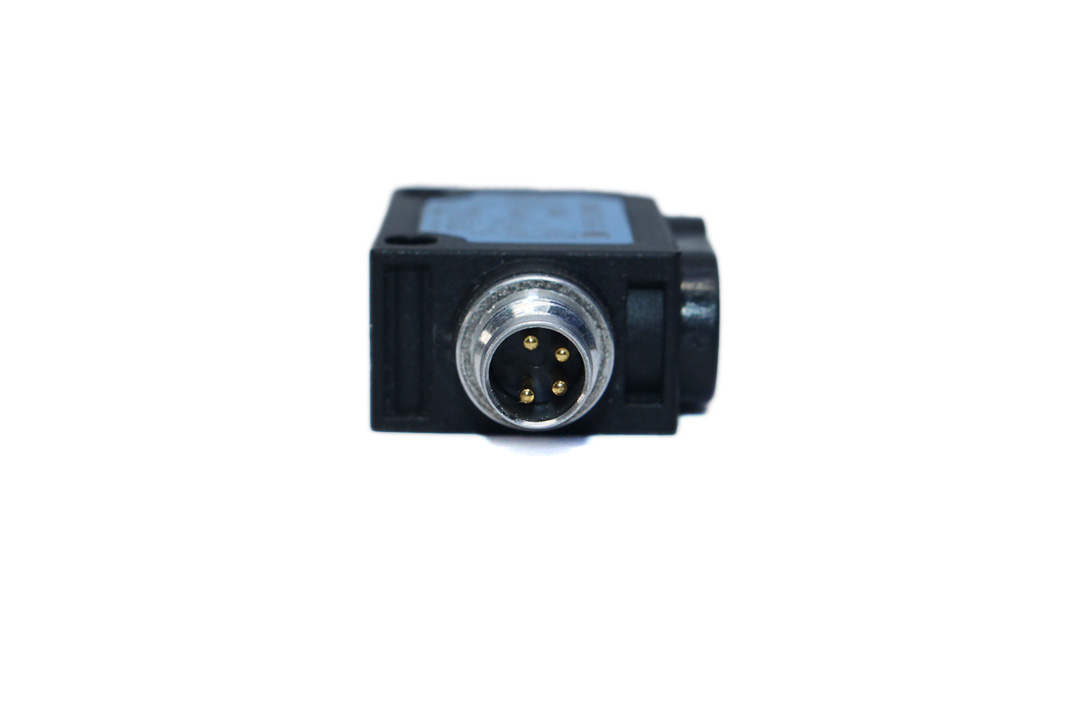

Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67
