Specifications
| Weight | 0.400 kg |
|---|---|
| Manufacturer | PILZ |
| Model | |
| Part Number | 774318 |
| Condition |

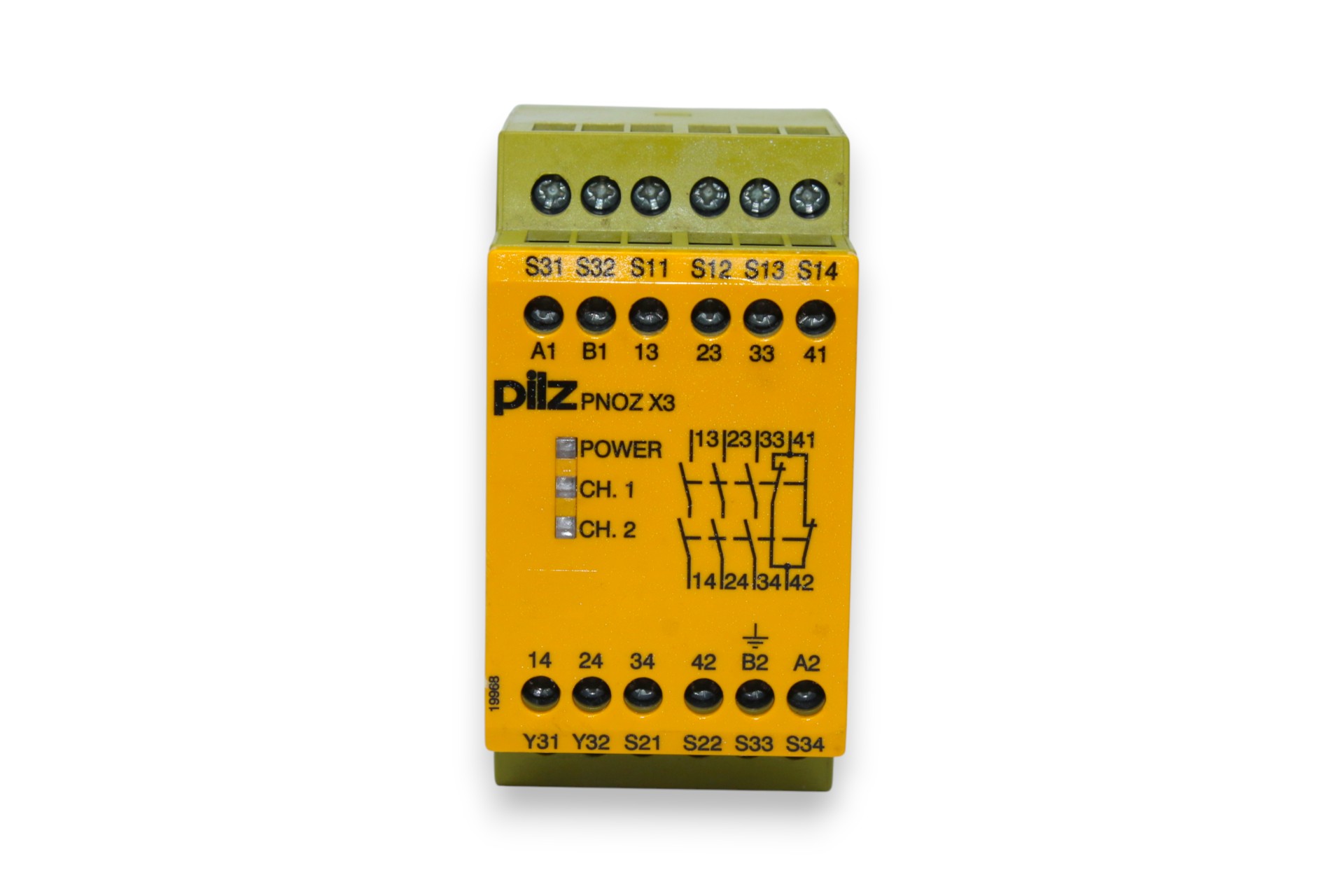

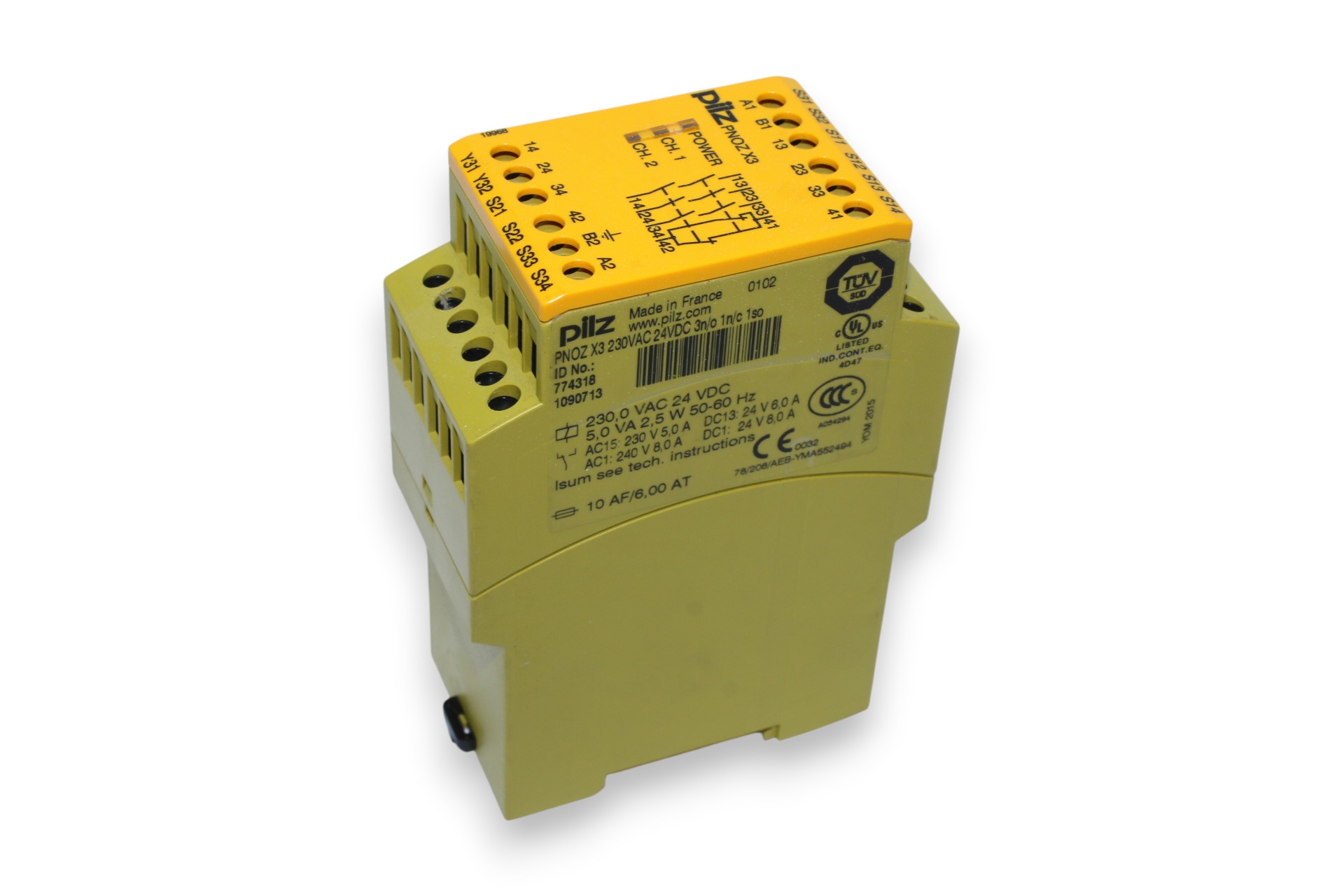

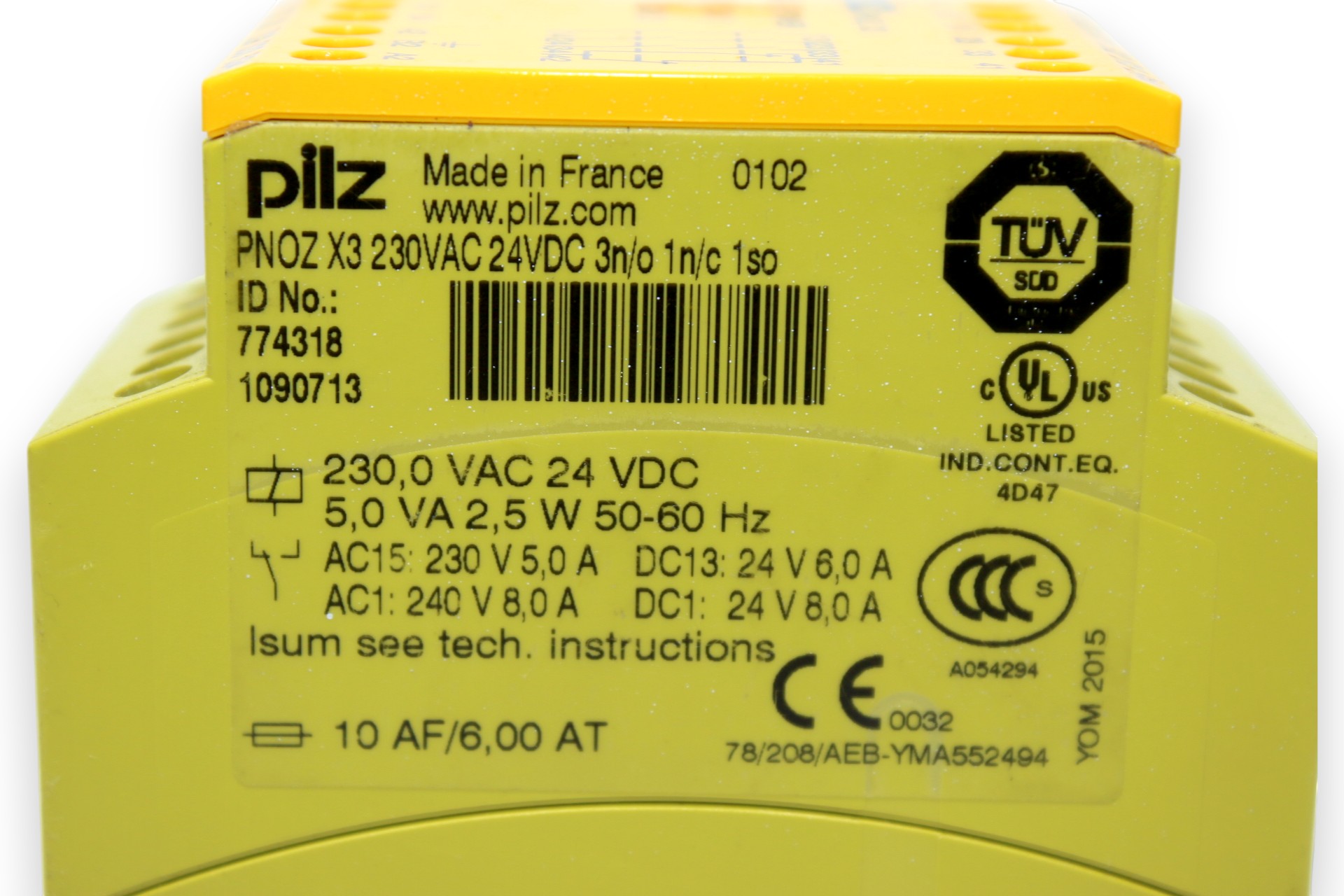

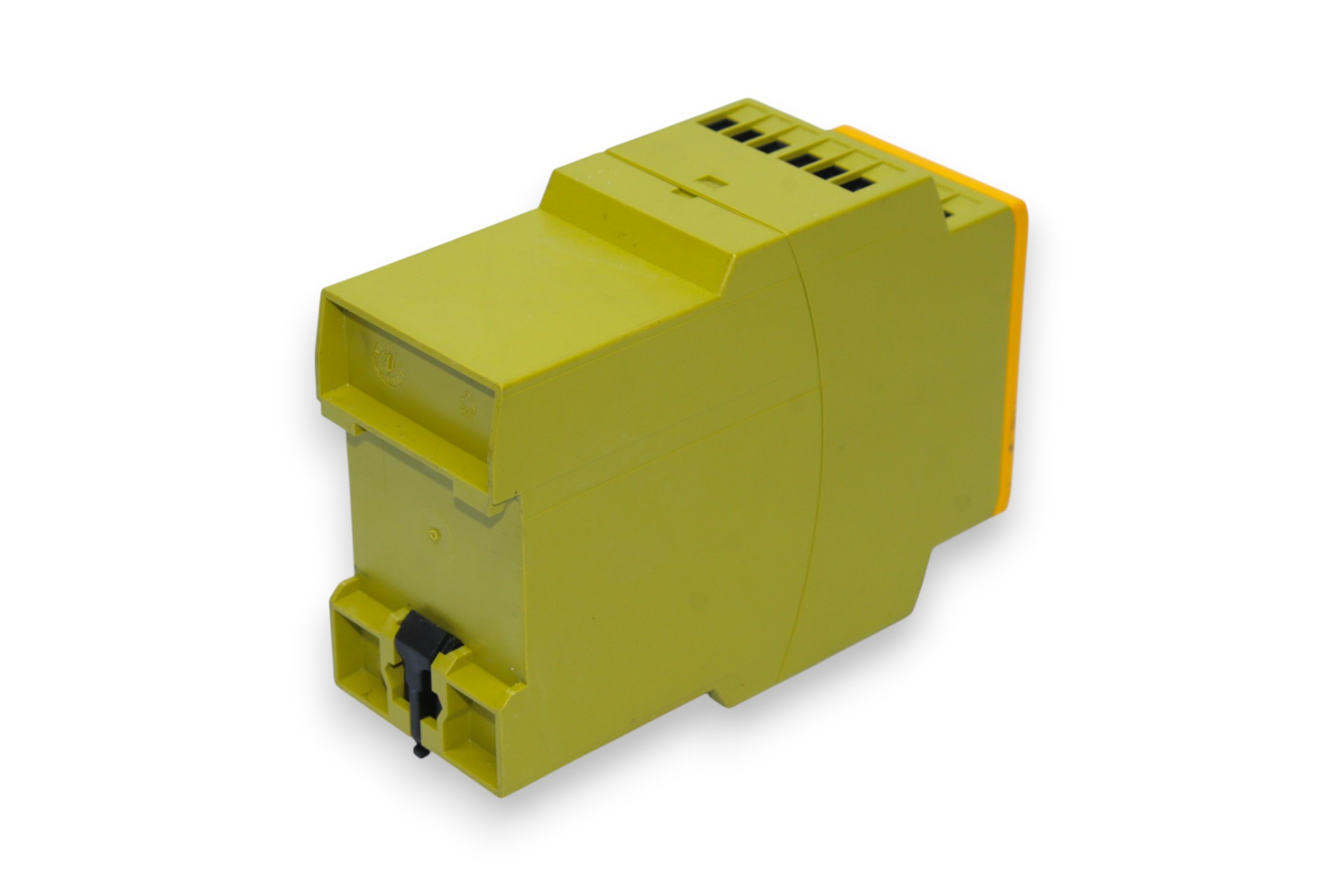

PILZ PNOZ X3 230VAC 24VDC 3n/o 1n/c 1so SAFETY RELAY 774318
We are NOT an authorized distributor for PILZ
- ManufacturerPILZ
- ModelPNOZ X3 230VAC 24VDC 3n/o 1n/c 1so
- SKU065425
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: Pilz
Model: PNOZ X3 230VAC/24VDC 3S 1O
Type: Safety Relay
Part No.: 774318
Supply voltage (V): 230 V Type of supply voltage U1: AC Power consumption AC: 5 VA Supply voltage 2: 24 V Type of supply voltage U2: DC Number of inputs: 2 Number of semicond. outputs: 1 Tolerance ext. volt. DC S/C: -20 %/+20 % Voltage AC1 safety cont.: 240 V Max. current AC1 safety cont.: 8 A Voltage DC1 safety cont.: 24 V Max. current DC1 safety cont.: 8 A Voltage AC15 safety cont.: 230 V Max. current AC15 safety cont.: 5 A Voltage DC13 safety cont.: 24 V Connection terminal: Screw terminal Terminal style: fixed Ambient temperature: -20 - 55 °C
