Specifications
| Weight | 0.300 kg |
|---|---|
| Manufacturer | PEPPERL+FUCHS |
| Model | |
| Condition |

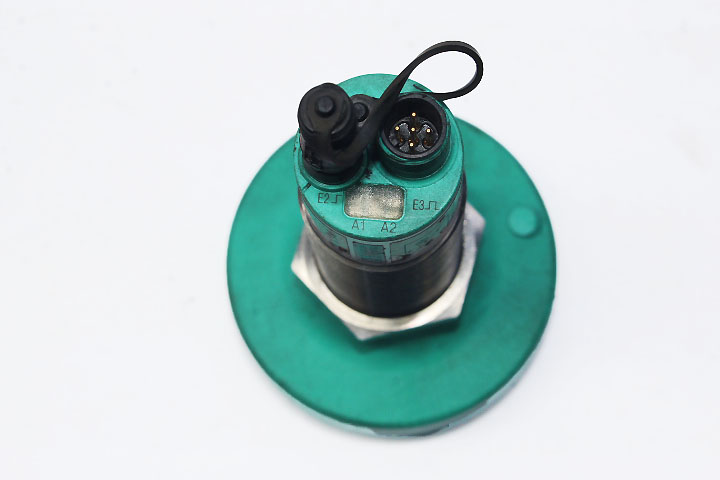

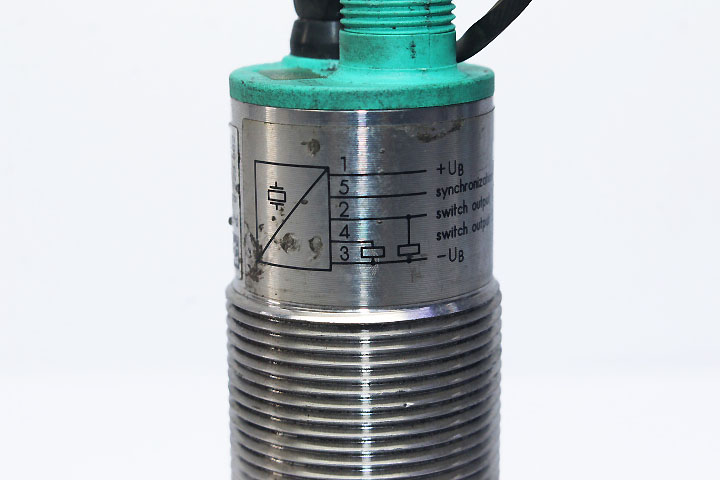

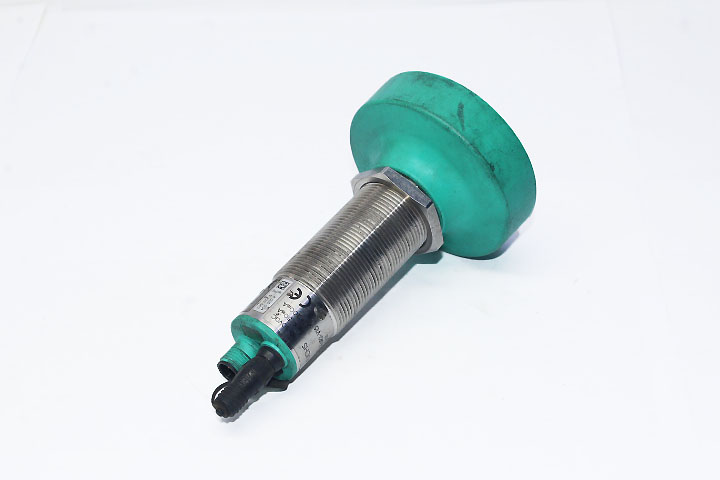

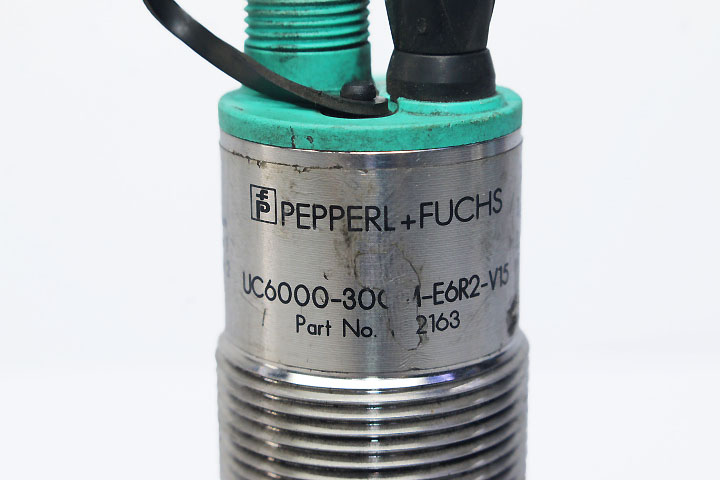

PEPPERL+FUCHS UC6000-30GM-E6R2-V15 Ultrasonic sensor
We are NOT an authorized distributor for PEPPERL+FUCHS
- ManufacturerPEPPERL+FUCHS
- ModelUC6000-30GM-E6R2-V15
- SKU051095
126 $
1 in stock
Description
Manufacturer: PEPPERL+FUCHS
Model: UC6000-30GM-E6R2-V15
Type: Ultrasonic sensor
Sensing range: 350 … 6000 mm
Adjustment range: 400 … 6000 mm
Dead band: 0 … 350 mm
Standard target plate: 100 mm x 100 mm
Transducer frequency: approx. 65 kHz
Response delay:
285 ms minimum
850 ms factory setting
Operating voltage: 10 … 30 V DC , ripple 10 %SS
Output type: 2 switch outputs PNP, NO/NC, programmable
Switching frequency: ≤ 0.5 Hz
Ambient temperature: -25 … 70 °C (-13 … 158 °F)
Degree of protection: IP65
