Specifications
| Weight | 0.150 kg |
|---|---|
| Manufacturer | PEPPERL+FUCHS |
| Model | |
| Condition |

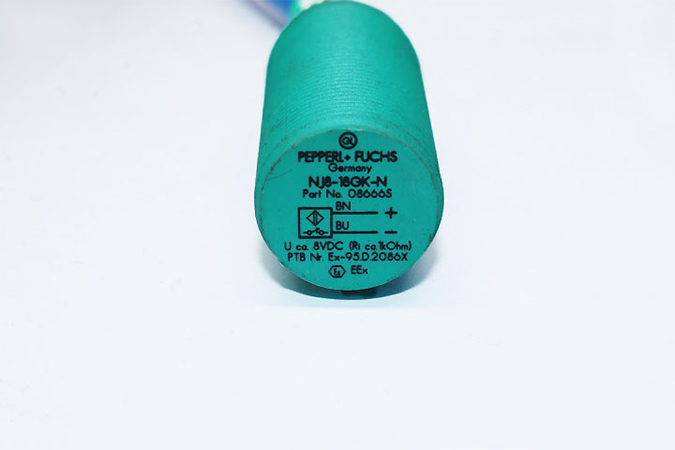

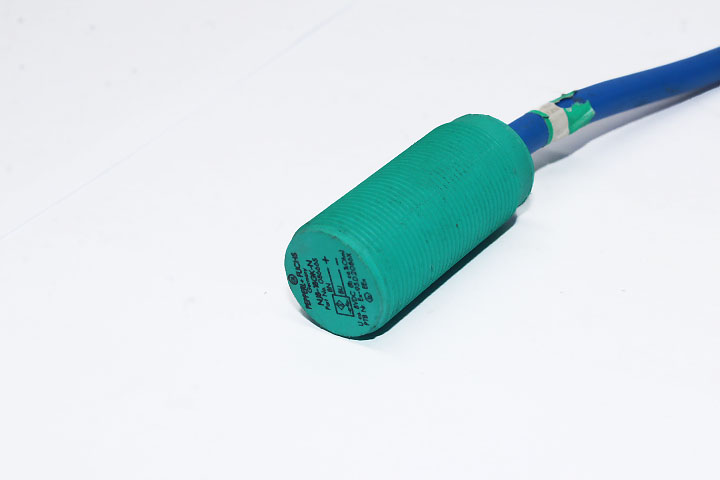

PEPPERL+FUCHS NJ8-18GK-N Inductive sensor
We are NOT an authorized distributor for PEPPERL+FUCHS
- ManufacturerPEPPERL+FUCHS
- ModelNJ8-18GK-N
- SKU051092
27 $
2 in stock
Description
Manufacturer: PEPPERL+FUCHS
Model: NJ8-18GK-N
Type: Inductive sensor
Switching function: Normally closed (NC)
Output type: NAMUR
Rated operating distance: 8 mm
Installation: non-flush
Assured operating distance: 0 … 6.48 mm
Nominal voltage: 8.2 V (Ri approx. 1 kΩ)
Switching frequency: 0 … 200 Hz
Measuring plate not detected: min. 3 mA
Measuring plate detected: ≤ 1 mA
Ambient temperature: -25 … 100 °C (-13 … 212 °F)
Degree of protection: IP66 / IP68
