Specifications
| Weight | 0.250 kg |
|---|---|
| Manufacturer | PEPPERL+FUCHS |
| Model | |
| Condition |

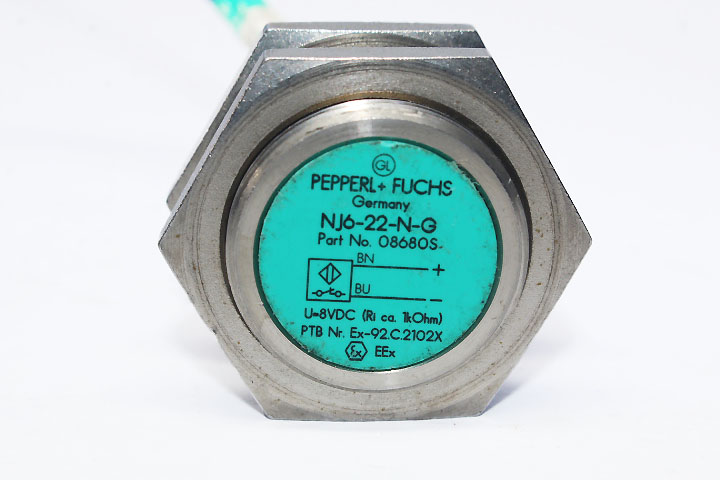

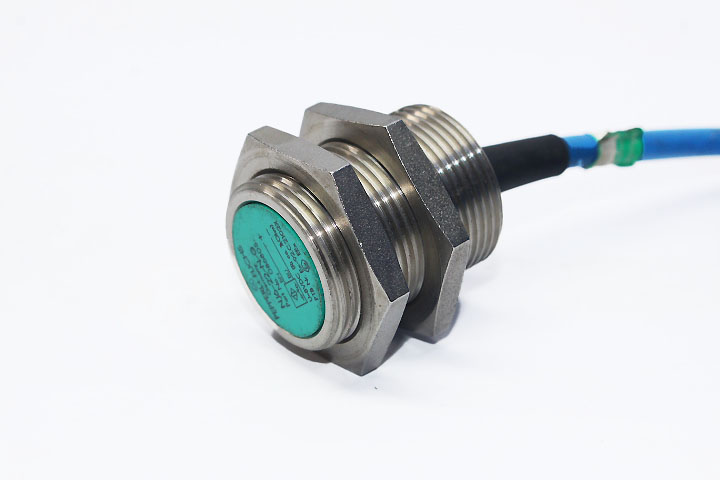

PEPPERL+FUCHS NJ6-22-N-G Inductive sensor
We are NOT an authorized distributor for PEPPERL+FUCHS
- ManufacturerPEPPERL+FUCHS
- ModelNJ6-22-N-G
- SKU051091
53 $
3 in stock
Description
Manufacturer: PEPPERL+FUCHS
Model: NJ6-22-N-G
Type: Inductive sensor
Switching function: Normally closed (NC)
Output type: NAMUR
Rated operating distance: 6 mm
Installation: flush
Assured operating distance: 0 … 4.86 mm
Nominal voltage: 8.2 V (Ri approx. 1 kΩ)
Switching frequency: 0 … 2000 Hz
Measuring plate not detected: min. 3 mA
Measuring plate detected: ≤ 1 mA
Ambient temperature: -25 … 100 °C (-13 … 212 °F)
Degree of protection: IP68
