Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | PEPPERL+FUCHS |
| Model | |
| Part Number | 102690 |
| Condition |

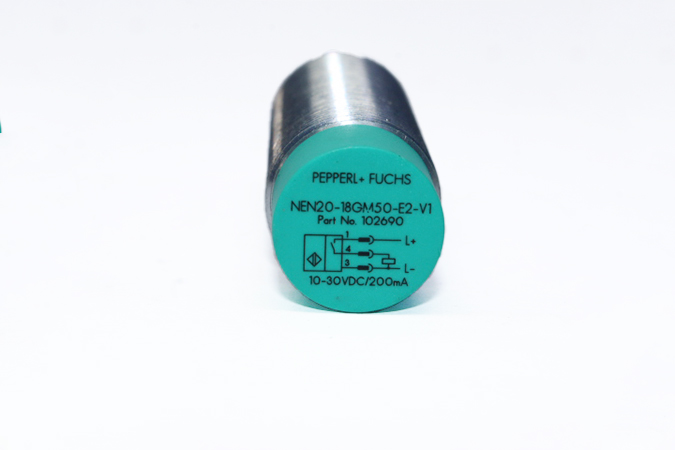

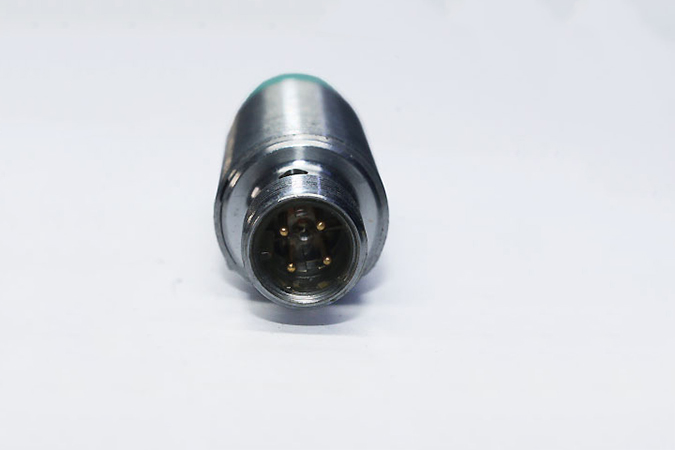

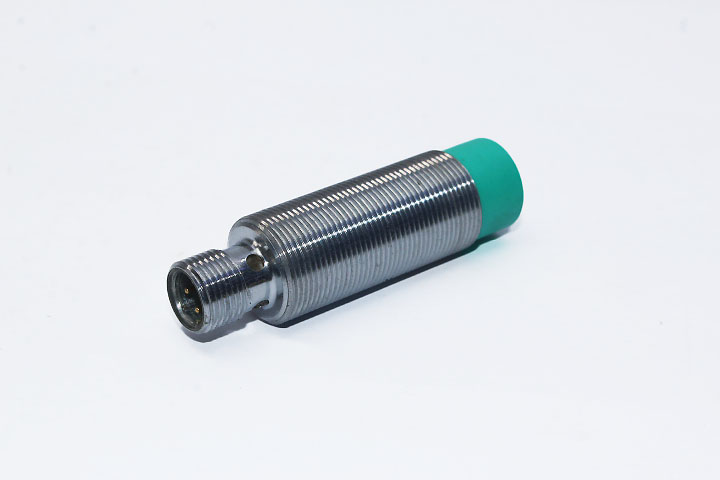

PEPPERL+FUCHS NEN20-18GM50-E2-V1 Inductive sensor 102690
We are NOT an authorized distributor for PEPPERL+FUCHS
- ManufacturerPEPPERL+FUCHS
- ModelNEN20-18GM50-E2-V1
- SKU051134
16 $
8 in stock
Description
Manufacturer: PEPPERL+FUCHS
Model: NEN20-18GM50-E2-V1
Type: Inductive sensor
Part No: 102690
Output type: PNP
Rated operating distance: 20 mm
Installation: non-flush
Output polarity: DC
Assured operating distance: 0 … 16.2 mm
Operating voltage: 10 … 30 V
Switching frequency: 0 … 200 Hz
Operating current: 0 … 200 mA
Ambient temperature: -25 … 85 °C (-13 … 185 °F)
Degree of protection: IP67
