Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | PEPPERL+FUCHS |
| Model | |
| Part Number | 128870 |
| Condition |

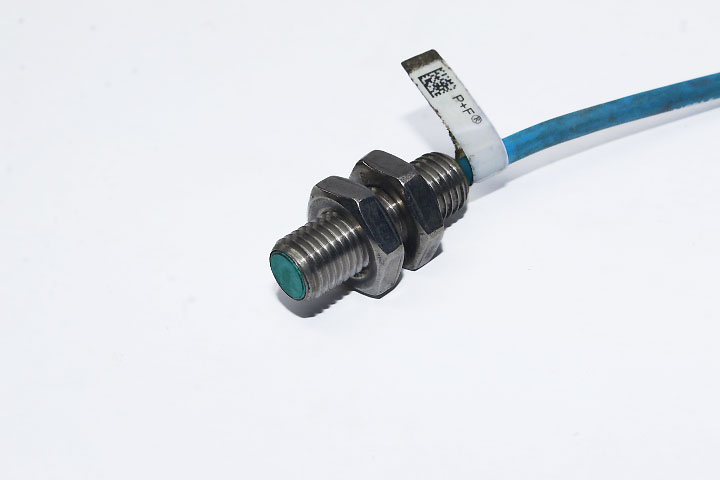

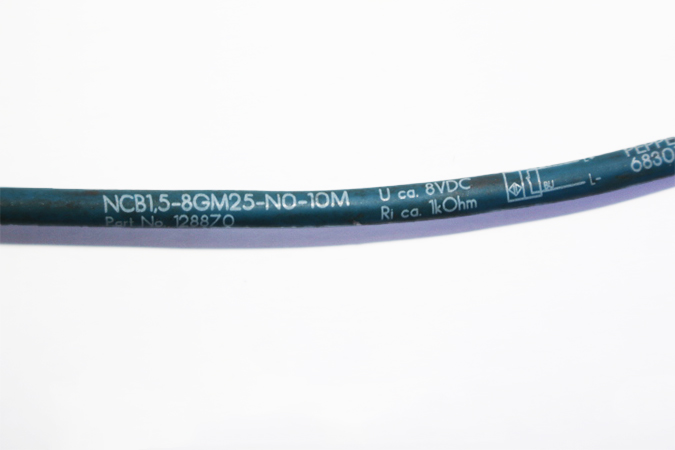

PEPPERL+FUCHS NCB1,5-8GM25-N0-10M Inductive sensor 128870
We are NOT an authorized distributor for PEPPERL+FUCHS
- ManufacturerPEPPERL+FUCHS
- ModelNCB1.5-8GM25-N0-10M
- SKU051135
53 $
1 in stock
Description
Manufacturer: PEPPERL+FUCHS
Model: NCB1,5-8GM25-N0-10M
Type: Inductive sensor
Part No: 128870
Output type: NAMUR
Rated operating distance: 1.5 mm
Installation: flush
Assured operating distance: 0 … 1.215 mm
Nominal voltage: 8.2 V (Ri approx. 1 kΩ)
Switching frequency: 0 … 2000 Hz
Current consumption:
Measuring plate not detected: min. 3 mA
Measuring plate detected: ≤ 1 mA
Ambient temperature: -25 … 100 °C (-13 … 212 °F)
Degree of protection: IP67
