Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | PEPPERL+FUCHS |
| Model | |
| Part Number | 084197 |
| Condition |

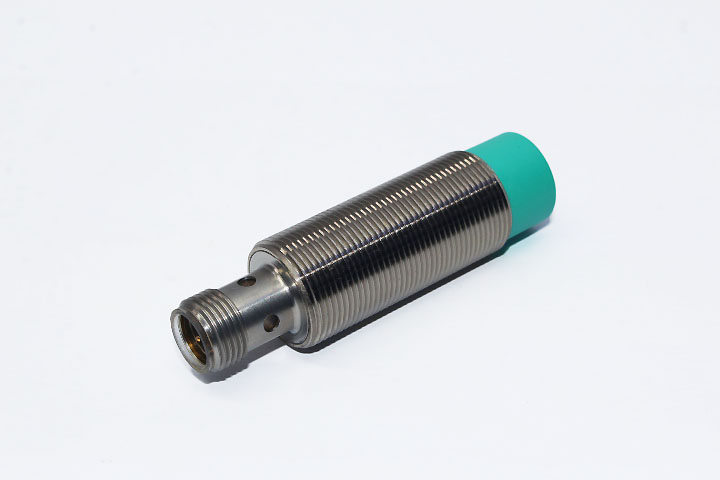

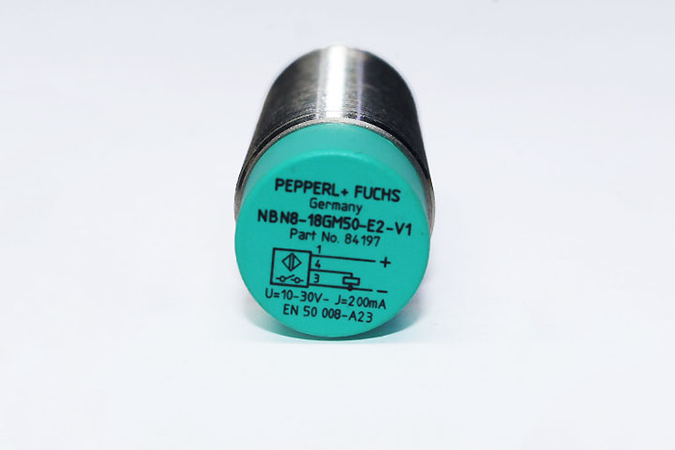

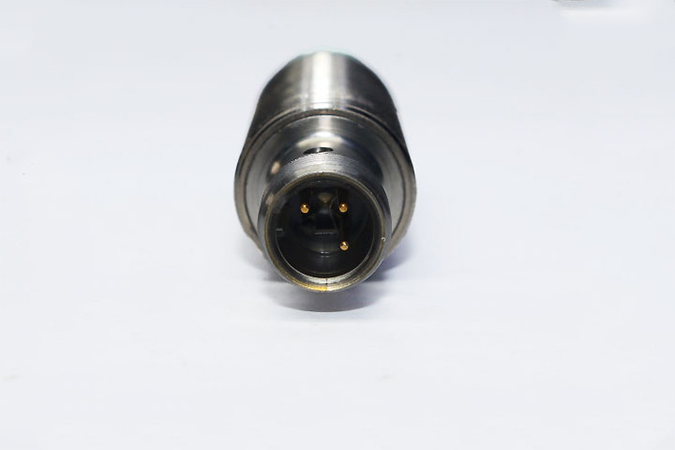

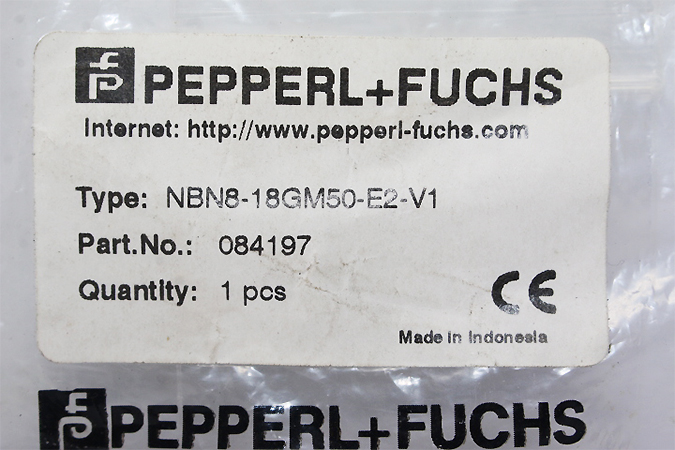

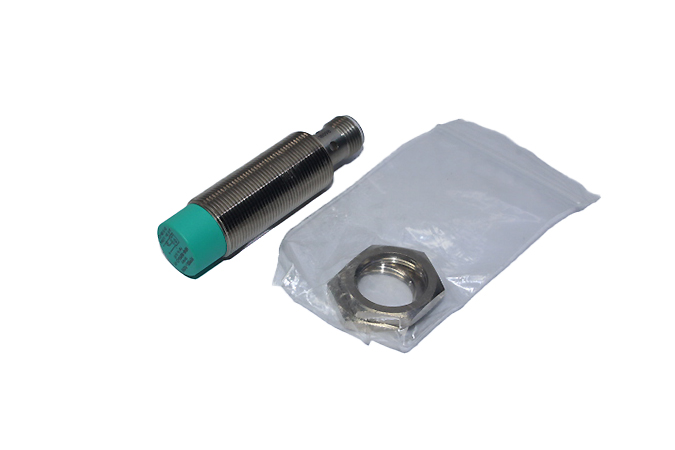

PEPPERL+FUCHS NBN8-18GM50-E2-V1 Inductive sensor 084197
We are NOT an authorized distributor for PEPPERL+FUCHS
- ManufacturerPEPPERL+FUCHS
- ModelNBN8-18GM50-E2-V1
- SKU051132
53 $
2 in stock
Description
Manufacturer: PEPPERL+FUCHS
Model: NBN8-18GM50-E2-V1
Type: Inductive sensor
Part No: 084197
Output type: PNP
Rated operating distance: 8 mm
Installation: non-flush
Output polarity: DC
Assured operating distance: 0 … 6.48 mm
Operating voltage: 5 … 36 V
Switching frequency: 0 … 1650 Hz
Operating current: 0 … 200 mA
Protection class: II
Ambient temperature: -40 … 85 °C (-40 … 185 °F)
Degree of protection: IP65 / IP66 / IP67 / IP68
