Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | PEPPERL+FUCHS |
| Model | |
| Part Number | 087739 |
| Condition |

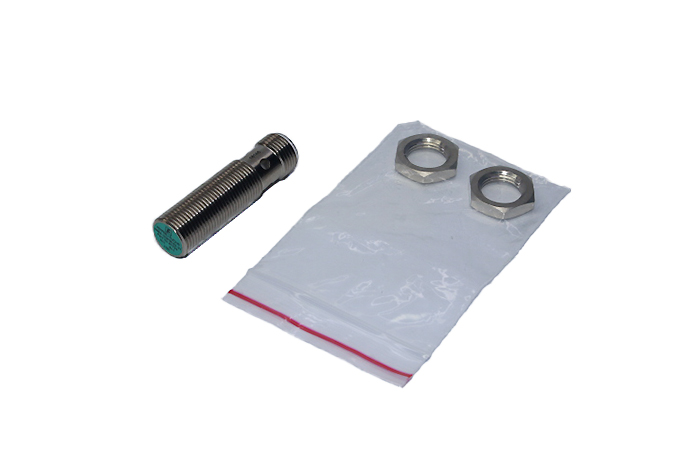

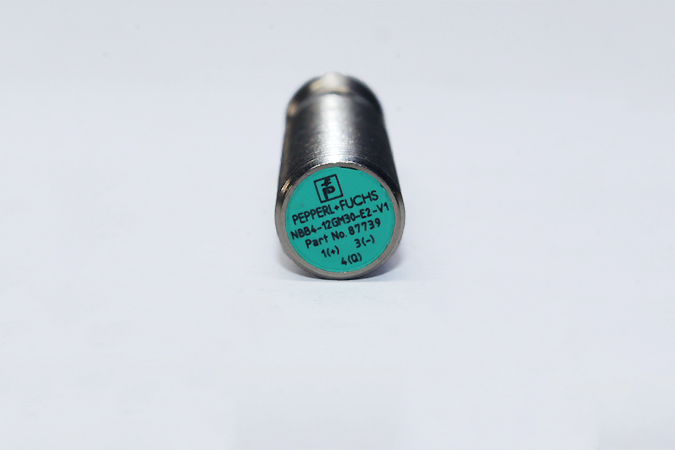

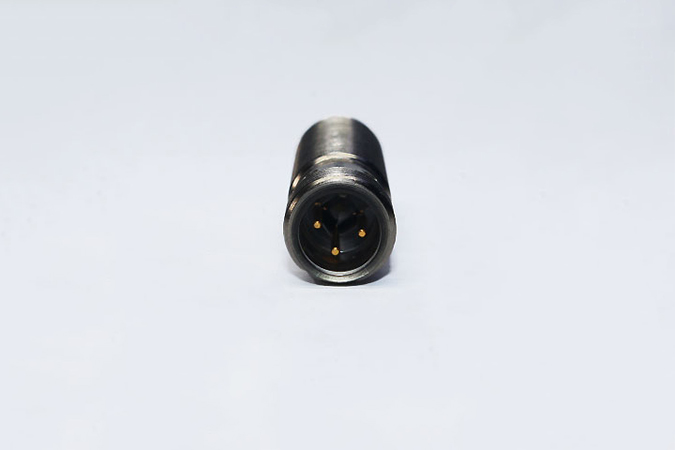

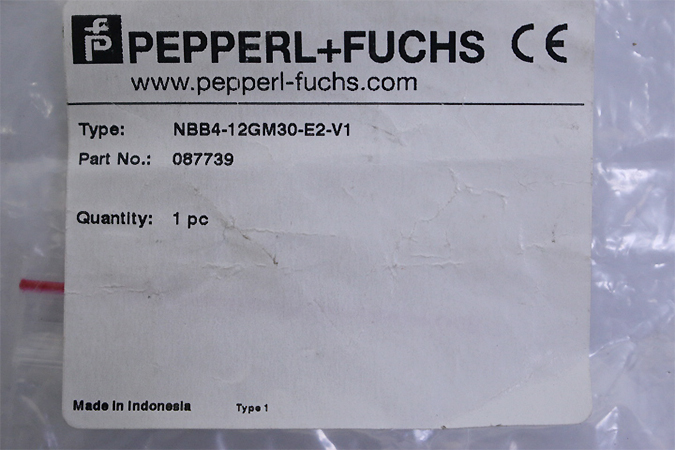

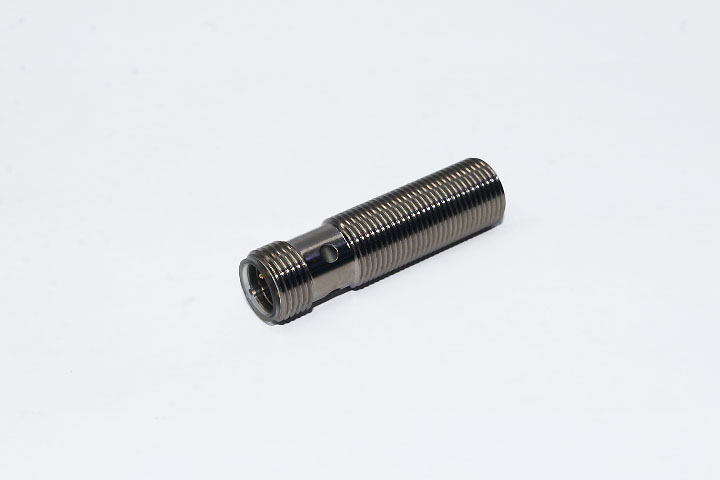

PEPPERL+FUCHS NBB4-12GM30-E2-V1 Inductive sensor 087739
We are NOT an authorized distributor for PEPPERL+FUCHS
- ManufacturerPEPPERL+FUCHS
- ModelNBB4-12GM30-E2-V1
- SKU051133
21 $
3 in stock
Description
Manufacturer: PEPPERL+FUCHS
Model: NBB4-12GM30-E2-V1
Type: Inductive sensor
Part No: 087793
Output type: PNP
Rated operating distance: 4 mm
Installation: flush
Output polarity: DC
Assured operating distance: 0 … 3.24 mm
Operating voltage: 5 … 36 V
Switching frequency: 0 … 2550 Hz
Operating current: 0 … 200 mA
Protection class: II
Ambient temperature: -40 … 85 °C (-40 … 185 °F)
Degree of protection: IP65 / IP66 / IP67 / IP68
