Specifications
| Weight | 0.150 kg |
|---|---|
| Manufacturer | PEPPERL+FUCHS |
| Model | |
| Part Number | 85974 |
| Condition |

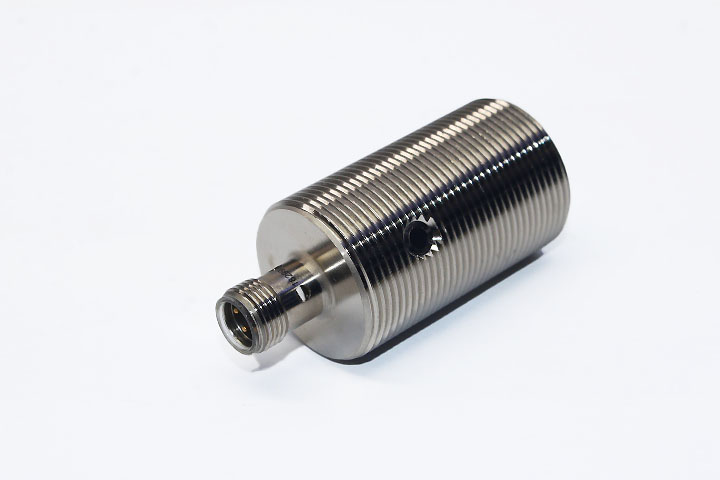

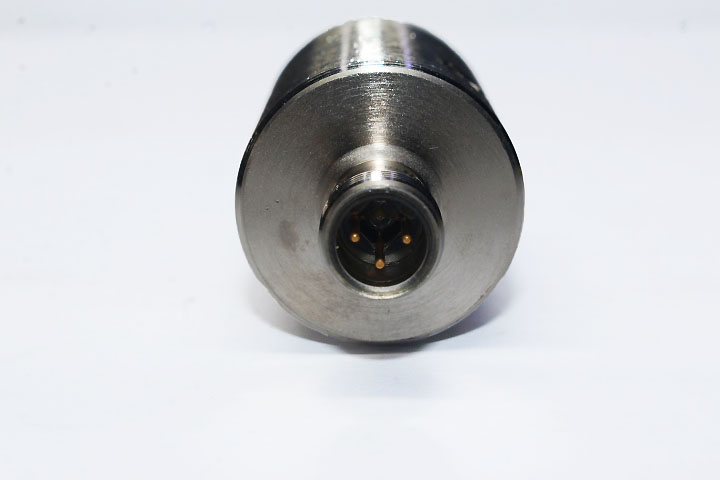

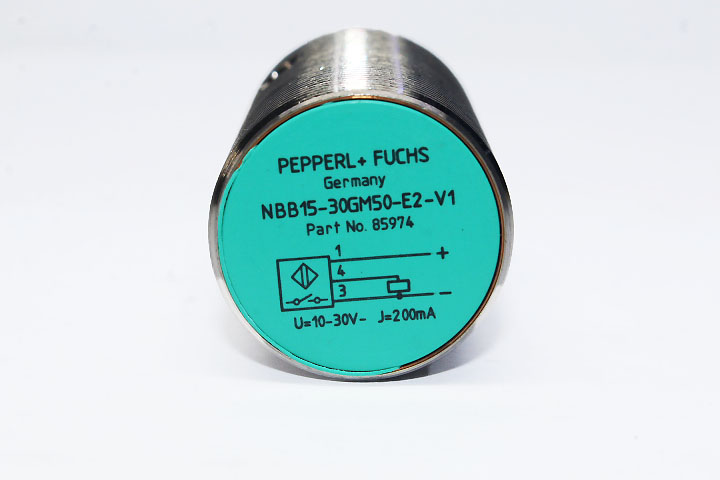

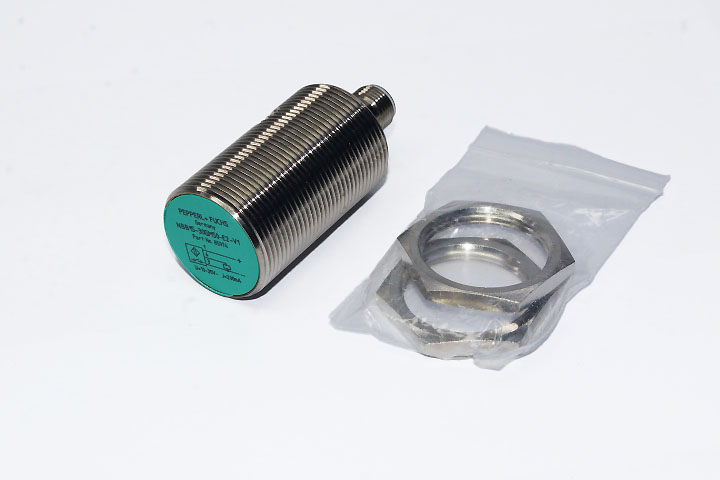

PEPPERL+FUCHS NBB15-30GM50-E2-V1 Inductive sensor 85974
We are NOT an authorized distributor for PEPPERL+FUCHS
- ManufacturerPEPPERL+FUCHS
- ModelNBB15-30GM50-E2-V1
- SKU051129
27 $
2 in stock
Description
Manufacturer: PEPPERL & FUCHS
Model: NBB15-30GM50-E2-V1
Type: Inductive sensor
Part No.: 085974
Output type: PNP
Rated operating distance: 15 mm
Installation: flush
Assured operating distance: 0 … 12.15 mm
Operating voltage: 5 … 36 V
Switching frequency: 0 … 550 Hz
Operating current: 0 … 200 mA
Protection class: II
Ambient temperature: -40 … 85 °C (-40 … 185 °F)
Degree of protection: IP65 / IP66 / IP67 / IP68
