Specifications
| Weight | 0.400 kg |
|---|---|
| Manufacturer | PEPPERL+FUCHS |
| Model | |
| Part Number | 559667 |
| Condition |

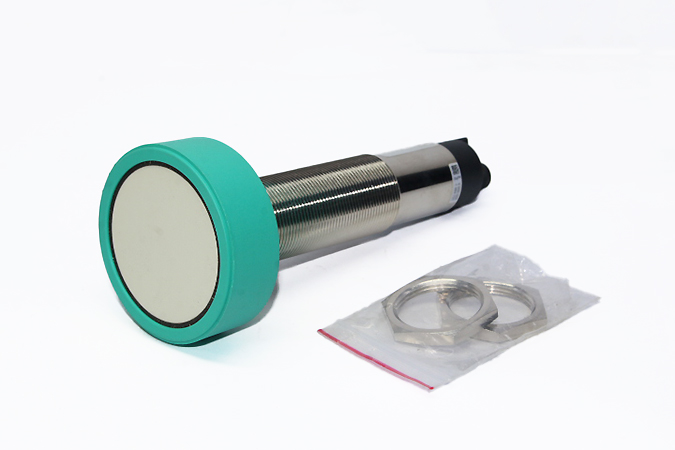

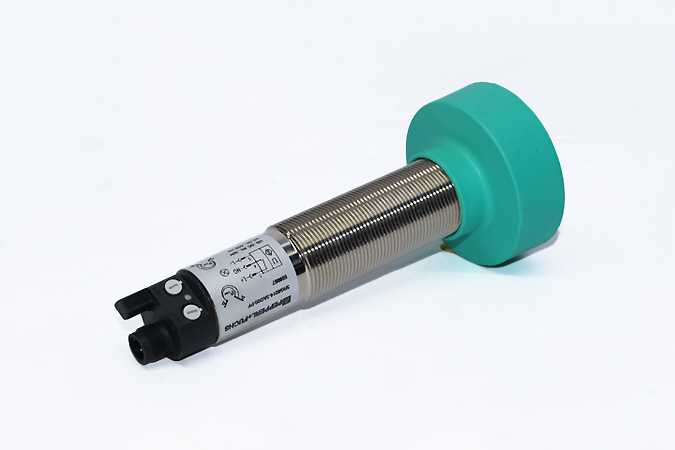

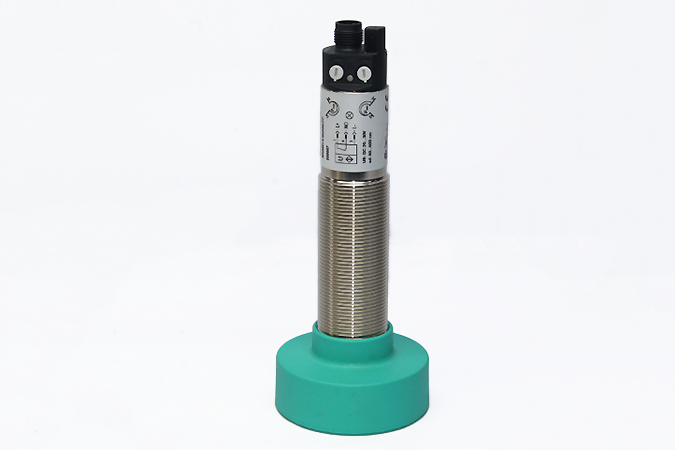

PEPPERL+FUCHS 3RG6014-3AD00-PF Ultrasonic sensor 559667
We are NOT an authorized distributor for PEPPERL+FUCHS
- ManufacturerPEPPERL+FUCHS
- Model3RG6014-3AD00-PF
- SKU051163
394 $
1 in stock
Description
Manufacturer: PEPPERL+FUCHS
Type: Ultrasonic sensor
Model: 3RG6014-3AD00-PF
Part No: 559667
Sensing range : 600 … 6000 mm
Focusing range : 600 … 6000 mm
Standard target : 100 x 100 mm
Repeat accuracy : +/- 9 mm
Switching hysteresis : 60 mm
Rated ultrasonic frequency: 80 kHz
Rated operational voltage: 24 V DC
Operating voltage range: 12 … 30 V DC incl. ripple content
Frequency of operating cycles: 1 Hz
Response time: 400 ms
Ambient temperature: -25 … +70 Cel
