Specifications
| Weight | 0.400 kg |
|---|---|
| Manufacturer | LEUZE |
| Model | |
| Part Number | 50025201 |
| Condition |

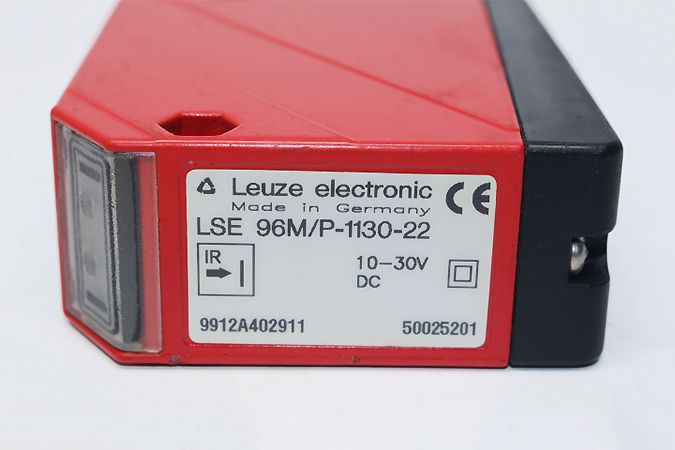

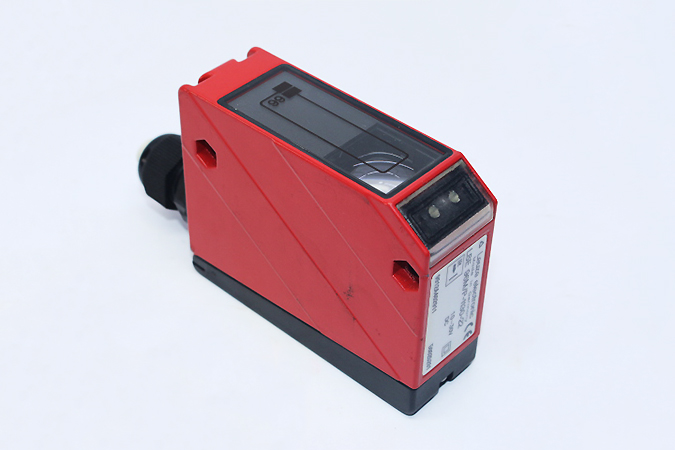

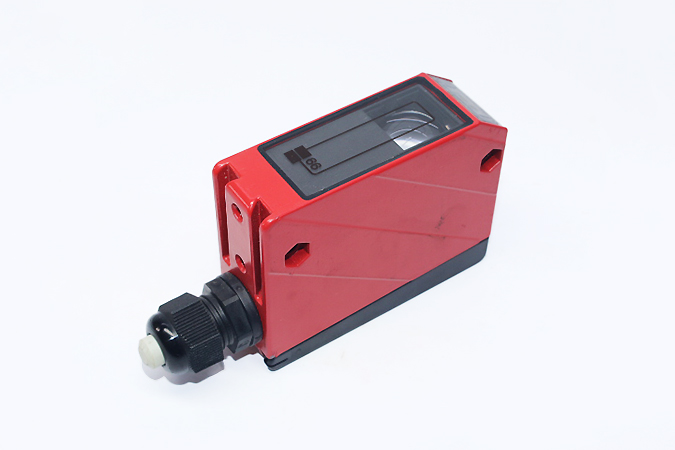

Leuze LSE 96M/P-1130-22 Throughbeam photoelectric sensor receiver 50025201
We are NOT an authorized distributor for LEUZE
- ManufacturerLEUZE
- ModelLSE 96M/P-1130-22
- SKU050899
158 $
3 in stock
Description
Manufacturer: Leuze
Model: LSE 96M/P-1130-22
Type: Through beam photoelectric sensor receiver
Part No: 50025201
Device type: Receiver
Operating range: Guaranteed operating range
Operating range limit: Typical operating range
Supply voltage UB: 10 … 30 V, DC
Residual ripple: 0 … 15 %, From UB
Open-circuit current: 0 … 50 mA
Number of digital: switching outputs 2 Piece(s)
Switching element: Transistor, PNP
Switching principle: Light switching
Switching element: Transistor, PNP
Switching principle: Light switching
Function Warning: output
Switching frequency: 500 Hz
Type of connection: Terminal
No. of pins: 4 -pin
Dimension (W x H x L): 30 mm x 90 mm x 70 mm
Housing material: Metal
