Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | OJPGFPKG/FO/AS |
| Condition |

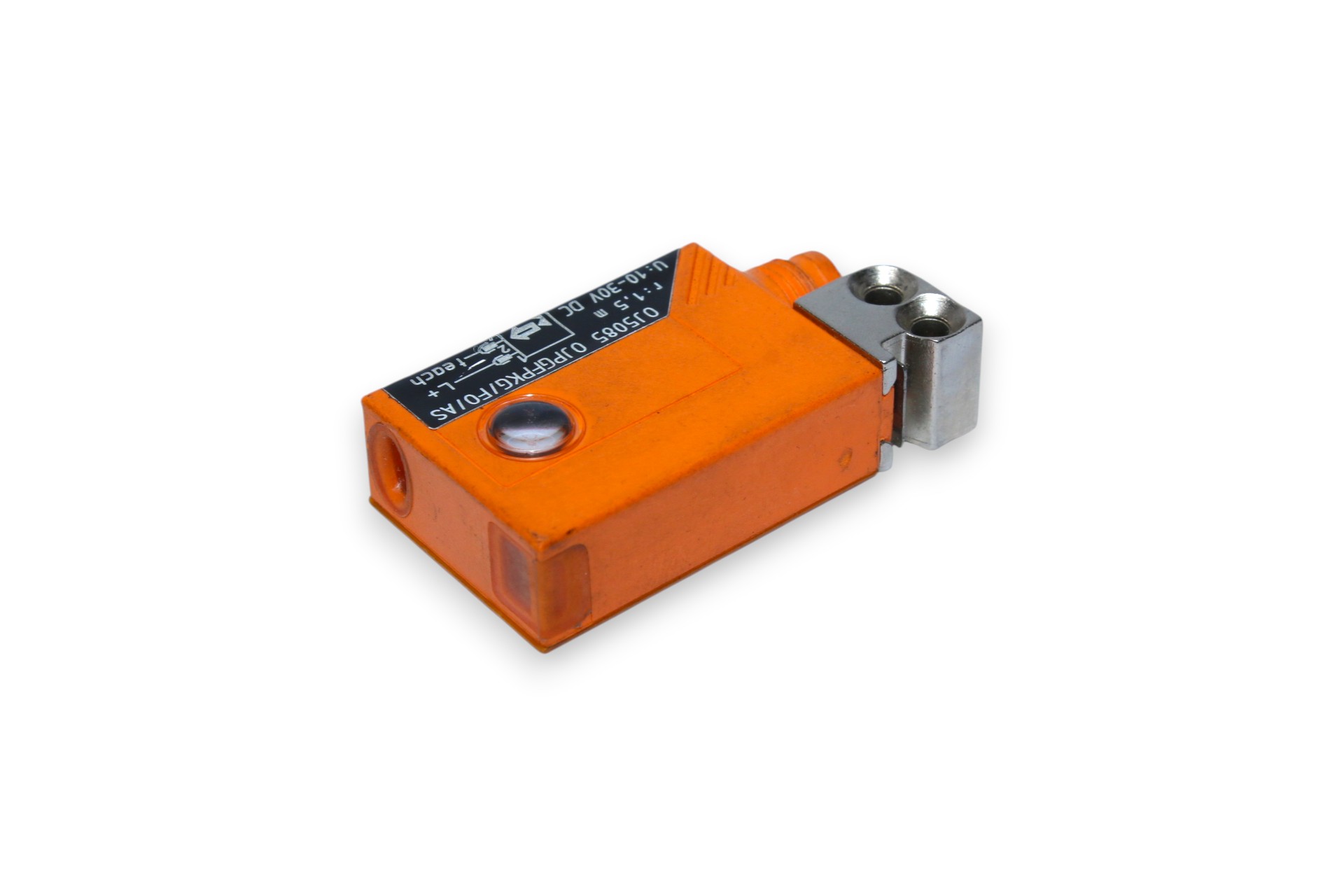

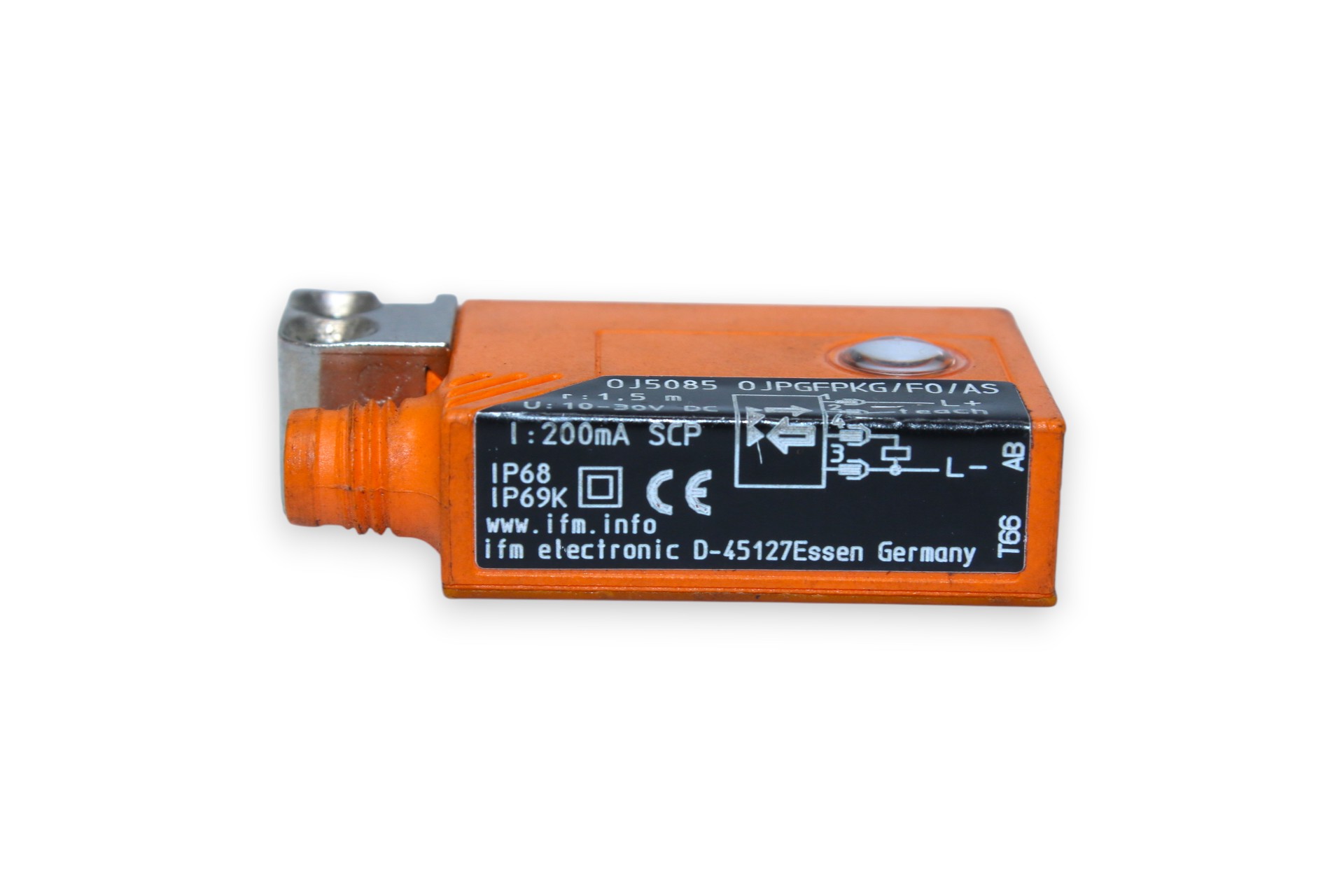

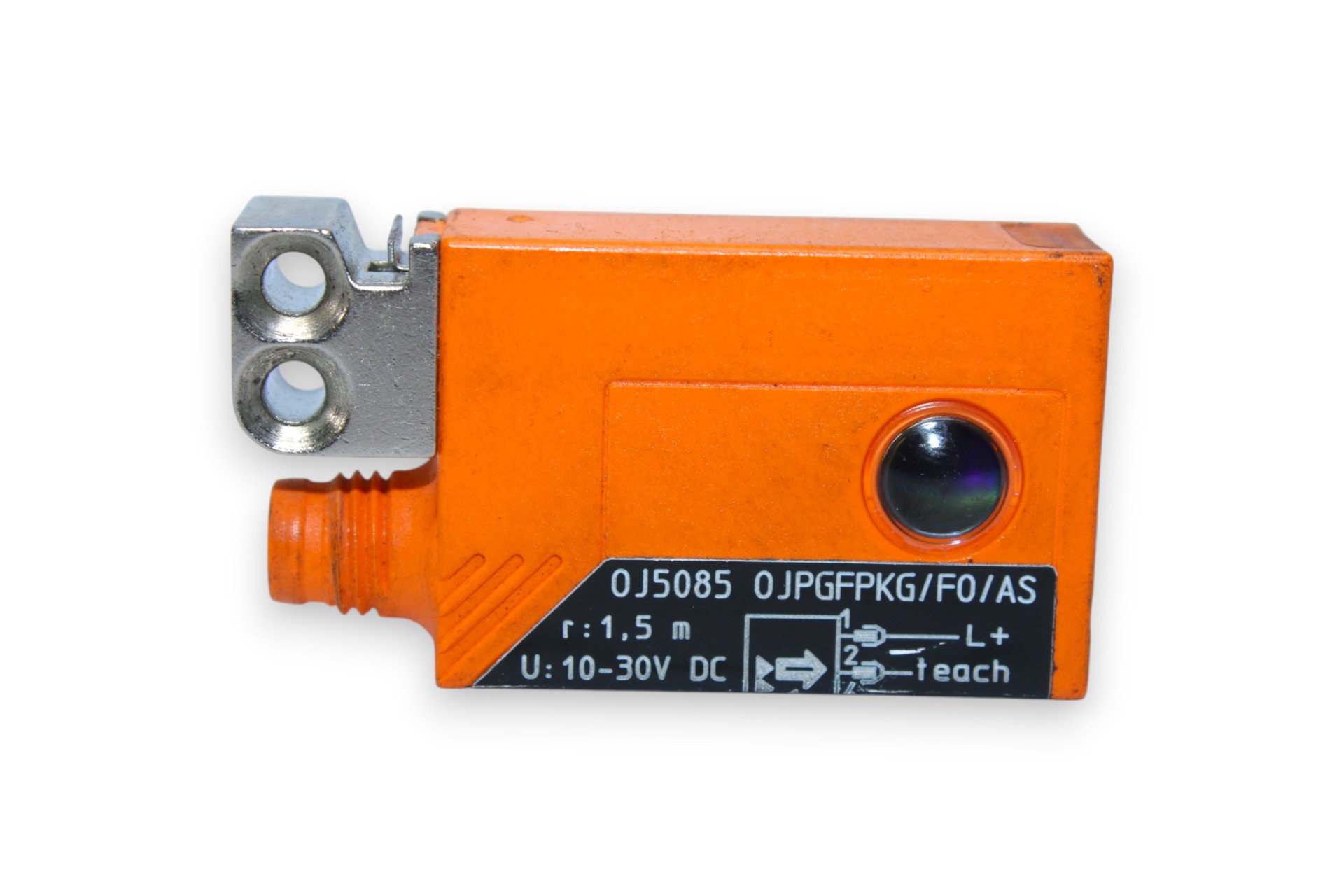

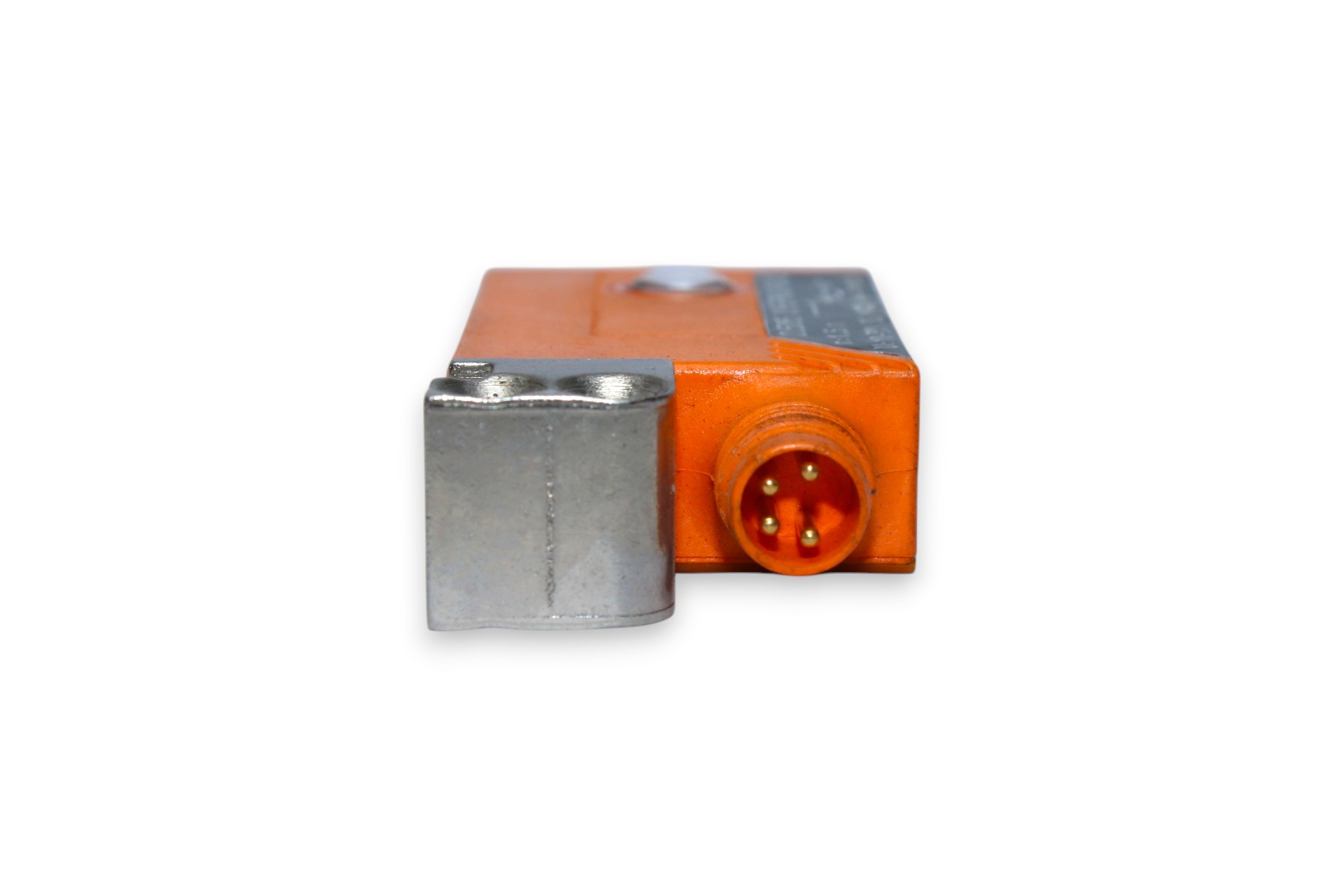

IFM OJ5085 Retro-reflective Sensor OJPGFPKG/FO/AS
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelOJ5085
- SKU066572
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: IFM Electronic
Type: Retro-reflective Sensor (Transparent Object Detection)
Model: OJ5085
Part No.: OJPGFPKG/FO/AS
HOUSING: Rectangular
FUNCTION PRINCIPLE: Retro-reflective Sensor
SPECIAL FEATURE: Polarisation Filter
TYPE OF LIGHT: Red Light (660 nm)
OPERATING VOLTAGE: 10…30 V DC
CURRENT CONSUMPTION: < 22 mA
PROTECTION CLASS: III
OUTPUT DESIGN: PNP
OUTPUT FUNCTION: Light-on/Dark-on Mode (Programmable)
MAX. VOLTAGE DROP (DC): 2.5 V
PERMANENT CURRENT RATING: 200 mA
SWITCHING FREQUENCY: 2000 Hz
SHORT-CIRCUIT PROTECTION: Yes (Pulsed)
OVERLOAD PROTECTION: Yes
DETECTION RANGE: 0.2…1.5 M (with Prismatic Reflector 50 x 50 mm E20722)
RANGE ADJUSTABLE: Yes
MAX. LIGHT SPOT DIAMETER: 64 MM (at max. range)
POLARISATION FILTER: Yes
AMBIENT TEMPERATURE: 0…60 °C
PROTECTION RATING: IP67
STANDARDS / APPROVALS: EN 60947-5-2
WEIGHT: 27.4 g
DIMENSIONS: 35 x 24 x 11 MM
MATERIALS: Housing: ABS / Fixture: Diecast Zinc / LED Window: SEPS / Pushbutton: SEPS
LENS MATERIAL: Glass
LENS ALIGNMENT: Front Lens
