Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | OJB-FPKG/FO/0,15M/US |
| Condition |

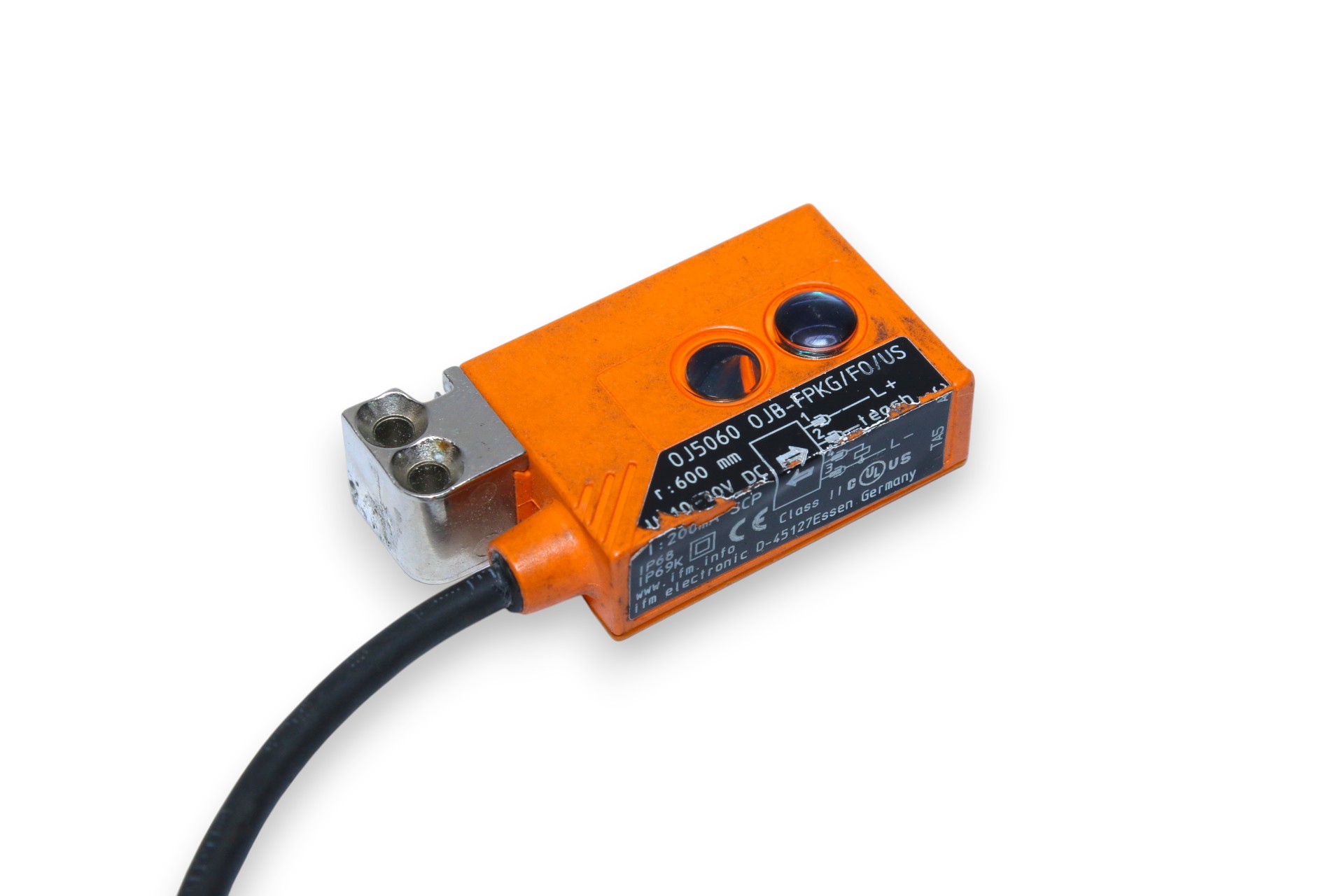

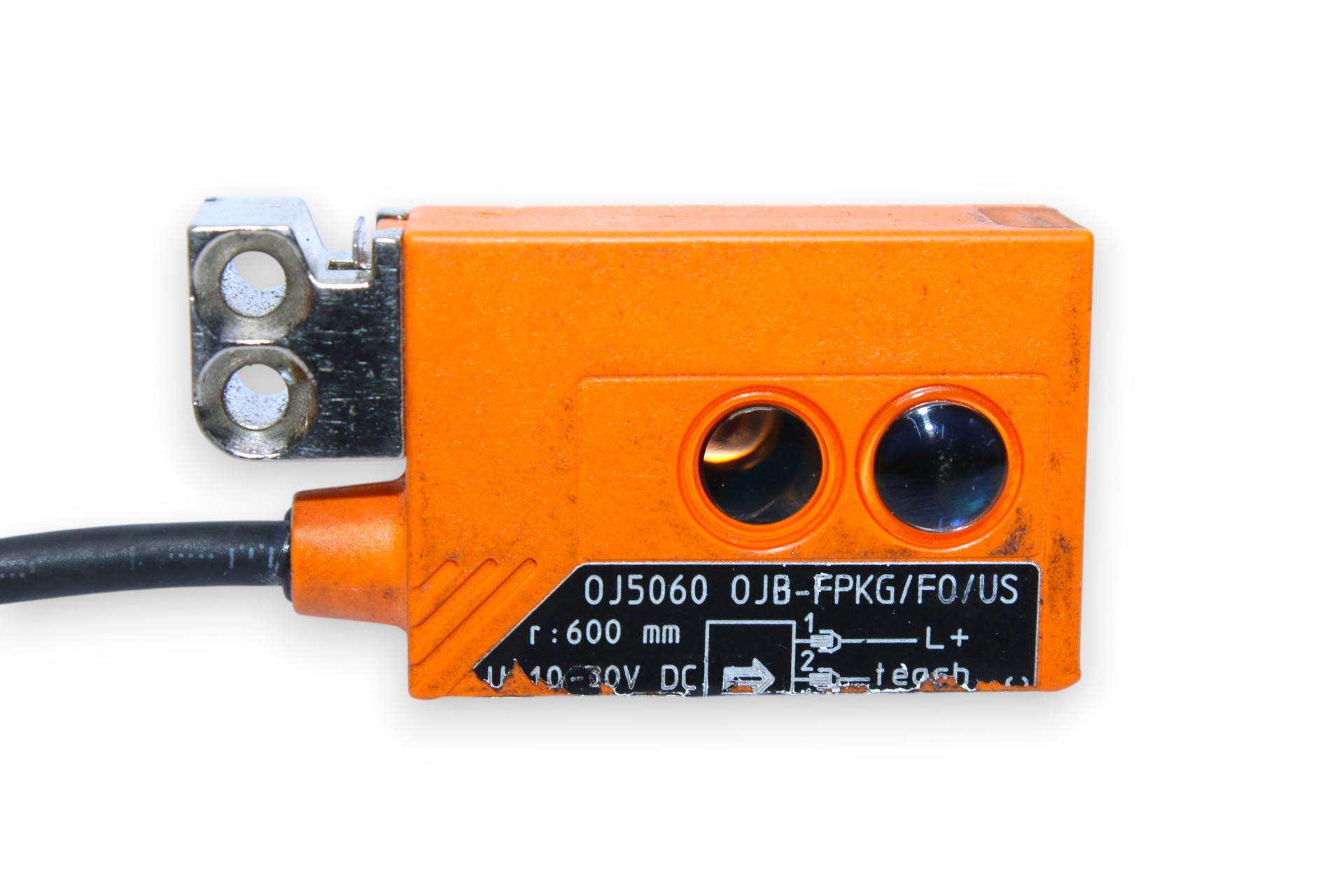

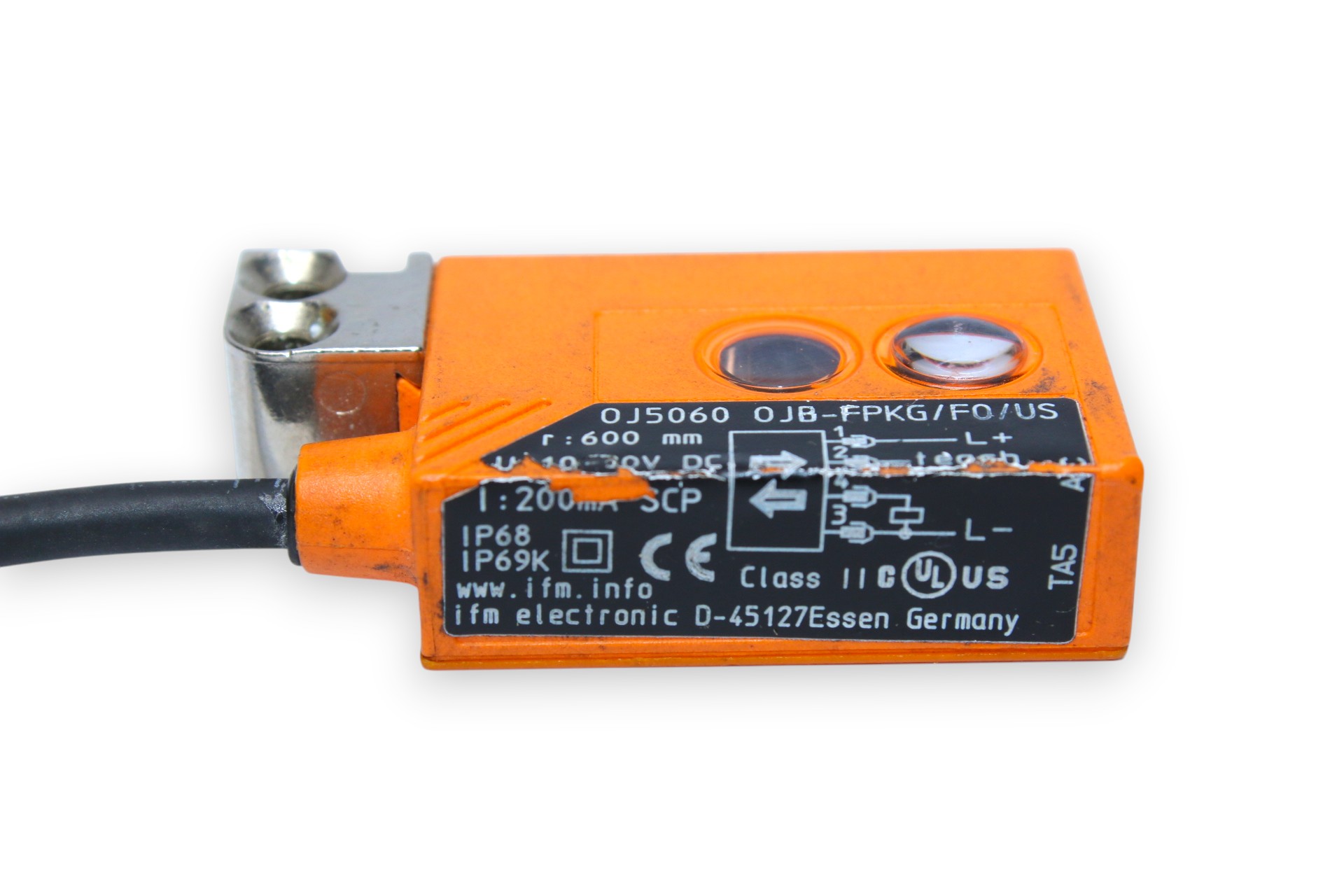

IFM OJ5060 Diffuse Reflection Sensor OJB-FPKG/FO/0,15M/US
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelOJ5060
- SKU066570
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: IFM Electronic
Type: Diffuse Reflection Sensor
Model: OJ5060
Part No.: OJB-FPKG/FO/0,15M/US
HOUSING: Rectangular
FUNCTION PRINCIPLE: Diffuse Reflection Sensor
SPECIAL FEATURE: Gold-Plated Contacts
OPERATING VOLTAGE: 10…30 V DC
CURRENT CONSUMPTION: < 22 mA
PROTECTION CLASS: III
OUTPUT DESIGN: PNP
OUTPUT FUNCTION: Light-on/Dark-on Mode (Programmable)
MAX. VOLTAGE DROP (DC): 2.5 V
PERMANENT CURRENT RATING: 200 mA
SWITCHING FREQUENCY: 2000 Hz
SHORT-CIRCUIT PROTECTION: Yes (Pulsed)
RANGE: 1…600 MM (White Paper 200 x 200 MM, 90% remission)
RANGE ADJUSTABLE: Yes
MAX. LIGHT SPOT DIAMETER: 60 MM (at max. range)
AMBIENT TEMPERATURE: -25…60 °C
PROTECTION RATING: IP67
STANDARDS / APPROVALS: EN 60947-5-2
