Specifications
| Weight | 0.200 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Condition |

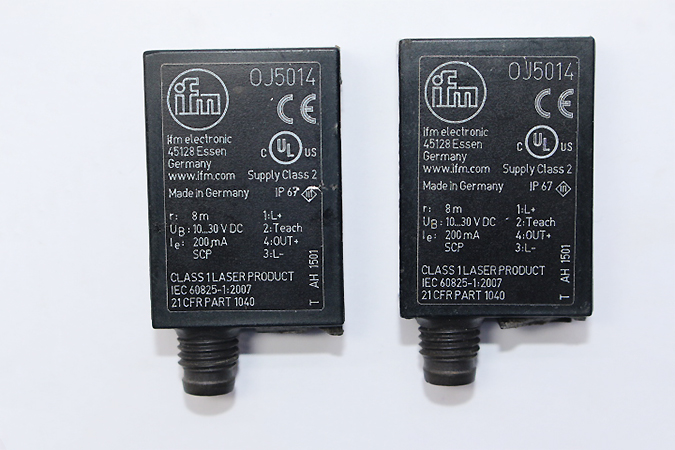

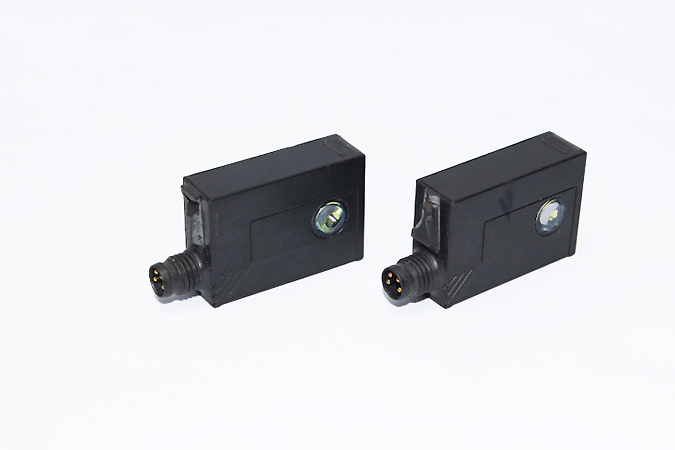

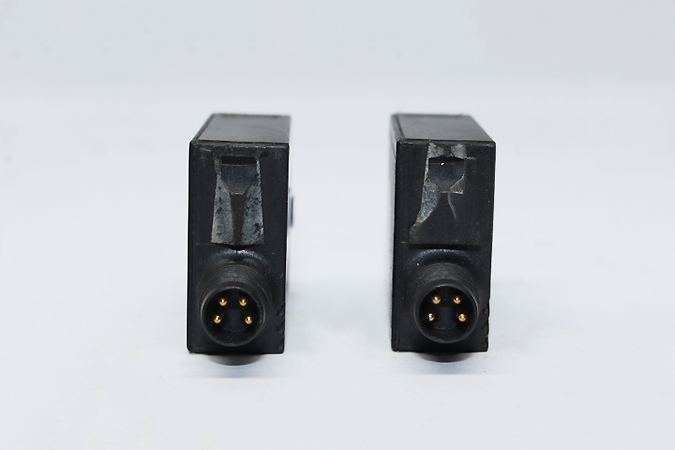

IFM OJ5014 Retro-reflective laser sensor OJPLFPKG/FO/AS
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIFM OJ5014 Retro-reflective laser sensor OJPLFPKG/FO/AS
- SKU050724
74 $
2 in stock
Description
Manufacturer: IFM
Model: OJ5014
Type: Retro-reflective laser sensor
Part No: OJPLFPKG/FO/AS
Type of light: red light
Laser protection class: 1
Housing: rectangular
Operating voltage [V]: 10…30 DC
Current consumption [mA]: < 15
Protection class: III
Reverse polarity protection: yes
Type of light: red light
Electrical design: PNP
Output function: light-on/dark-on mode; (programmable)
Switching frequency DC [Hz]: 2000
Range referred to prismatic reflector [m]: 8; (Prismatic reflector 50 x 50 mm E20722)
Range adjustable: yes
Diameter of the smallest detectable object [mm]: 2.5; (0,1 m; 2,5 m: 4; 5 m: 8)
Max. light spot diameter [mm]: 12
Light spot dimensions refer to: at maximum range
Polarisation filter available: yes
Ambient temperature [°C]: -10…60
Protection: IP 67
