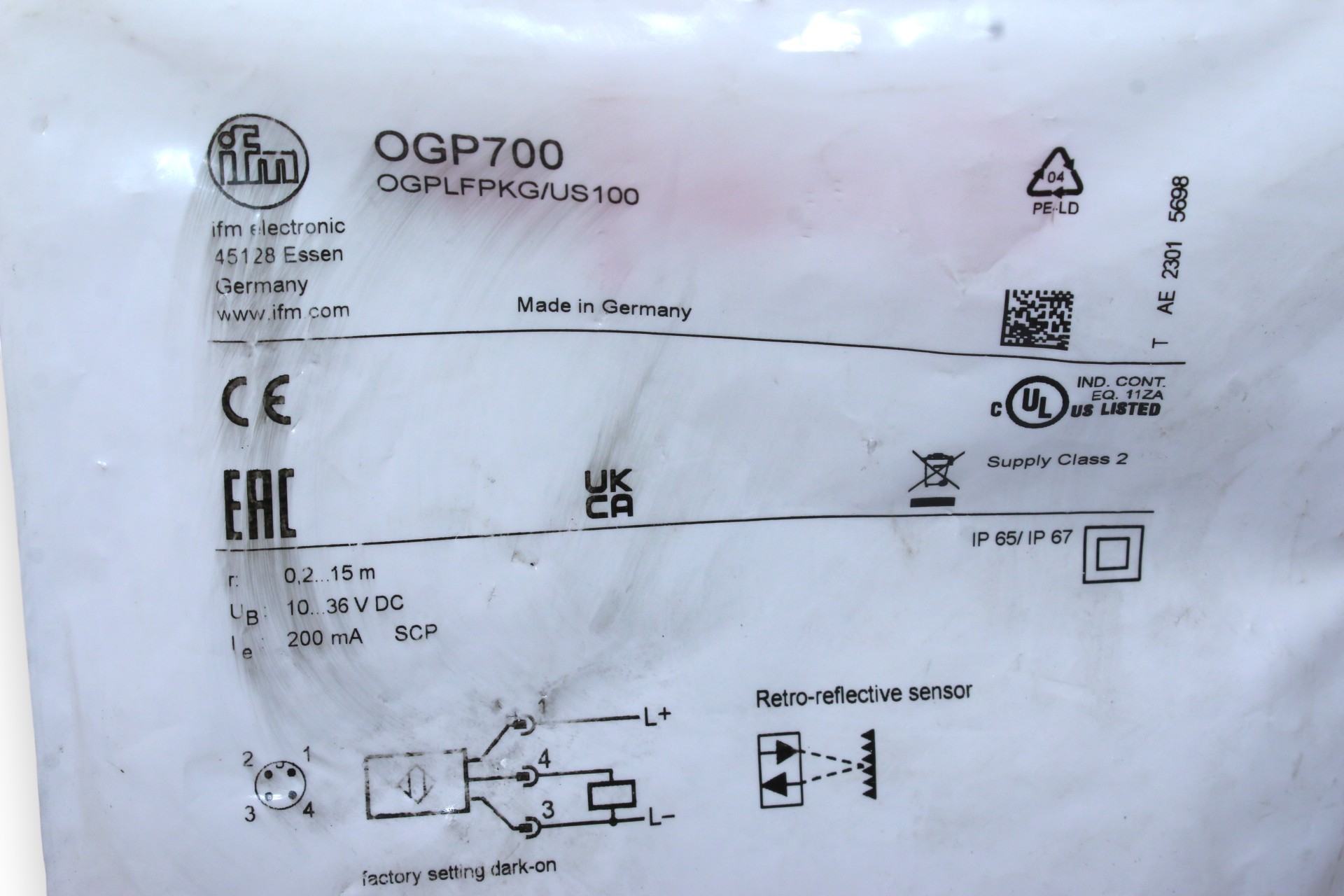

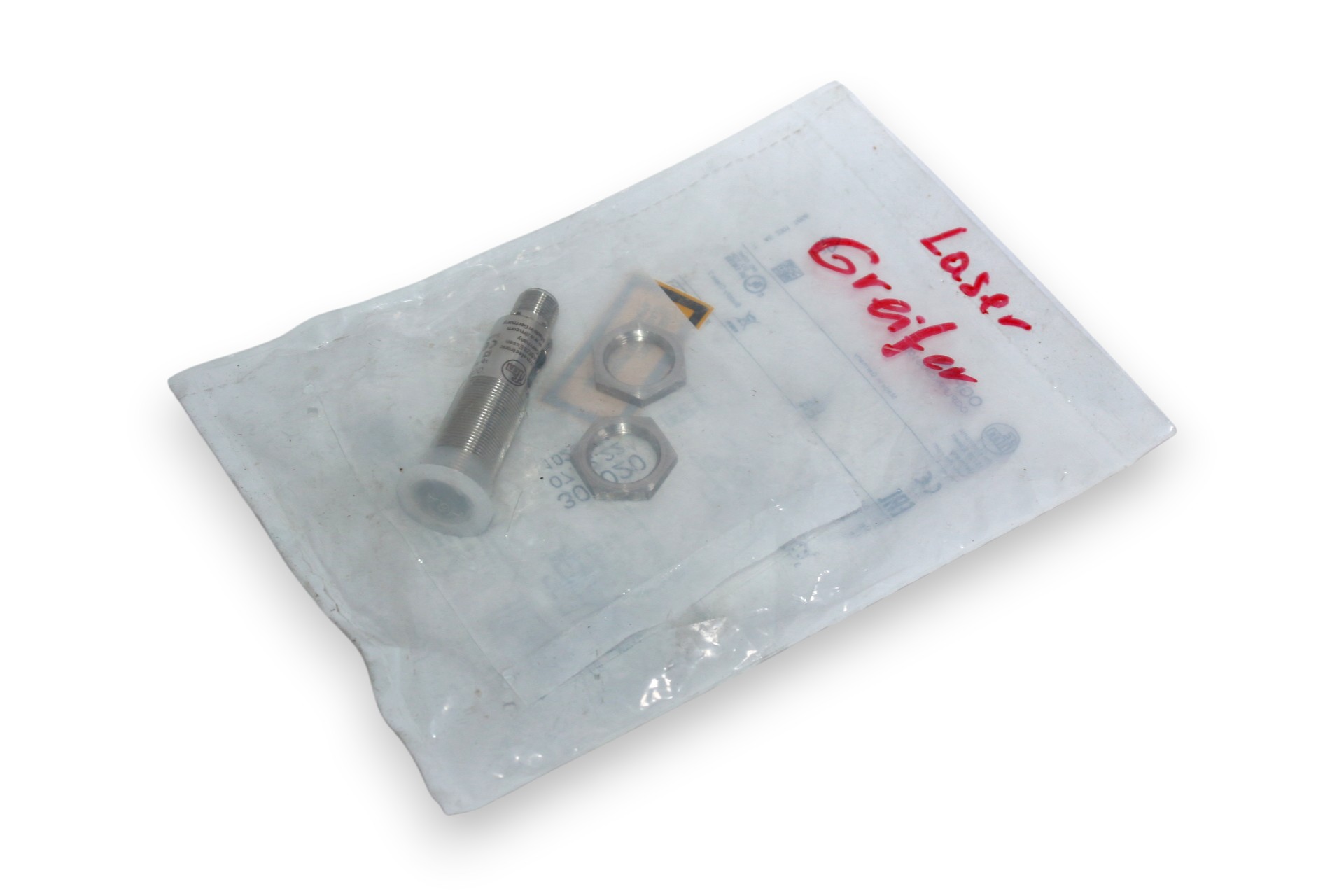

IFM OGP700 Retro-Reflective Laser Sensor OGPLFPKG/US100

Manufacturer: IFM Electronic
Type: Retro-Reflective Laser Sensor
Model: OGP700
Part No.: OGPLFPKG/US100

LASER PROTECTION CLASS: 1
FUNCTION PRINCIPLE: Retro-reflective sensor
SPECIAL FEATURE: Polarisation filter
TYPE OF LIGHT: Red Light
WAVELENGTH: 655 nm
TYPICAL LIFETIME: 50,000 h

ELECTRICAL DESIGN: PNP
OUTPUT FUNCTION: Light-On / Dark-On mode (programmable)
OPERATING VOLTAGE: 10–36 V DC
CURRENT CONSUMPTION: 15 mA (at 24 V)
MAX. VOLTAGE DROP SWITCHING OUTPUT DC: 2.5 V
PERMANENT CURRENT RATING OF SWITCHING OUTPUT DC: 200 mA
SWITCHING FREQUENCY DC: 2000 Hz
SHORT-CIRCUIT PROTECTION: Yes, pulsed
OVERLOAD PROTECTION: Yes
REVERSE POLARITY PROTECTION: Yes

DETECTION RANGE (Prismatic Reflector Ø 80 E20005): 0.2–15 m
FACTORY SETTING: Dark-On Mode
RANGE ADJUSTABLE: Yes
DIAMETER OF SMALLEST DETECTABLE OBJECT: 3 MM (1 m); 20 MM (15 m)
MAX. LIGHT SPOT DIAMETER: 78 MM

HOUSING: Threaded type, stainless steel (316L / 1.4404)

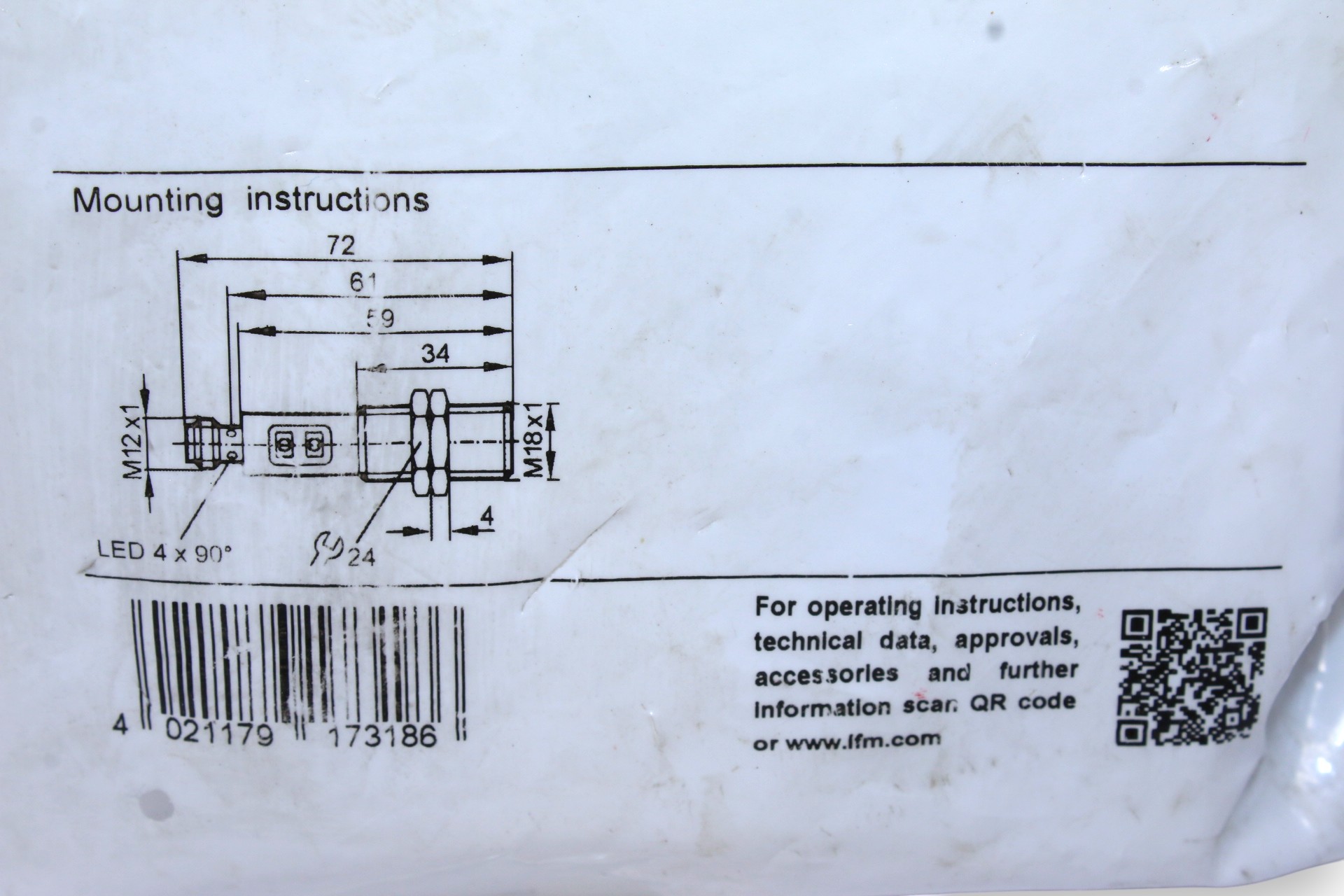

DIMENSIONS: M18 x 1 / L = 72 MM
PROTECTION RATING: IP65 / IP67
AMBIENT TEMPERATURE: -10…60 °C
